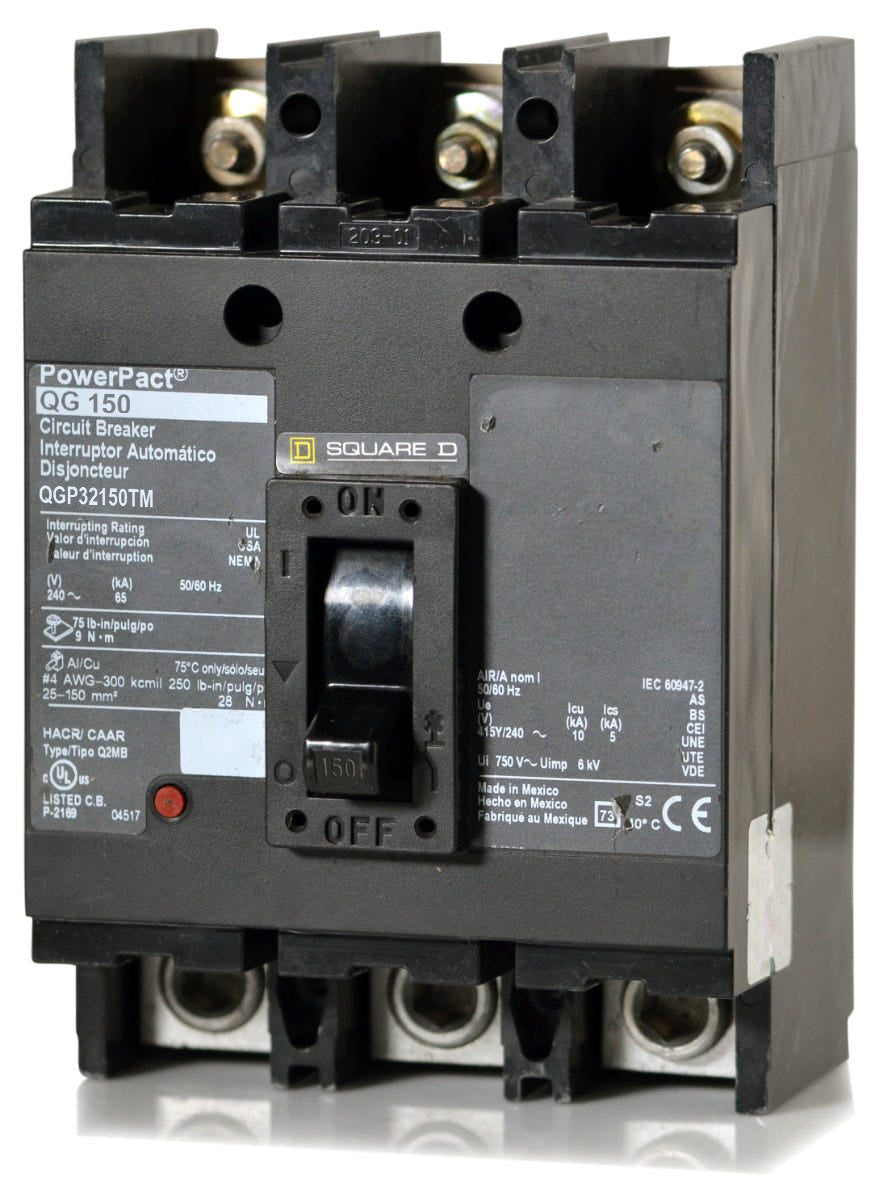

Square D QGP32150TM Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Square D
QGP32150TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP32150TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGP32150TM - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGP32150TM - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGP32150TM |
| Series | QGP |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Mercury Free, PVC Free |
Quantity
Square D QGP32150TM - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGP |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Mercury Free, PVC Free |
Similar Items
150A 2 Pole Molded Case Circuit Breaker

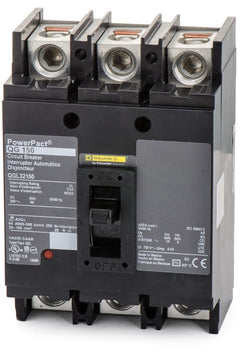

150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable long-time and instantaneous (LI) fault clearing, this 150A Q-Frame MCCB offers robust thermal-magnetic protection for commercial and industrial distribution systems. Built for secure installation, this bolt-on breaker mounts into Square D Meter-Pak metering centers. It features standard lug terminals for reliable wire connections. Delivering 65 kAIC at 240VAC, the QGP32150TM ensures superior safety and is HACR rated for specialized HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP32150TM |
| Series | QGP |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
7 answersWhat equipment is the QGP32150TM designed to fit?
This 3-pole breaker is specifically engineered for use in Square D EZ Meter-Pak metering centers. It acts as a tenant main breaker for multi-unit residential or commercial metering applications.
Why choose the QGP32150TM over a QBP or QDP breaker?
The QGP model provides a 65kAIC short-circuit interrupting rating at 240VAC. This is significantly higher than the 10kAIC rating of the QBP series or the 25kAIC rating of the QDP series, making it necessary for commercial services with high available fault currents.
What type of terminal connections does the QGP32150TM feature?
The P in the catalog number indicates it has lugs on the OFF (load) end only. The ON (line) end features mounting studs with terminal nuts for direct bus connection in metering centers. The factory-installed load lugs accept 4 AWG to 300 kcmil aluminum or copper wire.
Is the QGP32150TM a suitable replacement for legacy Q2 breakers?
Yes, Schneider Electric designed the PowerPacT Q-Frame circuit breakers as direct replacements for the older Square D Q2 series devices. Ensure the 150A rating and 65kAIC capacity meet your current panel specifications before upgrading.
What does the LI trip function code mean for system safety?
The LI designation stands for Long-Time and Instantaneous trip functions. The long-time thermal element protects against gradual overloads, while the instantaneous magnetic element clears severe short circuits immediately to prevent fire hazards and equipment damage.
Can I install the QGP32150TM in an I-Line panelboard?
No. This is a unit-mount breaker with a bolt-on line connection. It does not feature the specialized plug-on jaw configuration required for mounting in Square D I-Line panelboards or switchboards.
Can the trip settings on the QGP32150TM be adjusted in the field?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The 150A continuous current rating and the instantaneous short-circuit pickup levels are factory calibrated and cannot be modified by the user.
