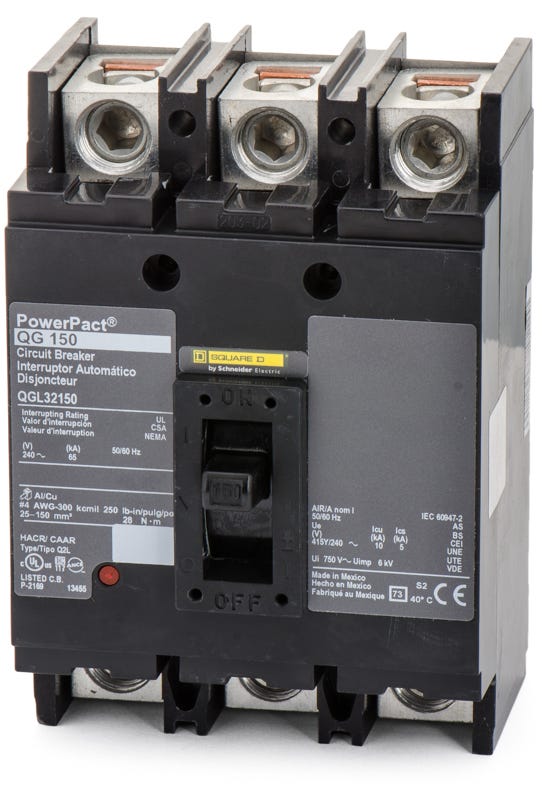

Square D QGL32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
QGL32150
Molded Case Circuit Breaker
Brand
Square D
SKU
QGL32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGL32150 |
| Series | QGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D QGL32150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGL32150 |
| Series | QGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Rated for 150 amps, the Square D QGL32150 is a 3-pole molded case circuit breaker designed for heavy-duty commercial and industrial applications. It utilizes thermal-magnetic trip technology to deliver fixed long-time and instantaneous (LI) protection. This unit-mount device integrates into Square D enclosures and switchboards, and acts as a direct substitute for discontinued Q23150 breakers. Part of the PowerPacT Q-Frame family, it offers a 65kAIC rating at 240VAC and includes lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL32150 |
| Series | QGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat type of panelboards or enclosures can the QGL32150 be installed in?
This Q-Frame breaker is designed for use in Square D NQ panelboards, typically functioning as a main breaker when paired with the correct adapter kit. It can also be installed in standalone Q-Frame enclosures for service entrance or sub-feed applications.
What is the difference between the QGL32150 and the QBL32150, QDL32150, or QJL32150?
These catalog numbers represent the same 150A, 3-pole Q-Frame breaker body but with different short-circuit interrupting ratings. The QGL model is rated for 65kA at 240V. The QBL is 10kA, QDL is 25kA, and QJL is 100kA. They share the same physical dimensions and mounting style.
How does the unit mount configuration work on this circuit breaker?
As a unit mount breaker, the QGL32150 does not plug onto a busbar or snap into place. It must be mechanically fastened to a back pan or mounting bracket and requires wire to be terminated at both the line and load side lugs.
Can I adjust the trip settings on the QGL32150?
No. This breaker uses a standard thermal-magnetic trip unit with fixed long-time and instantaneous trip points. It does not include adjustable dials for fine-tuning the trip curve.
Is the QGL32150 a direct replacement for obsolete Q2 Series breakers?
While PowerPacT Q-Frame breakers share similar dimensions with the legacy Q2 Series, installing a QGL32150 in an older NQOD panelboard specifically listed for Q2 frames may void the UL listing. Always verify enclosure labeling and consult an inspector before retrofitting.
Are the terminal lugs on the QGL32150 rated for both copper and aluminum wire?
Yes. The factory-installed lugs for the 150A Q-Frame breakers are dual-rated for either copper or aluminum conductors within the supported 4 AWG to 300 kcmil range.
