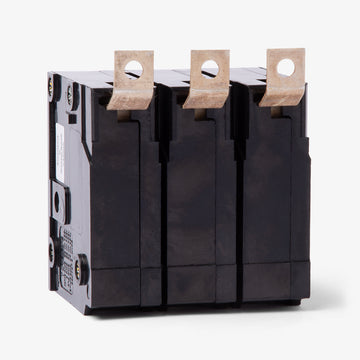

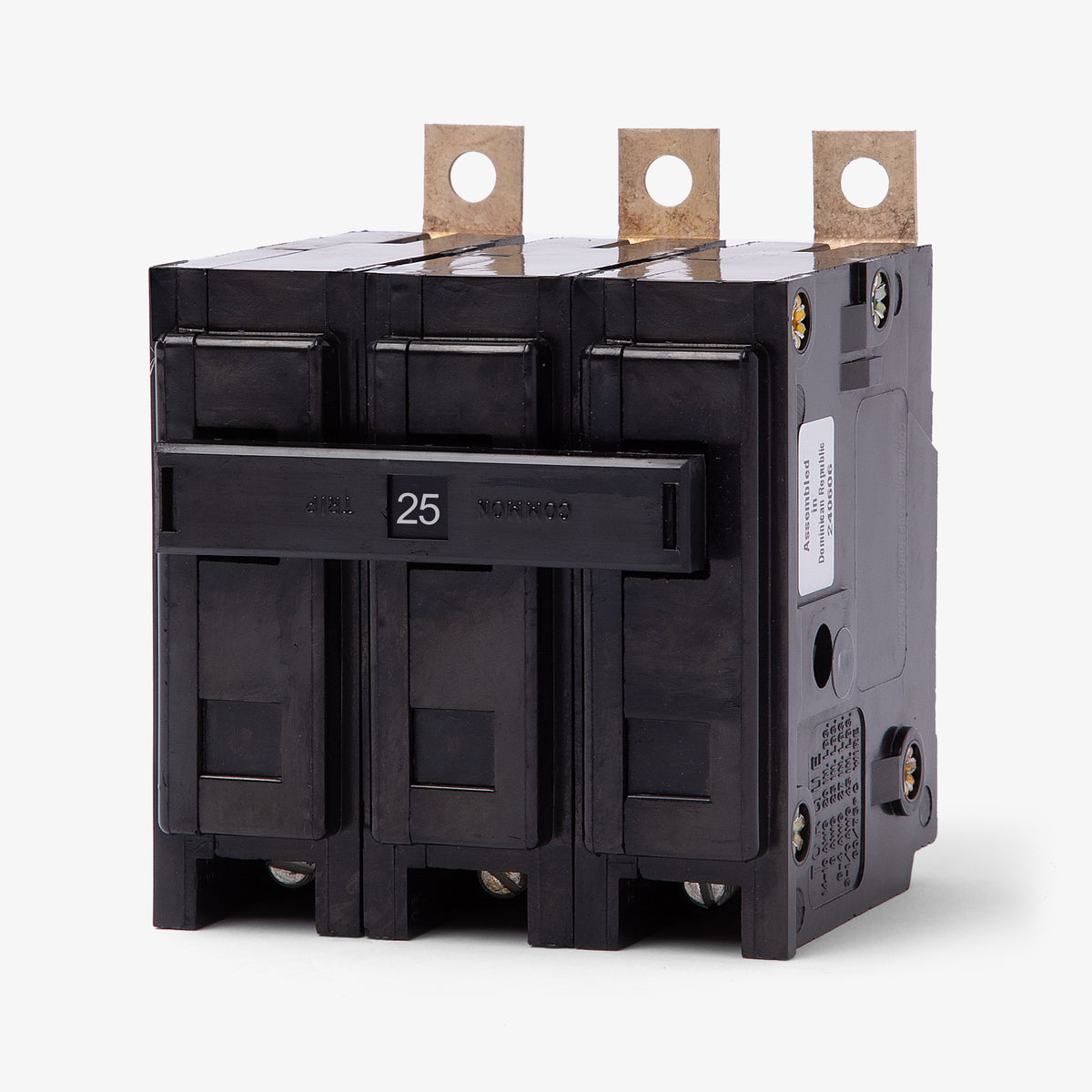

Eaton / Cutler-Hammer QBHW3025H Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3025H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3025H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3025H - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHW3020H
20A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3035H
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3015H
15A 3 Pole Miniature Circuit Breaker
Description
Built for demanding commercial environments, the Eaton QBHW3025H delivers precise thermal-magnetic overcurrent protection. This 25-amp miniature breaker ensures consistent performance across industrial applications. Designed for seamless integration, it bolts firmly into Eaton Pow-R-Line panelboards. The unit includes load side box lugs that accommodate 14-4 AWG wire for straightforward wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBHW |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhich panelboards accept the Eaton QBHW3025H circuit breaker?
The QBHW3025H is designed for Eaton Pow-R-Line panelboards, specifically models like the PRL1a and PRL1X. It is also backward compatible with legacy Cutler-Hammer and Westinghouse bolt-on panels that accept Quicklag series breakers.
Can I use an Eaton BAB series breaker instead of the QBHW3025H?
Yes, provided your system's available fault current allows it. Both series share the same physical footprint and fit the same Pow-R-Line panelboards. However, BAB breakers are rated for 10kAIC, whereas the QBHW series provides a higher 22kAIC interrupting rating.
What wire gauge is supported by the QBHW3025H terminals?

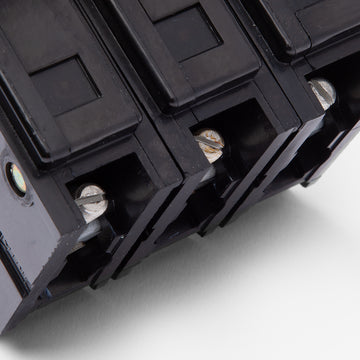

The load side box lugs on this breaker accept wire sizes ranging from 14 AWG to 4 AWG. Always torque the connections to the manufacturer specifications printed directly on the breaker label.
Is the QBHW3025H suitable for HVAC equipment?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified overcurrent protection.
Does the QBHW3025H snap into the panelboard?

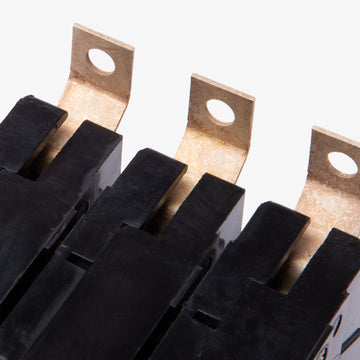

No, this is a bolt-on circuit breaker. It must be physically bolted to the panelboard busbar, which provides a secure, vibration-resistant connection commonly required in commercial and industrial environments.
