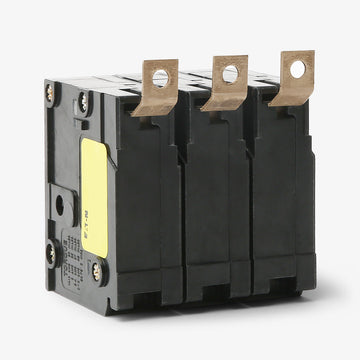

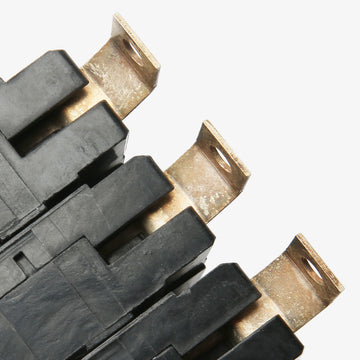

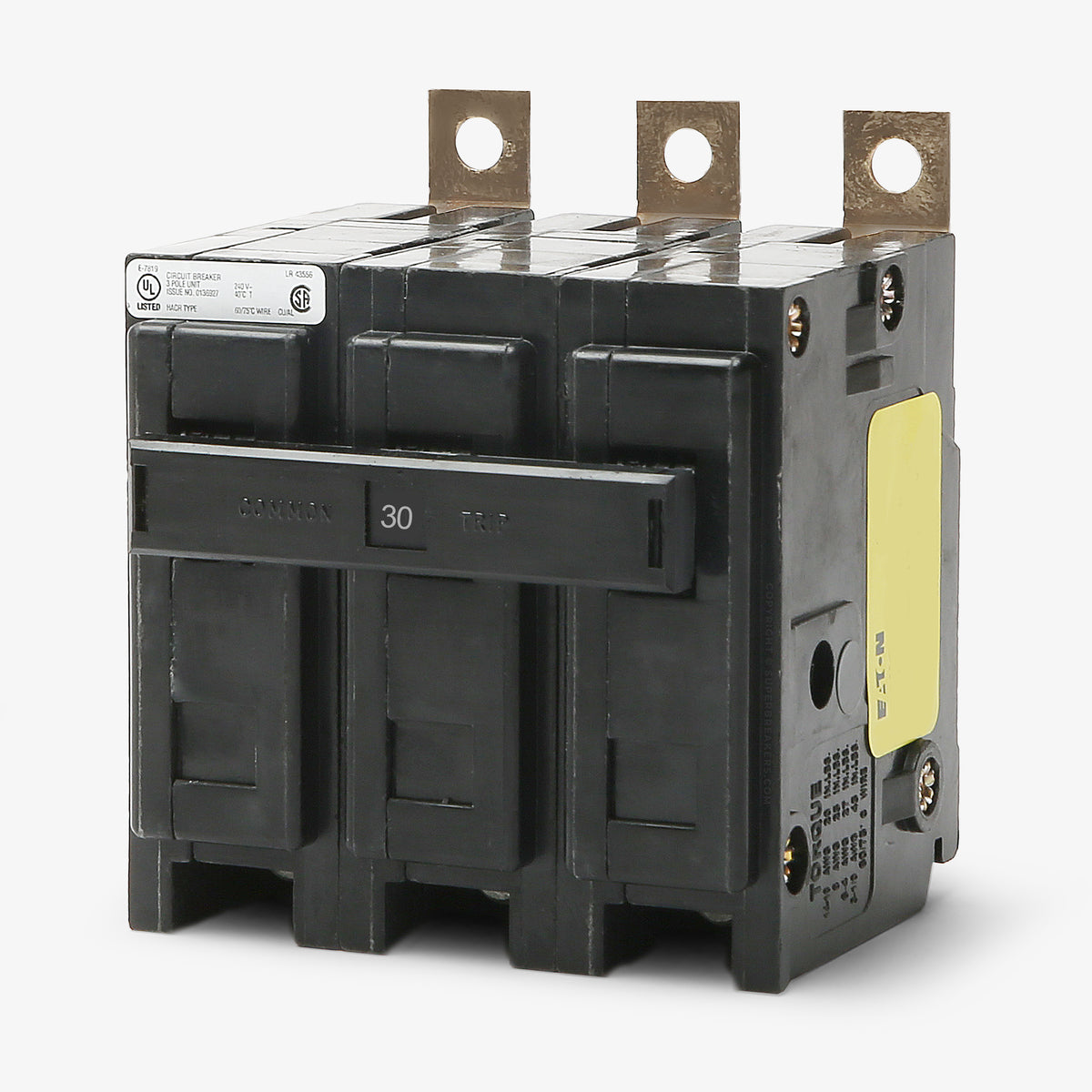

Eaton / Cutler-Hammer QBHW3030H Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3030H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3030H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3030H - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW3030H - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3030H |
| Series | QBHW |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW3030H - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3030H-R |
| Series | QBHW |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerQBHW3025H
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3040H
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3020H
20A 3 Pole Miniature Circuit Breaker
Description
Created for commercial electrical systems, the Eaton QBHW3030H is a 30-amp miniature circuit breaker. It utilizes advanced thermal-magnetic trip technology to prevent equipment damage from overloads. This three-pole device mounts securely into Eaton Pow-R-Line 1a and 2a panelboards using a standard bolt-on connection. The included box lugs accept 14-4 AWG copper or aluminum wiring. Operating at 240VAC, it boasts a 22 kAIC interrupt capacity and carries a strict HACR certification.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3030H |
| Series | QBHW |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Eaton BAB3030H and QBHW3030H breakers?
Both are 3-pole, 30-amp, bolt-on Quicklag miniature breakers. The difference is the short circuit interrupting capacity. The BAB3030H is rated at 10 kAIC, while the QBHW3030H has a higher rating of 22 kAIC at 240VAC.
Which panelboards accept the QBHW3030H breaker?
This bolt-on breaker mounts into modern Eaton Pow-R-Line 1a and 2a lighting panelboards. Because Eaton acquired Cutler-Hammer and Westinghouse, it is also a direct, UL-listed replacement for legacy Westinghouse and Cutler-Hammer Quicklag B frame bolt-on breakers.
Can the QBHW3030H be installed in a standard residential load center?
No. This breaker requires a commercial bolt-on panelboard bus. It will not snap into plug-on residential load centers like the Eaton BR, Type CH, or standard plug-on Westinghouse panels.
Is the QBHW3030H breaker HACR rated?
Yes, this model carries an HACR rating, making it fully certified for use with dedicated heating, air conditioning, and refrigeration equipment.
How many spaces does this breaker occupy in a panel?
The QBHW3030H is a 3-pole breaker built on the 1-inch Quicklag format. It requires three full 1-inch spaces on the panelboard bus.

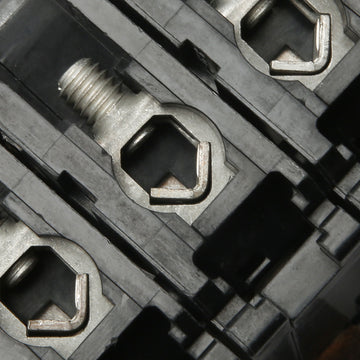

Are the box lugs on this breaker rated for aluminum conductors?
Yes, the factory-installed box lugs are AL/CU rated, meaning they accept both aluminum and copper wiring. The supported wire gauge range is 14 AWG to 4 AWG.
