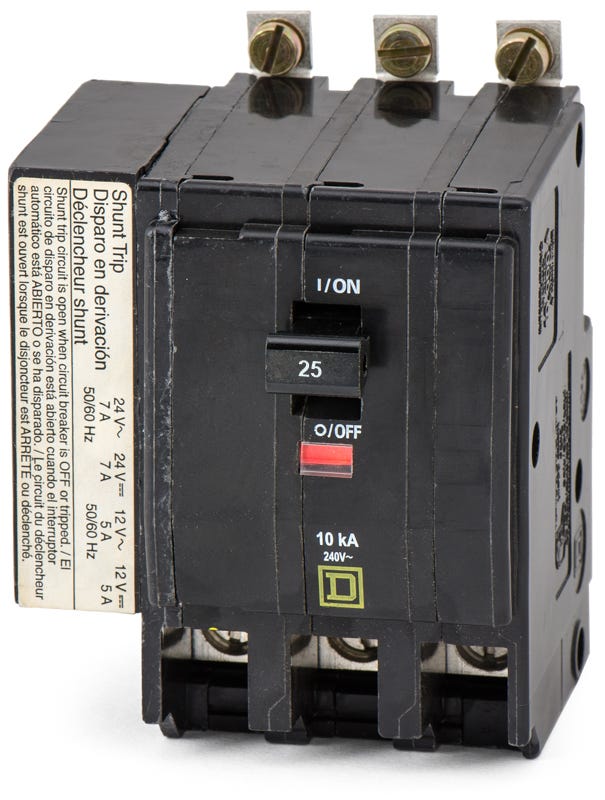

Square D QOB325-1021 QOB3251021 - 25A 3 Pole Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Square D
QOB325-1021
QOB3251021 - 25A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB325-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3251021 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Built for specialized control applications, the Square D QOB325-1021 is a three-pole, 25-amp miniature circuit breaker featuring a factory-installed 120/208/240VAC shunt trip. This allows facility managers to remotely open the circuit for emergency shutdowns or automated control. Designed for bolt-on installation, it mounts into Square D NQ and NQOD panelboards. The breaker delivers reliable thermal-magnetic protection with a 10kAIC rating at 240V.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB325-1021 |
| Series | QOB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
8 answersWhich panelboards are compatible with the QOB3251021 circuit breaker?
This bolt-on breaker is designed for use in Square D NQ and NQOD series panelboards.
What does the 1021 suffix indicate on this Square D breaker?
The 1021 suffix indicates that the breaker includes a factory-installed shunt trip designed to operate on 120V, 208V, or 240V AC control voltage.
How many panel spaces does the QOB3251021 require?
It requires four spaces. The three-pole breaker takes three spaces, and the factory-installed shunt trip requires one additional pole space.
What wire sizes are accepted by the shunt trip terminals?
The shunt trip terminals accept two 14-12 AWG copper wires. The hot and neutral control wires can be connected to either terminal.
Can I add a shunt trip to a standard QOB325 breaker in the field?
No, Square D QO and QOB shunt trips must be factory-installed. If you need remote trip capabilities, you must order a breaker with the appropriate suffix, such as the QOB3251021.
Is the QOB3251021 rated for DC applications?
Yes, in addition to its AC ratings, this breaker is rated for a 5kA interrupting capacity at 48V DC.
Is the QOB3251021 suitable for HVAC applications?
Yes, standard QO and QOB circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment.
Does this breaker feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a red indicator appears in a window on the case for quick fault identification.
