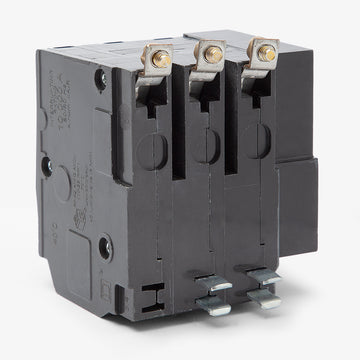

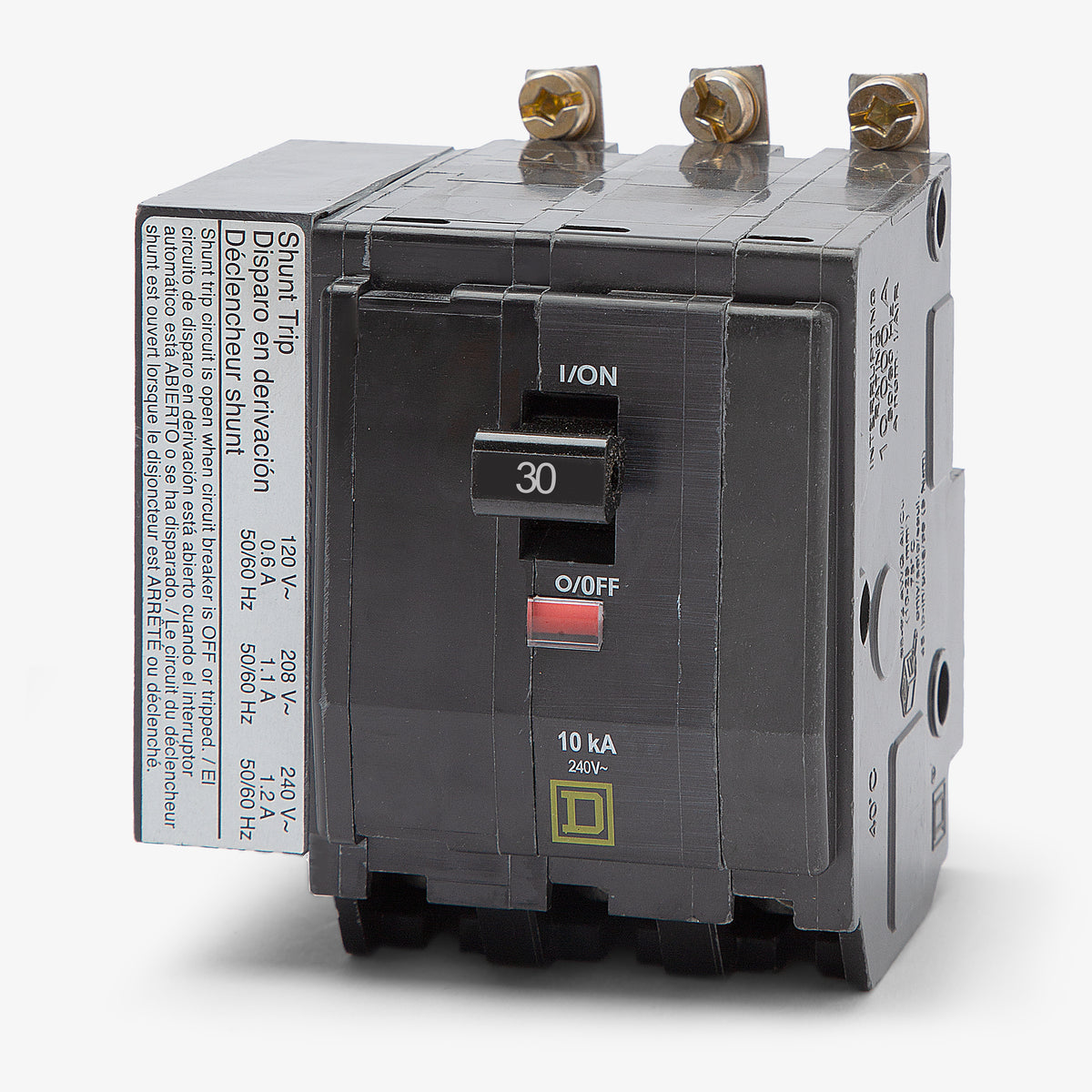

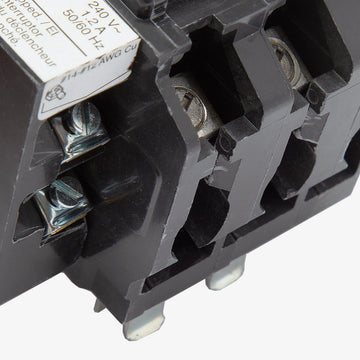

Square D QOB330-1021 QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
QOB330-1021
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB330-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3301021 |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3301021-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
25A 3 Pole Miniature Circuit Breaker
QOB340VH1021 - 40A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial systems, the Square D QOB330-1021 is a 3-pole, 30A breaker. It includes a factory-installed shunt trip, allowing remote tripping via a 120/240VAC control circuit. This device features a secure bolt-on mounting style, making it fully compatible with Square D NQ and NQOD panelboards. The bolt-on design ensures a stable connection in demanding environments.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB3301021 |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the -1021 suffix mean on the QOB3301021 circuit breaker?
The -1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be tripped remotely via a separate control circuit, which is often required for emergency stop or automated shutdown systems.
Can I install the QOB3301021 in a standard QO residential load center?
No. The QOB3301021 is a bolt-on circuit breaker designed specifically for Square D NQ and NQOD commercial panelboards. Standard QO load centers require plug-on breakers.
What is the plug-on equivalent of the QOB3301021?
If you need a 30-amp, 3-pole breaker with a 120/240VAC shunt trip for a plug-on QO load center, the correct catalog number is QO3301021.
Does this breaker provide visual trip indication?
Yes. It features the Square D Visi-Trip indicator, which displays a highly visible red flag when the breaker has tripped due to an overload or short circuit. This makes it easy to identify the faulted circuit in a crowded panelboard.

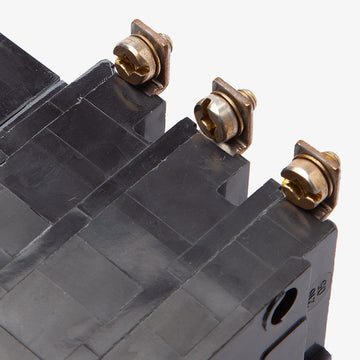

What type of wire is compatible with the terminals on this breaker?
The pressure plate terminals are rated for both aluminum and copper conductors, accepting wire sizes from 14 AWG to 8 AWG. Ensure terminals are torqued to the specifications printed on the breaker label to prevent arcing or overheating.
How does the thermal-magnetic trip mechanism operate?
The thermal-magnetic mechanism provides two types of protection. The thermal element offers long-time protection against gradual overloads, while the magnetic element provides instantaneous protection against severe short circuits.
Can this breaker be used in DC applications?
Yes, the QOB3301021 is rated for use in DC systems up to 48VDC, where it provides an interrupting capacity of 5kAIC. This makes it suitable for specific control panel or battery-backed applications.
