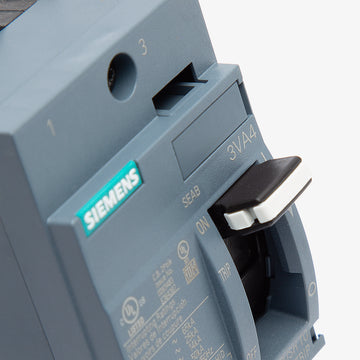

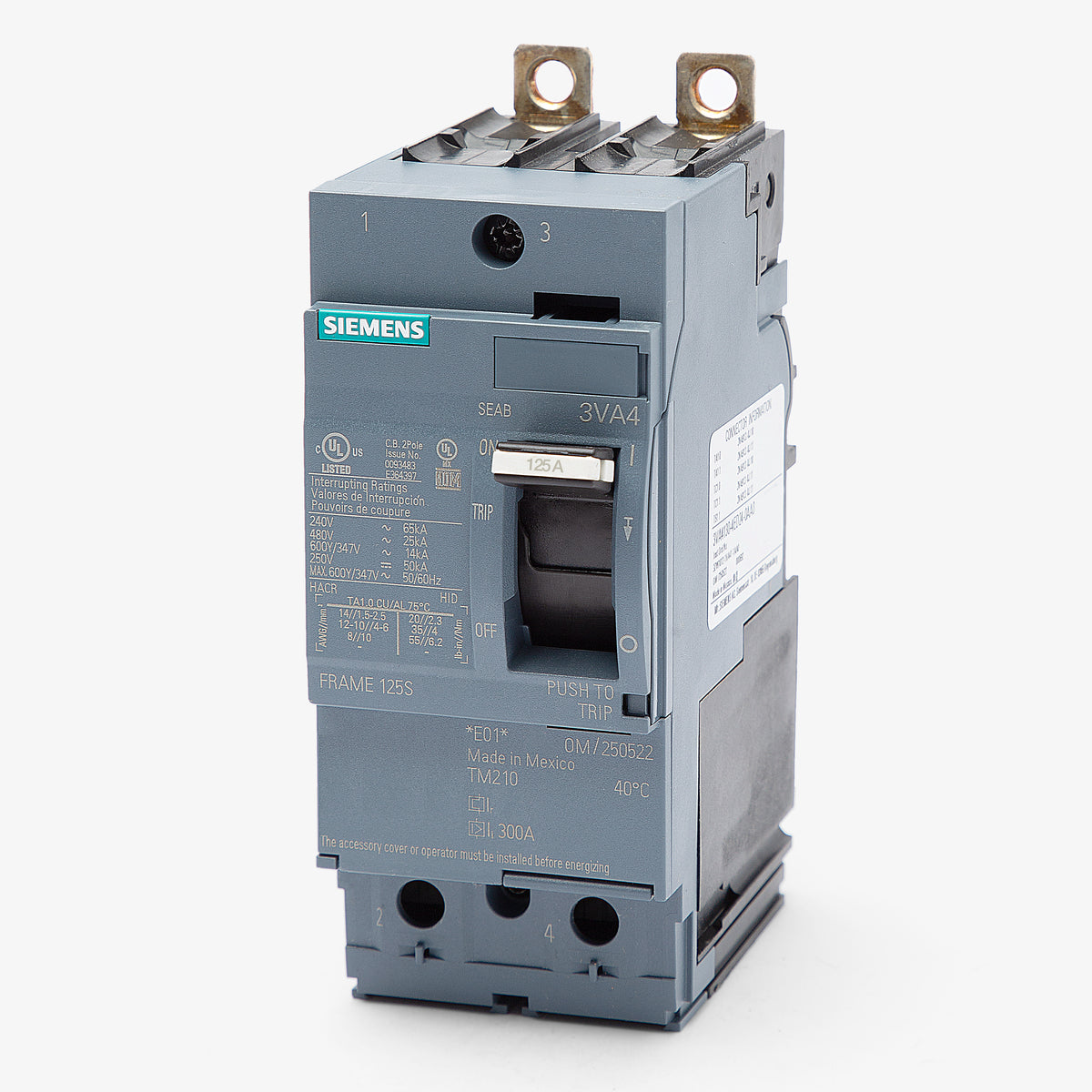

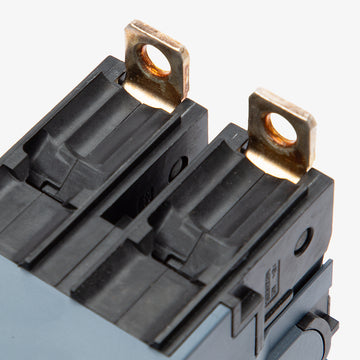

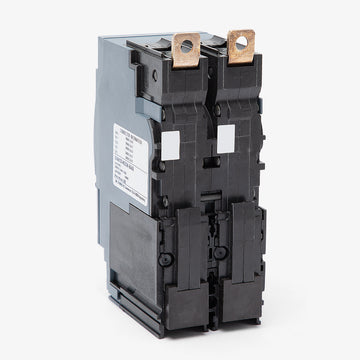

Siemens 3VA4112-4ED24-0AA0 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Siemens
3VA4112-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4112-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4112-4ED24-0AA0 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens 3VA4112-4ED24-0AA0 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens 3VA4112-4ED24-0AA0 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items

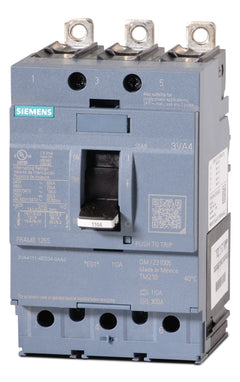

110A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power systems, the Siemens 3VA4112-4ED24-0AA0 is a 2-pole, 125A molded case circuit breaker. It utilizes a TM210 thermal-magnetic trip unit to ensure consistent protection. Designed with a bolt-on mounting style, it integrates easily into Siemens P1, P2, and P3 panelboards. This model acts as a direct substitute for older ED43B125 breakers. The Sentron 3VA41 frame breaker delivers 25kAIC at 480V. It is HACR rated and includes load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat size wire do the standard lugs on this breaker accept?
The factory-installed lugs are designed to accept 8 AWG through 3/0 AWG copper or aluminum wire.
Which Siemens panelboards are compatible with this breaker?
This breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards. You will need the appropriate panel-specific mounting strap kit to secure it to the bus.
Can this breaker replace older Siemens SEAB series breakers?
Yes, the 3VA41 frame with standard breaking capacity (Class S) is the modern replacement for legacy Siemens SEAB 2-pole circuit breakers.
Are the thermal or magnetic trip settings field-adjustable?
No, this unit features a fixed thermal, fixed magnetic (FTFM) trip unit. Both the overload and short-circuit trip thresholds are permanently set at the factory and cannot be modified.
Is this circuit breaker rated for direct current (DC) systems?
Yes. It is rated for up to 250VDC with an interrupting capacity of 50kA, making it suitable for compatible industrial, battery, or solar DC applications.
How does this breaker connect to the electrical panel?
It is a bolt-on molded case circuit breaker. It bolts directly to the panelboard or switchboard bus rather than snapping onto a DIN rail, which requires the correct mounting hardware kit.
What breaking capacity class does this model feature?
This model features a Standard (Class S) breaking capacity. This provides a maximum interrupting rating of 65kA at 240VAC, 25kA at 480VAC, and 14kA at 600Y/347VAC.
What does the LI trip function code indicate on this breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection against general overloads and Instantaneous (I) protection against severe short circuits.
