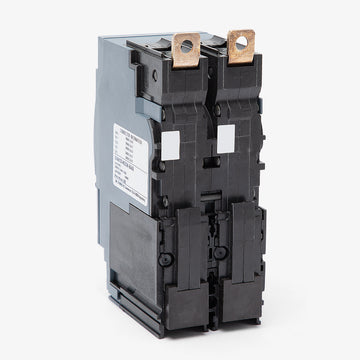

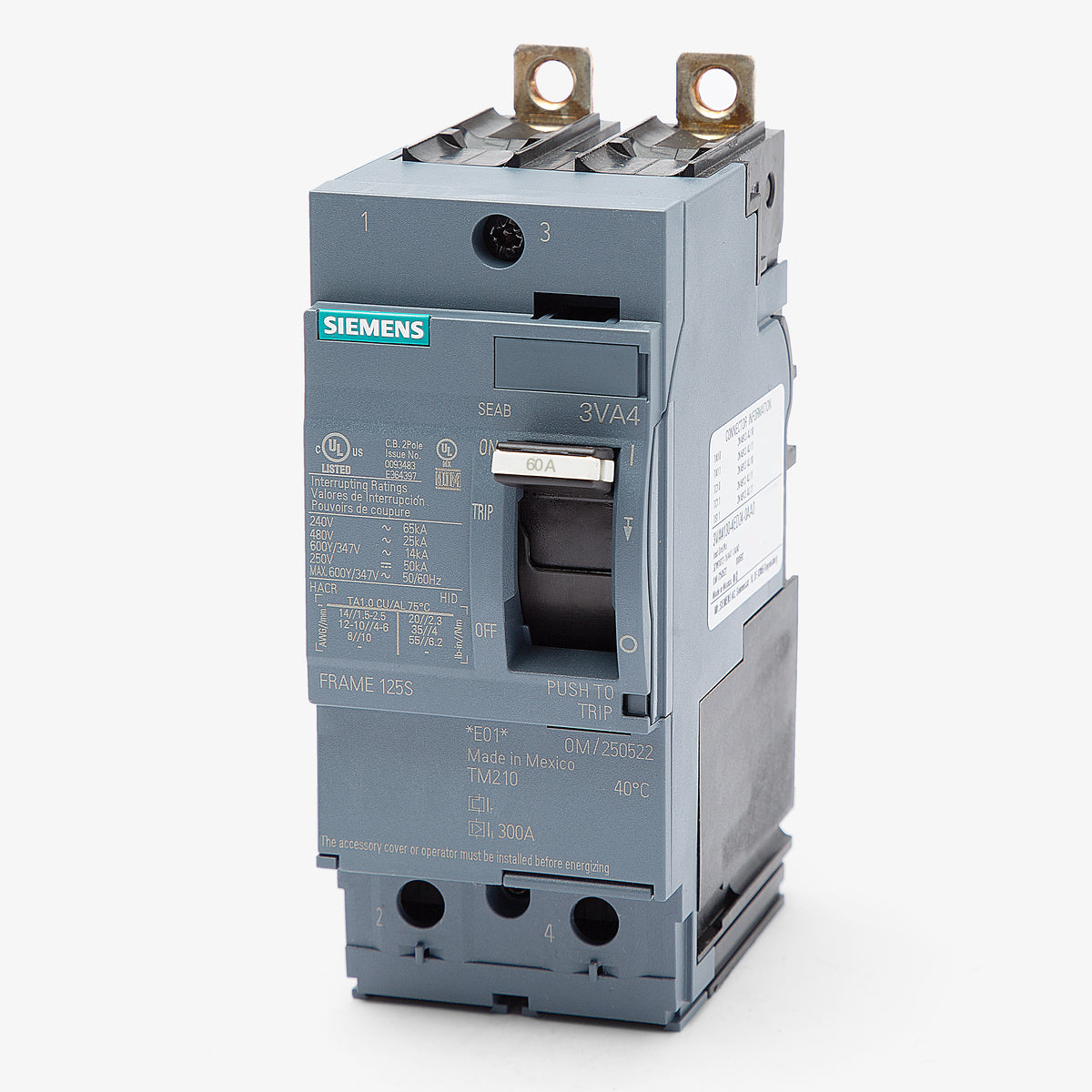

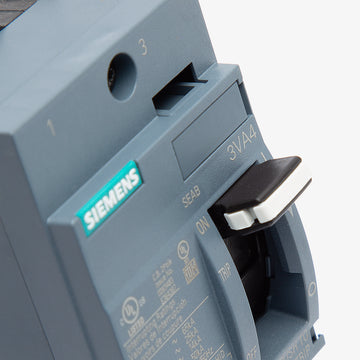

Siemens 3VA4160-4ED24-0AA0 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Panel Mount
Siemens
3VA4160-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4160-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4160-4ED24-0AA0 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for dependable circuit protection, the 3VA4160-4ED24-0AA0 is a 2-pole, 60A MCCB from the Siemens 3VA4 series. It is ideal for commercial environments demanding precise overcurrent management. This panel mount breaker integrates into Siemens P1, P2, and P3 panelboards. It serves as a functional replacement for legacy ED42B060 breakers when used with a mounting kit. The unit features an S-Class rating of 25 kAIC at 480V, a thermal-magnetic (LI) trip, and a trip-free mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4160-4ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards are compatible with the 3VA4160-4ED24-0AA0 circuit breaker?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens distribution switchboards. It requires the appropriate 3VA41 mounting strap kit for installation.
Does this breaker come with line and load lugs installed?

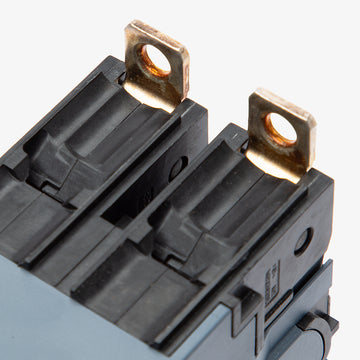

Standard 3VA41 panelboard-mounted breakers like the 3VA4160-4ED24-0AA0 are shipped with aluminum lugs installed on the load side only. These load lugs accept 14 AWG to 3/0 AWG copper or aluminum wire. The line side connects directly to the panelboard bus using a mounting kit.
Can the 3VA4160-4ED24-0AA0 be used in direct current (DC) applications?
Yes, this breaker is rated for DC applications up to 250V DC, with an interrupting capacity of 50 kAIC at that voltage.
Are the trip settings adjustable on the 3VA4160-4ED24-0AA0?
No, this breaker features a thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) trip settings. It does not have adjustable dials.
Can this breaker replace legacy ED42B060 circuit breakers?
Yes, the 3VA4160-4ED24-0AA0 serves as a functional replacement for legacy Siemens ED42B060 breakers in panelboards, provided the correct 3VA41 twin mount strap kit is used to adapt it to the panel bus.
Is the 3VA4160-4ED24-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
What is the maximum frame rating for the 3VA41 series?
The 3VA41 is a 125A frame size. The 3VA4160-4ED24-0AA0 utilizes this 125A frame but is factory-calibrated for a maximum continuous current of 60A.
Does the 3VA4160-4ED24-0AA0 feature a trip-free mechanism?
Yes, it includes a trip-free mechanism, ensuring the breaker will trip during an overcurrent or short-circuit event even if the handle is physically held in the ON position.
