Siemens 3VA4160-6ED24-0AA0 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Panel Mount
Siemens
3VA4160-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4160-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

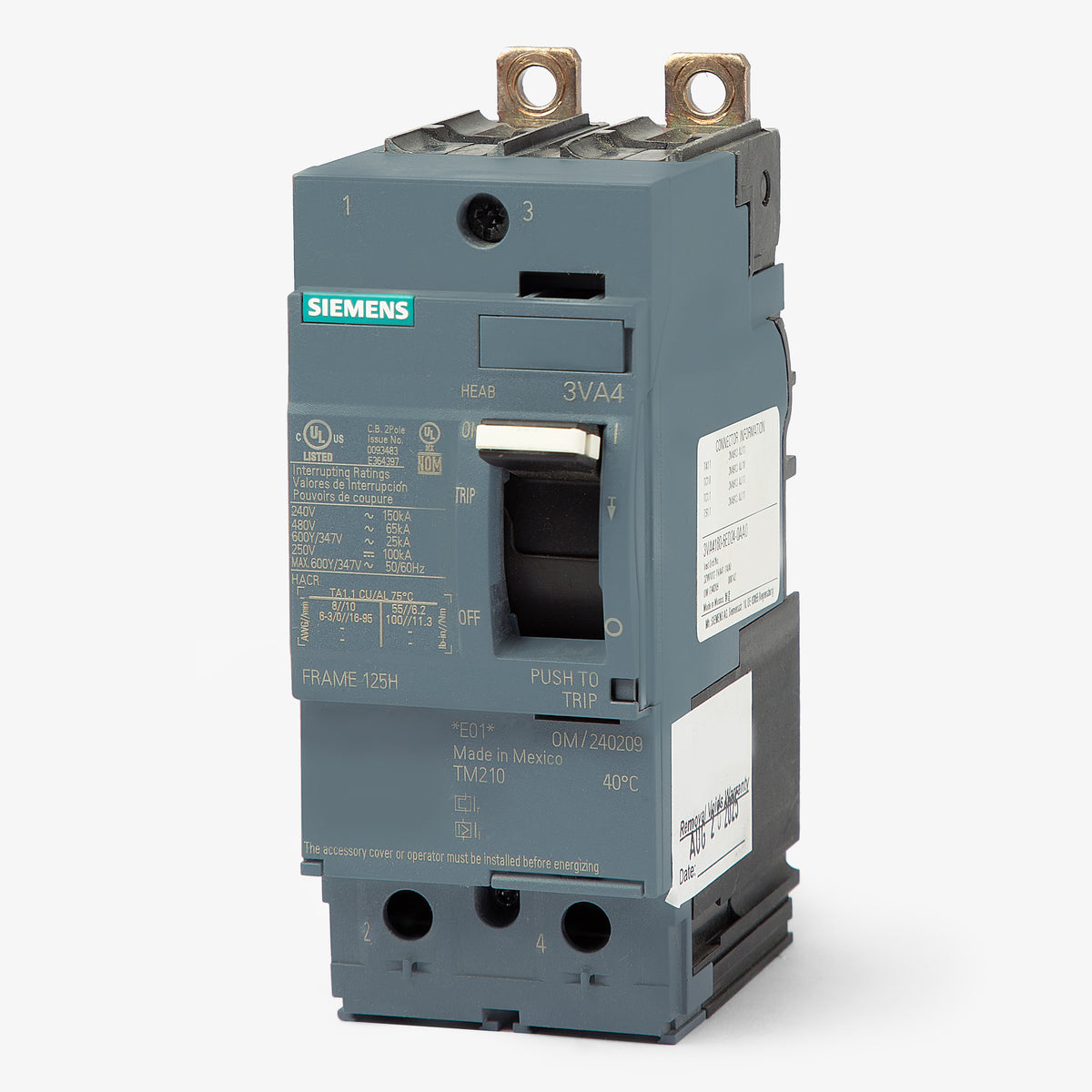

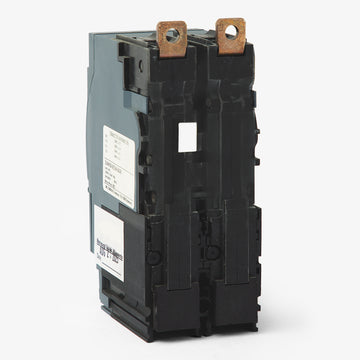

Siemens 3VA4160-6ED24-0AA0 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial power distribution, this 60A two-pole molded case circuit breaker utilizes fixed thermal and magnetic trip units for precise LI protection. It integrates into Siemens P1, P2, and P3 panelboards or switchboards, replacing older ED62B060 models when paired with the proper mounting kit. The current-limiting SENTRON 3VA4 frame ensures high-performance fault interruption up to 65kAIC at 480VAC, complete with HACR and reverse-feed ratings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4160-6ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the 3VA4160-6ED24-0AA0 circuit breaker?
This breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.
Can the 3VA4160-6ED24-0AA0 replace older ED frame breakers?
Yes, this 3VA41 frame breaker can replace older ED62B060 models in Siemens panelboards when paired with the appropriate mounting kit.

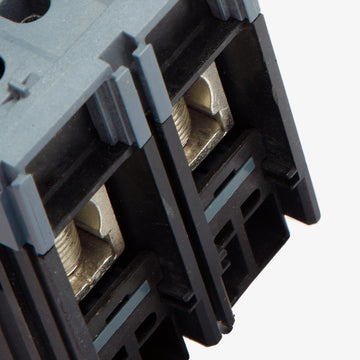

What wire sizes are accepted by the factory-installed lugs on this breaker?
The lugs accept 14 AWG through 3/0 AWG wire and are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Can this 2-pole breaker be used in DC power systems?
Yes, it is rated for DC applications up to 250VDC, providing an interrupting capacity of 100kA at that voltage.
What does the LI trip function indicate on this 3VA4 breaker?
The LI designation means it features a thermal-magnetic trip unit with fixed Long-Time (L) and fixed Instantaneous (I) protection. It does not have adjustable trip settings.
What specific trip unit is installed in the 3VA4160-6ED24-0AA0?
It is equipped with a TM210 thermal-magnetic trip unit. This provides a fixed 60A continuous current rating and a fixed instantaneous pickup set at 10 times the continuous current.

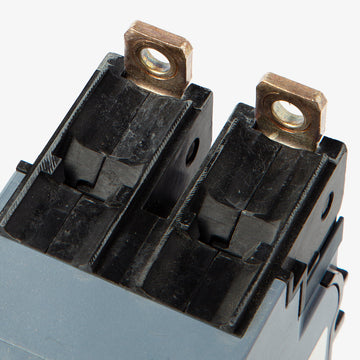

How does this breaker mount into the panelboard?
This is a panel mount molded case circuit breaker that bolts directly into the chassis of compatible Siemens panelboards and switchboards.
