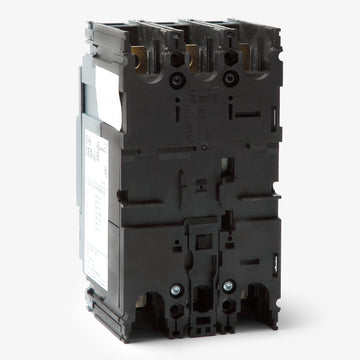

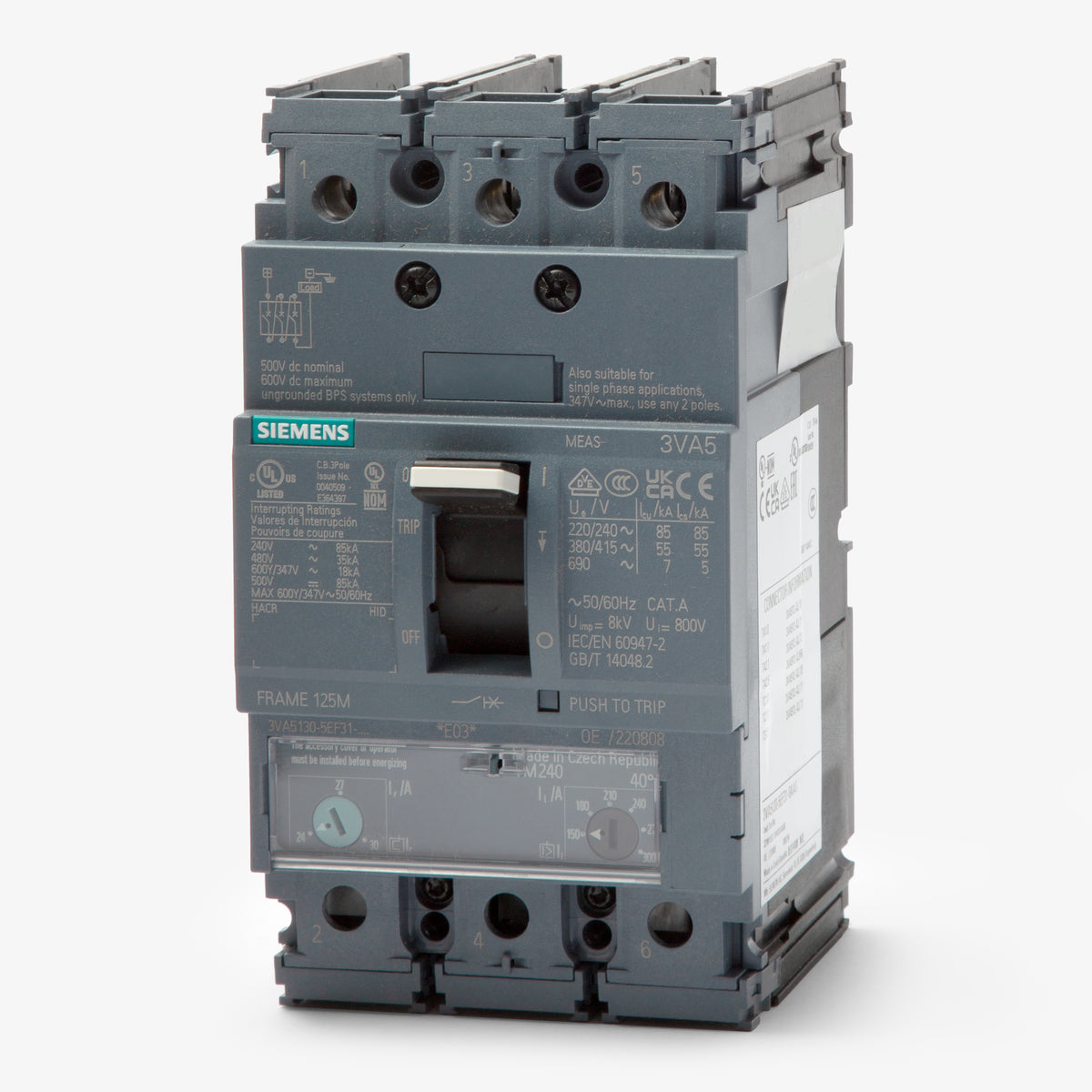

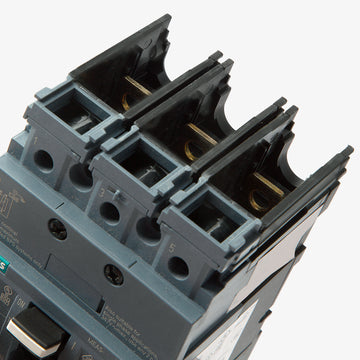

Siemens 3VA5120-6EC31-0AA0 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Siemens
3VA5120-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5120-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5120-6EC31-0AA0 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description

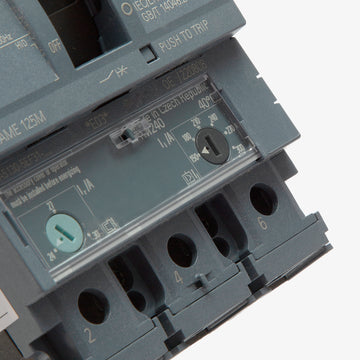

Built for commercial power systems, the Siemens 3VA5120-6EC31-0AA0 is a 3-pole, 20A molded case circuit breaker. It utilizes a TM230 trip unit, providing fixed thermal and adjustable magnetic settings for precise protection. This unit mounts into Siemens P1 and P2 panelboards, as well as switchboards. It also functions as a replacement for legacy HHED63B020 and HED43B020 breakers. Delivering Class H breaking capacity, this breaker is rated 65kAIC at 480V and 100kAIC at 240V.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Rotary Handle, Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting |
Product FAQs
4 answersWhich Siemens panelboards are compatible with the 3VA5120-6EC31-0AA0?
This breaker is designed for use in Siemens P1 and P2 panelboards, as well as Siemens switchboards.
Are the trip settings adjustable on this 3VA5 breaker?
Yes, it features a thermal magnetic trip unit with fixed thermal protection and adjustable magnetic (instantaneous) protection settings.
Is the 3VA5120-6EC31-0AA0 rated for direct current (DC) systems?
Yes, this breaker is rated for DC applications with an interrupting capacity of 100kA at 500VDC.
What type of connection does this molded case circuit breaker utilize?
It utilizes a feed-thru connection type and mounts directly to the panel using lugs.
