Siemens 3VA5130-5EF31-0AA0 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Siemens
3VA5130-5EF31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5130-5EF31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5130-5EF31-0AA0 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Offering advanced circuit protection, the Siemens 3VA5130-5EF31-0AA0 is a 3-pole, 30A MCCB. It belongs to the 3VA5 family and is designed for environments requiring precise LI functions. The breaker is compatible with Siemens 3VA panelboards, and P1/P2/P3 models using a retrofit kit. It serves as an upgraded replacement for legacy ED63B030 units. This model features a TM240 trip unit with adjustable thermal (21-30A) and magnetic settings. It provides a 35kAIC rating at 480V and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5130-5EF31-0AA0 |
| Series | 3VA5 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC, 50kA @ 500VDC |
| Amperage Range | 21-30A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Siemens P1/P2/P3 Panelboards (with kit), Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator |
|---|---|
| Accessories | None (Standard 0AA0 suffix indicates no auxiliary switches or releases) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhat legacy Siemens circuit breaker does the 3VA5130-5EF31-0AA0 replace?
This 3VA5 series breaker is the direct, upgraded replacement for the legacy ED63B030 30-amp, 3-pole molded case circuit breaker.
What are the trip unit adjustment ranges for this 30A breaker?

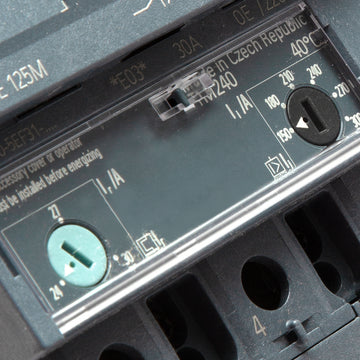

It features a TM240 thermal-magnetic trip unit with an adjustable thermal pickup (Ir) from 24A to 30A and an adjustable magnetic pickup (Ii) from 150A to 300A.
Which Siemens panelboards are compatible with the 3VA5130-5EF31-0AA0?
This breaker installs directly into Siemens 3VA panelboards and standard switchboards. It can also be installed in Siemens P1, P2, and P3 panelboards when using the appropriate retrofit mounting kit.
What is the breaking capacity class for this specific 3VA5 breaker?
This breaker features a Class M breaking capacity, providing a 35kA interrupting rating at 480V and 85kA at 240V.
Can the 3VA5130-5EF31-0AA0 be reverse fed?
Yes, the thermal-magnetic trip units in the Siemens 3VA5 series are UL listed for reverse feed applications.
Is this 30A circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What frame size does the 3VA5130-5EF31-0AA0 utilize?
It is built on the Siemens 3VA51 frame, which is a 125A maximum frame size.
