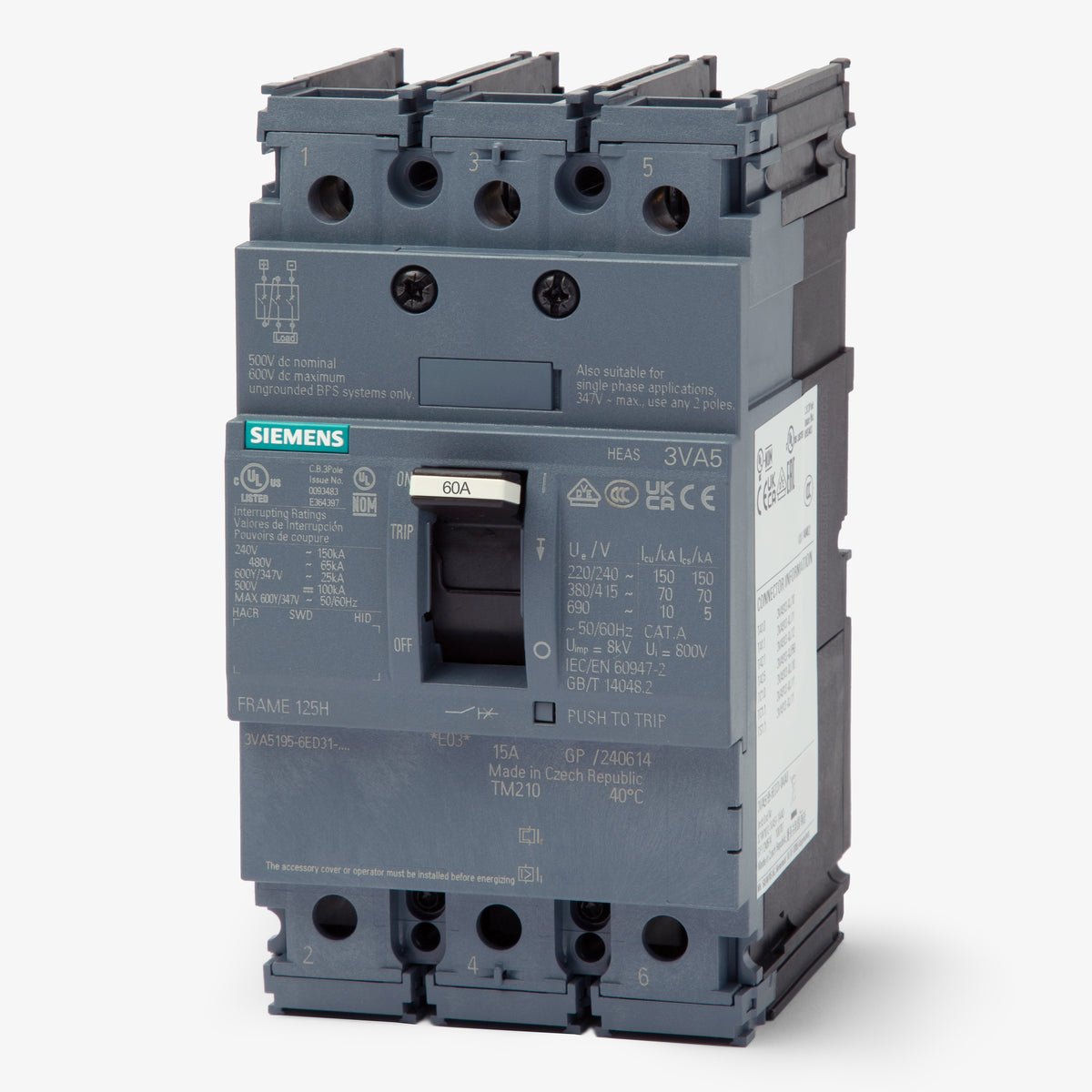

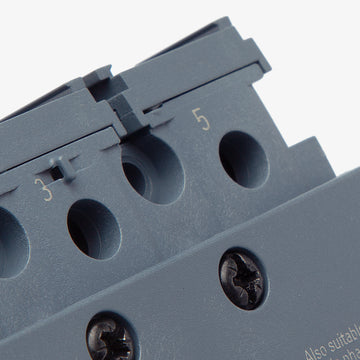

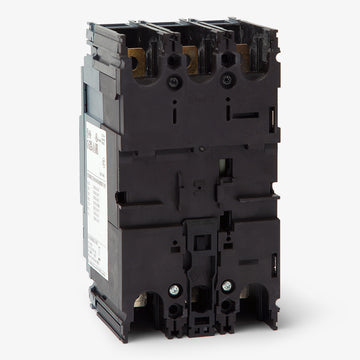

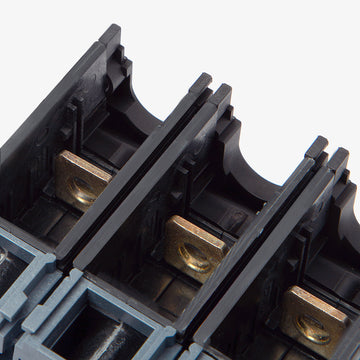

Siemens 3VA5160-5ED31-0AA0 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Siemens
3VA5160-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5160-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5160-5ED31-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for three-phase industrial systems, this 60A MCCB features a TM210 trip unit. It provides fixed long-time and instantaneous (LI) protection for commercial infrastructure. The breaker installs into Siemens P1-P5 panelboards and motor control centers. It is an approved substitute for legacy ED43B060 breakers when paired with a mounting kit. Rated for 35kAIC at 480VAC, this current-limiting SENTRON 3VA5 device is HACR certified for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5160-5ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Lugs, Motor Operator |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panels are compatible with the 3VA5160-5ED31-0AA0 circuit breaker?
This breaker is compatible with Siemens P1, P2, P3, P4, and P5 panelboards, as well as switchboards and motor control centers. Note that installation in P1 panels requires a specific mounting kit.
Can the Siemens 3VA5160-5ED31-0AA0 be reverse fed?
Yes. All Siemens 3VA5 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
What does the "5" in the 3VA5160-5ED31-0AA0 catalog number indicate?
The "5" designates a Class M medium breaking capacity, which provides a 35kA interrupting rating at 480VAC.
What type of trip unit is installed in this 3VA5 circuit breaker?
It features a TM210 thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) protection functions.
Does the 3VA51 frame replace older Siemens circuit breakers?
Yes. The 3VA51 frame is the modern replacement for legacy Siemens ED frame circuit breakers, such as the ED4 and ED6, offering a similar footprint with updated technology.
Is the 3VA5160-5ED31-0AA0 HACR rated?
Yes. This breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
