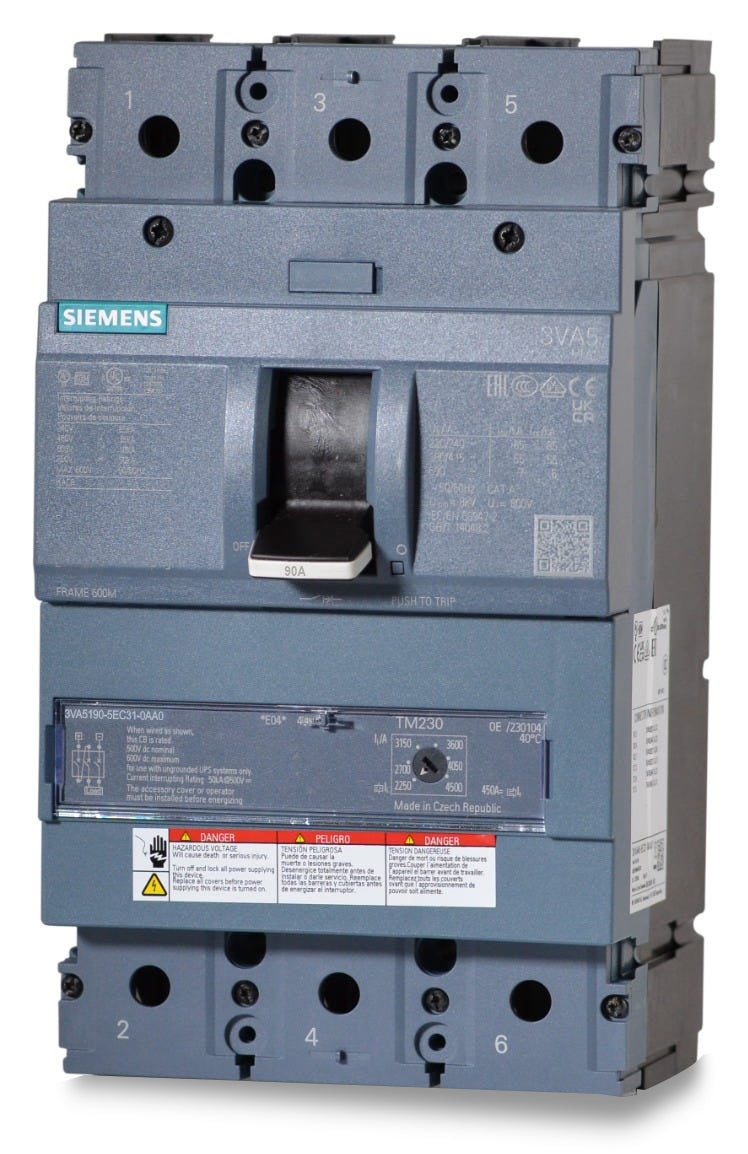

Siemens 3VA5190-5EC31-0AA0 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Siemens
3VA5190-5EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5190-5EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5190-5EC31-0AA0 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Delivering high-performance circuit protection, the Siemens 3VA5190-5EC31-0AA0 is a 3-pole, 90A molded case circuit breaker. It is engineered for commercial facilities requiring elevated interrupting capacities. This breaker installs into Siemens 3VA panelboards and switchboards. It acts as a drop-in replacement for legacy ED63B090 models, simplifying maintenance and system upgrades without requiring complex modifications. The unit boasts a 35 kAIC rating at 480VAC and a TM230 trip unit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5190-5EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | None (Without connection) |
| Standards | IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich legacy Siemens circuit breaker does the 3VA5190-5EC31-0AA0 replace?
This 3VA5 series breaker serves as a direct replacement for the discontinued Siemens ED63B090 molded case circuit breaker.
Which panelboards are compatible with the 3VA5190-5EC31-0AA0 circuit breaker?
This breaker is designed for seamless integration into Siemens 3VA panelboards and standard Siemens switchboards.
How does the TM230 trip unit function on the 3VA5190-5EC31-0AA0?
The TM230 thermal-magnetic trip unit provides Long-Time and Instantaneous (LI) protection. It features a fixed thermal setting for overload protection and an adjustable magnetic setting to fine-tune short-circuit response.
What is the frame size of the 3VA5190-5EC31-0AA0?
This breaker is built on the Siemens 3VA51 frame architecture, which has a maximum capacity of 125A, while this specific model is configured for a 90A continuous current.
What does the 0AA0 suffix mean in the 3VA5190-5EC31-0AA0 catalog number?
The 0AA0 suffix indicates that this is a standard configuration breaker. It does not include factory-installed internal accessories like auxiliary switches, alarm contacts, or shunt trips.
Can the 3VA5190-5EC31-0AA0 be reverse fed?
Yes, Siemens 3VA5 thermal-magnetic circuit breakers are UL listed for reverse feed applications, allowing line power to be connected to either the top or bottom terminals.
