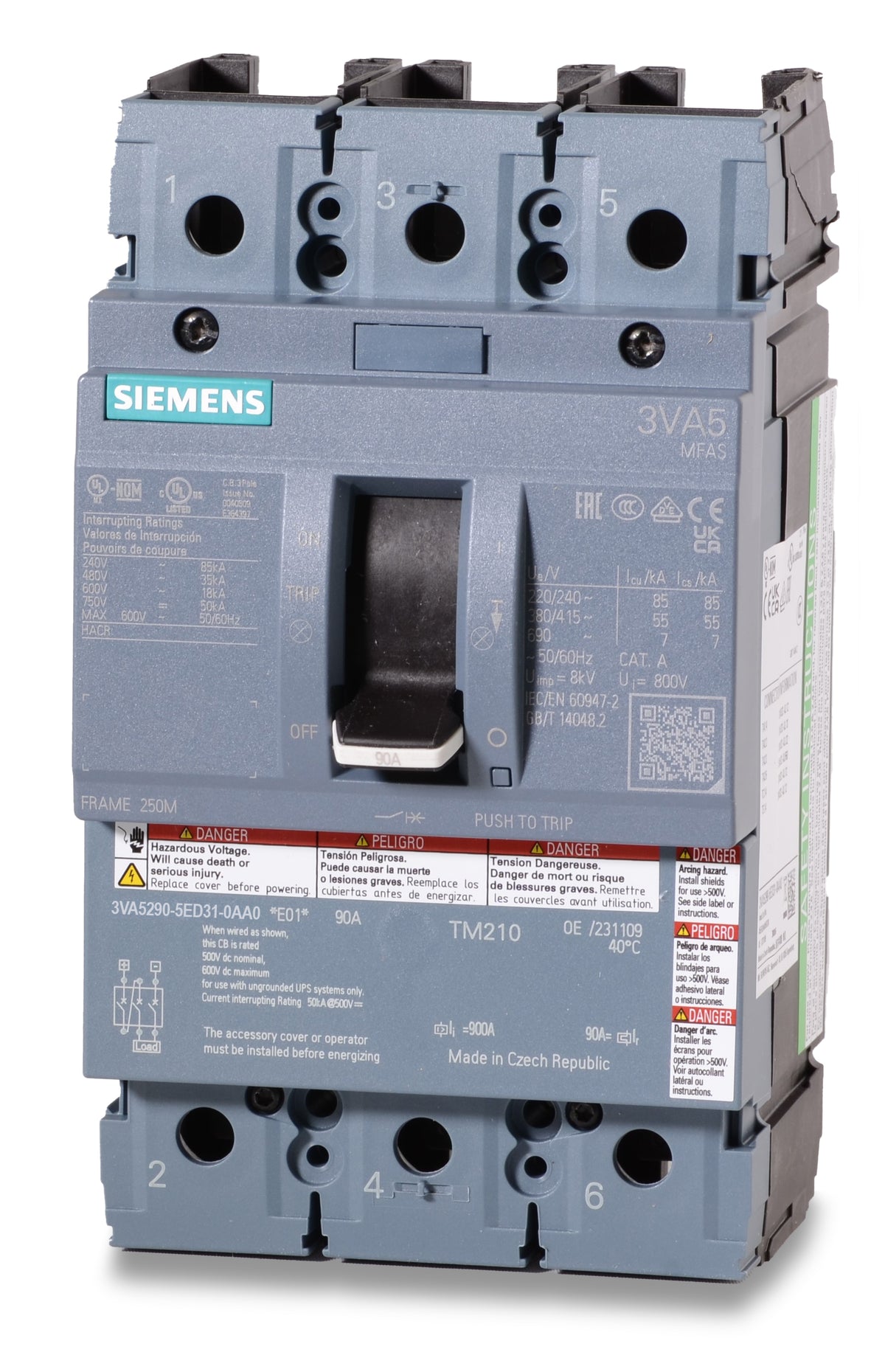

Siemens 3VA5290-5ED31-0AA0 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Siemens
3VA5290-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5290-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5290-5ED31-0AA0 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Designed for reliable line protection, the Siemens 3VA5290-5ED31-0AA0 is a 90A, 3-pole molded case circuit breaker utilizing the 250A frame size. It provides essential overcurrent and short-circuit defense for commercial facilities. It mounts into Siemens 3VA panelboards, as well as P1, P2, and P3 panels when using a strap kit. This model replaces the discontinued FXD63B090. The breaker features a 35kAIC rating at 480V and includes a TM210 trip unit with fixed thermal and magnetic settings.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 50kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, P1/P2/P3 Panelboards (requires strap kit), Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
8 answersWhat legacy Siemens circuit breaker does the 3VA5290-5ED31-0AA0 replace?
This breaker is the direct replacement for the discontinued FXD63B090.
Which panelboards are compatible with the 3VA5290-5ED31-0AA0?
It is designed for use in Siemens 3VA panelboards. It can also be installed in P1, P2, and P3 panelboards when using the appropriate strap kit.
What frame size is the 3VA5290-5ED31-0AA0?
This breaker utilizes the Siemens 3VA52 frame, which is a 250A maximum frame size.
What type of trip unit is equipped on this breaker?
It features a TM210 thermal-magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection.
Can this breaker be reverse fed?
Yes, Siemens 3VA5 thermal-magnetic circuit breakers are UL listed for reverse feed applications.
What interrupting class does the 5 in the 3VA5290-5ED31-0AA0 catalog number signify?
The 5 indicates a Class M interrupting rating, which provides a 35kA capacity at 480VAC.
Is this circuit breaker HACR rated?
Yes, it is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can this breaker be used in DC applications?
Yes, it is rated for up to 750VDC with a 50kA interrupting capacity. When applied on DC systems, specific pole wiring configurations are required based on the system voltage.
