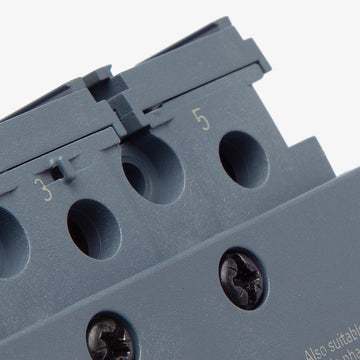

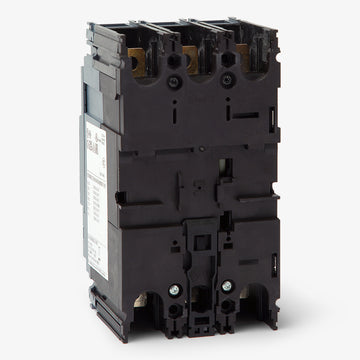

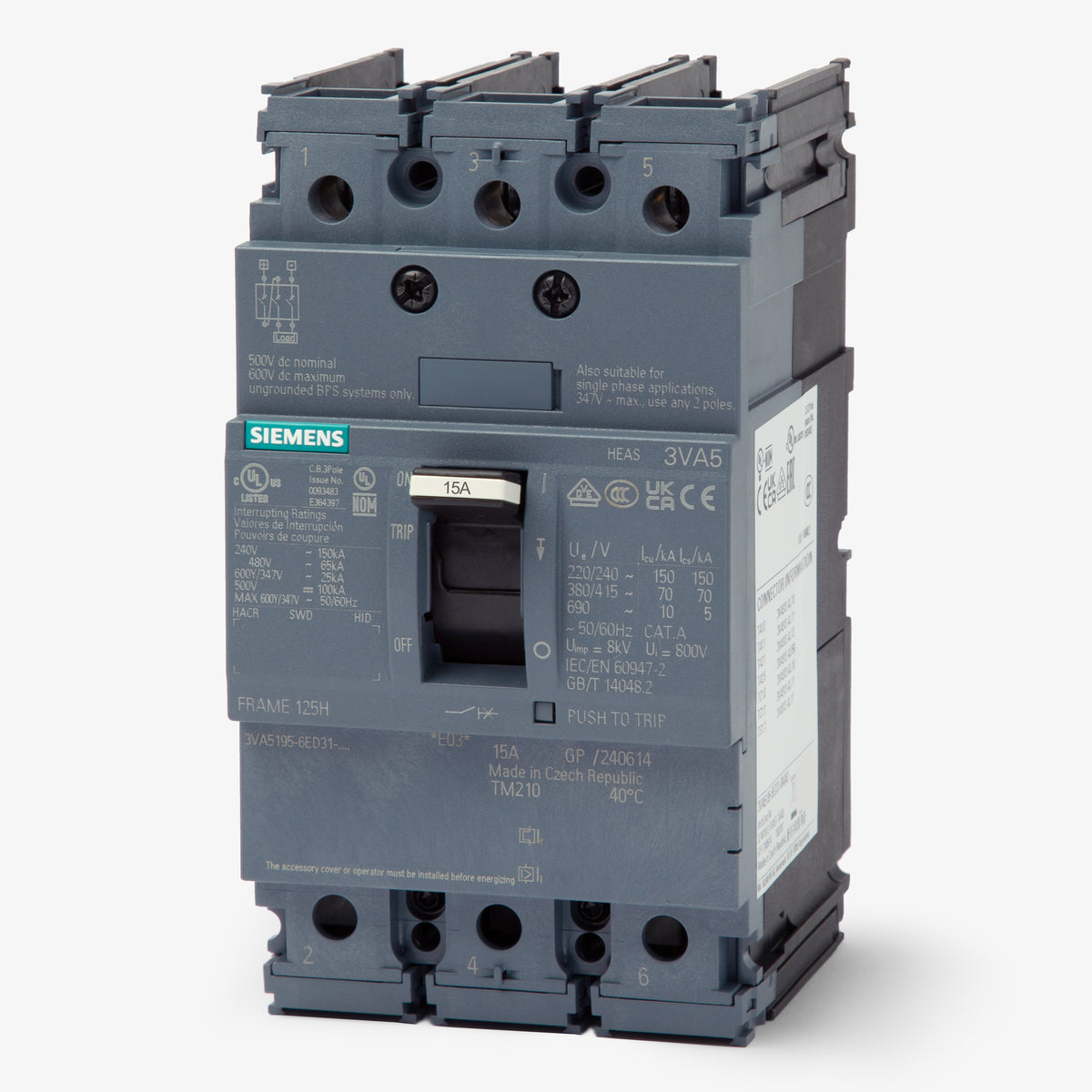

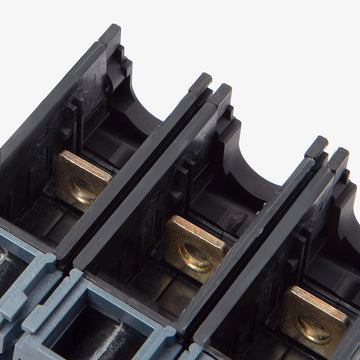

Siemens 3VA5195-5ED31-0AA0 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Siemens
3VA5195-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5195-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5195-5ED31-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON 3VA5 series, the Siemens 3VA5195-5ED31-0AA0 is a 3-pole, 15A molded case circuit breaker engineered for commercial and industrial applications. It mounts into modern Siemens 3VA panelboards and enclosures. With a mounting kit, it also replaces legacy ED43B015 and ED63B015 breakers in older P1 panels. Delivering a 35kA rating at 480VAC, it utilizes a TM210 trip unit with fixed thermal and magnetic settings for long-time and instantaneous (LI) defense.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, DIN Rail Adapter, Lug Kits, Busbar System |
|---|---|
| Accessories | None (Nut Keeper) |
| Standards | IEC 60947-2, UL 489, HACR, HID, SWD |
| Approval | ABS, CE, CSA, cULus, DNV, EAC, IEC, Lloyd's, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens 3VA5195-5ED31-0AA0?
This 3-pole molded case circuit breaker is designed for installation in Siemens 3VA panelboards, as well as compatible Siemens switchboards and industrial enclosures.
What frame size is this Siemens 3VA5 circuit breaker?
This 15-amp circuit breaker is built on the Siemens 3VA51 frame, which has a maximum continuous current rating of 125 amps.
What do the LI trip functions indicate on the 3VA5195-5ED31-0AA0?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both functions have fixed operational setpoints on this specific model.
Is the 3VA5195-5ED31-0AA0 circuit breaker suitable for reverse feeding?
Yes, standard thermal magnetic 3VA5 molded case circuit breakers are reverse-feed capable, allowing incoming power to be connected to either the top or bottom terminals to accommodate flexible wiring layouts.
What is the operating temperature range for this circuit breaker?
This breaker is designed to operate safely in ambient temperatures ranging from -13 to 158 degrees Fahrenheit (-25 to 70 degrees Celsius).
