Siemens 3VA5210-6ED61-0AA0 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Panel Mount
Siemens
3VA5210-6ED61-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5210-6ED61-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

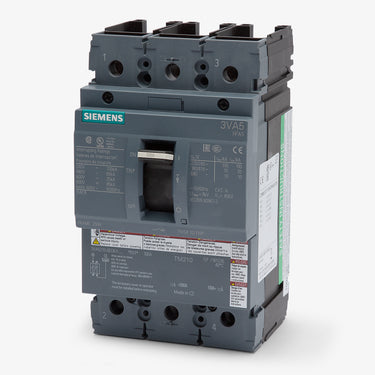

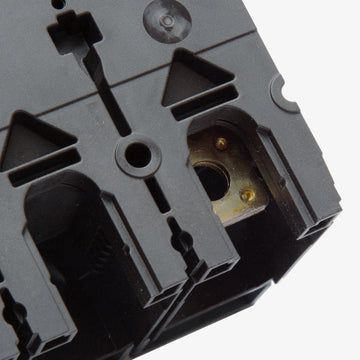

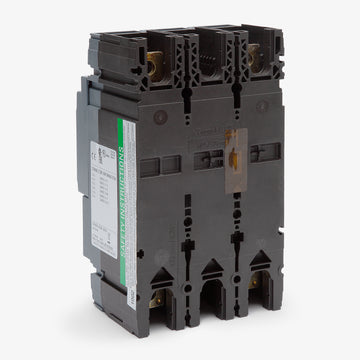

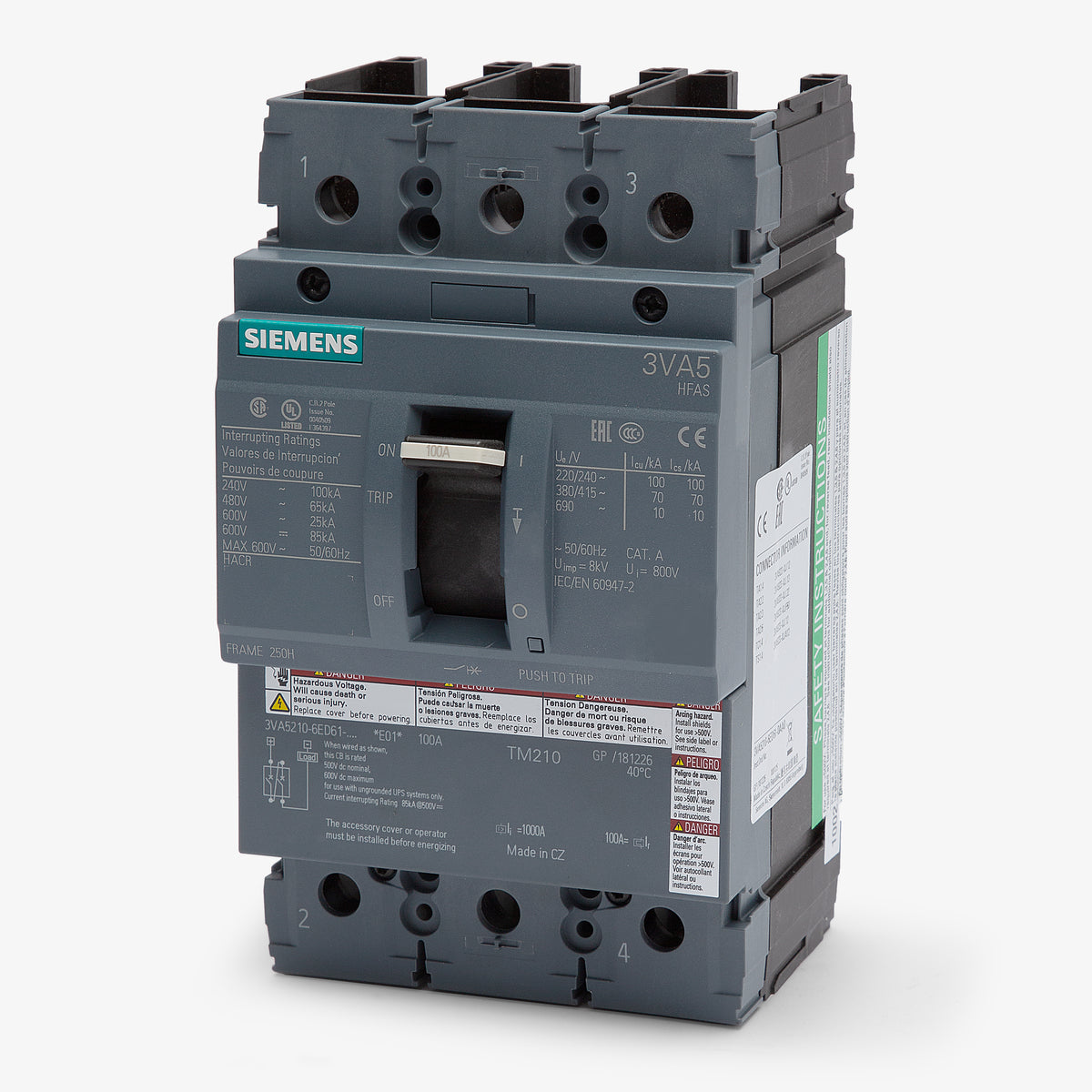

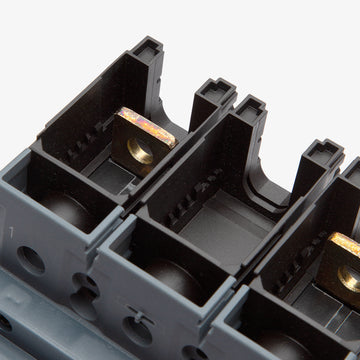

Siemens 3VA5210-6ED61-0AA0 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty industrial power distribution, the Siemens 3VA5210-6ED61-0AA0 is a 100A MCCB. It uniquely packages a 2-pole configuration inside a larger 250A 3VA52 frame, delivering exceptional durability. This breaker installs into Siemens P2 and P3 panelboards or switchboards. It is a direct replacement for the legacy HFD62B100, making facility upgrades straightforward. Featuring a TM210 trip unit with fixed thermal and magnetic settings, it provides a 65kAIC rating at 480V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5210-6ED61-0AA0 |
| Series | 3VA5 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3 Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment, Busbar System |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489, HACR Rated |
| Approval | ABS, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens 3VA5210-6ED61-0AA0?
This 3VA5 frame breaker is designed for use with Siemens P2 and P3 panelboards, as well as compatible Siemens switchboards.
Can the 3VA5210-6ED61-0AA0 be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 500VDC, providing an interrupting capacity of 85kA at that voltage.
Are the trip settings on this breaker adjustable?
No, this specific model features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for its long-time and instantaneous (LI) protection functions.
What type of connection does this breaker utilize?
It features a feed-thru connection type and is designed for panel mounting using lug terminals.
Is this breaker part of the Sentron product line?
Yes, the 3VA5210-6ED61-0AA0 is part of the Siemens Sentron family of molded case circuit breakers, specifically utilizing the 3VA5 frame design.
