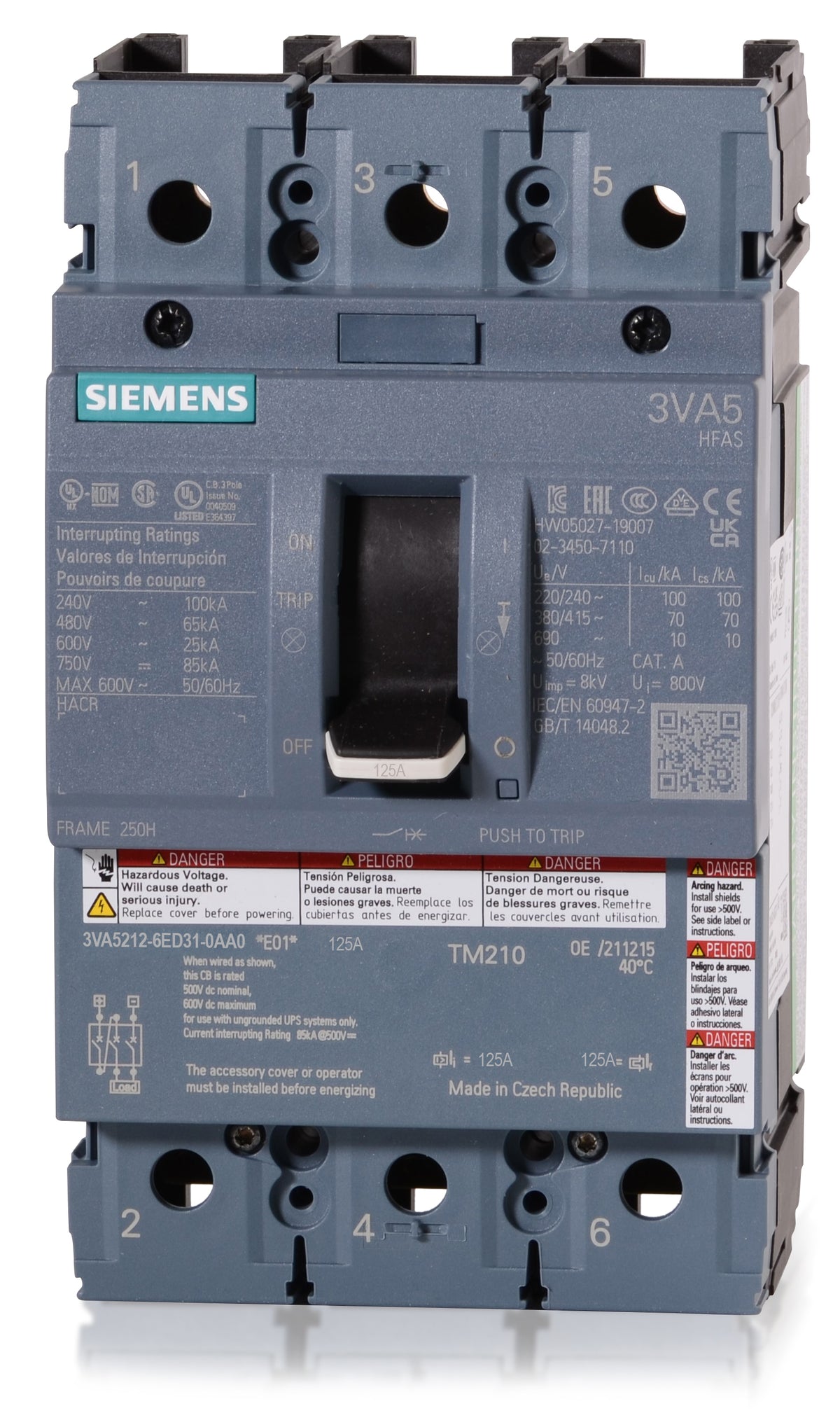

Siemens 3VA5212-6ED31-0AA0 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Panel Mount
Siemens
3VA5212-6ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5212-6ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5212-6ED31-0AA0 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON family, the Siemens 3VA5212-6ED31-0AA0 is a 3-pole, 125A molded case circuit breaker rated 65kAIC at 480VAC. This MCCB installs into Siemens 3VA panelboards and switchboards. It serves as a replacement for legacy HFD63B125 breakers when paired with a retrofit kit. The unit utilizes a TM210 fixed thermal and magnetic trip unit for precise long-time and instantaneous (LI) protection. It is HACR rated and current limiting.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5212-6ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 250VDC, 85kA @ 500VDC, 85kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator |
|---|---|
| Accessories | None (Nut Keeper) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan this breaker replace older Siemens legacy models?
Yes, the 3VA5212-6ED31-0AA0 can serve as a replacement for legacy HFD63B125 circuit breakers when installed with the appropriate Siemens retrofit kit.
What is the frame size of the 3VA5212-6ED31-0AA0?
This breaker is built on the Siemens 3VA52 frame, which has a maximum capacity of 250A, though this specific unit is factory-rated for 125A.
Is the 3VA5212-6ED31-0AA0 suitable for heating and cooling applications?
Yes, this molded case circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What type of trip unit is equipped on this breaker?
It features a TM210 thermal-magnetic trip unit with fixed long-time and fixed instantaneous protection functions.
What are the physical dimensions of the 3VA52 frame breaker?
The 3VA52 frame measures approximately 7.3 inches high, 4.1 inches wide, and 4.2 inches deep.
Does this breaker provide current limiting protection?
Yes, the 3VA5212-6ED31-0AA0 is a current-limiting circuit breaker, which helps reduce let-through energy during a fault to protect downstream equipment.
