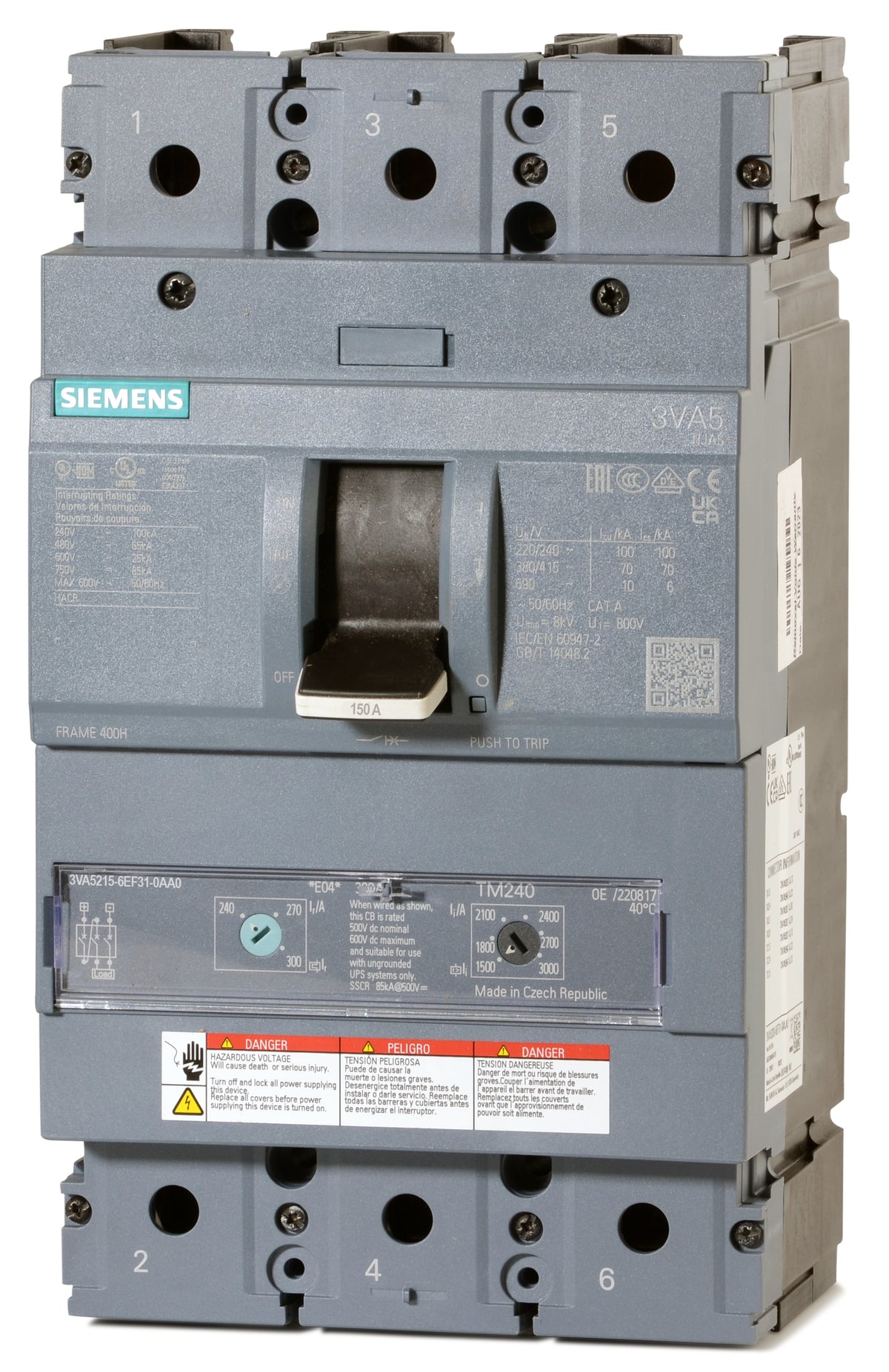

Siemens 3VA5215-6EF31-0AA0 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Siemens
3VA5215-6EF31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5215-6EF31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5215-6EF31-0AA0 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the SENTRON 3VA5 family, this 150A, 3-pole molded case circuit breaker is built for commercial and industrial applications. This unit mounts into Siemens 3VA panelboards and enclosures. It also serves as a replacement for legacy HFXD63B150 breakers when paired with the proper adapter. Featuring a Class H breaking capacity of 65kA at 480V, it utilizes a TM240 trip unit with adjustable thermal and magnetic settings for precise coordination.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 100kA @ 250VDC, 100kA @ 500VDC, 85kA @ 750VDC |
| Amperage Range | 120-150A |
|---|
| Frame Type | 3VA52 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | ABS, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the 3VA5215-6EF31-0AA0 replace older Siemens legacy breakers?
Yes, this 3VA5 series breaker can serve as a replacement for legacy Siemens HFXD63B150 circuit breakers when installed with the appropriate retrofit adapter.
What are the trip unit adjustment ranges for the 3VA5215-6EF31-0AA0?
This breaker features a TM240 (ATAM) thermal-magnetic trip unit. The thermal overload (Ir) is adjustable from 120A to 150A, and the magnetic short-circuit protection (Ii) is adjustable from 750A to 1500A (5 to 10 times the rated current).
What equipment is the 3VA5215-6EF31-0AA0 designed to be installed in?
It is engineered for low-voltage power distribution and is compatible with Siemens 3VA panelboards, switchboards, and approved industrial enclosures.
What breaking capacity class does the 3VA5215-6EF31-0AA0 fall under?
This breaker features a Class H (High) breaking capacity, which provides a 65kA interrupting rating at 480V AC for systems with higher available fault currents.
What global safety standards does the 3VA5215-6EF31-0AA0 comply with?
It is approved for both North American and international applications, carrying a UL 489 listing and complying with IEC 60947-2 standards for low-voltage circuit breakers.
What frame size is the 3VA5215-6EF31-0AA0 built on?
It is built on the Siemens 3VA52 frame. While this specific breaker is rated for 150A, the 3VA52 frame size can accommodate ratings up to 250A.
