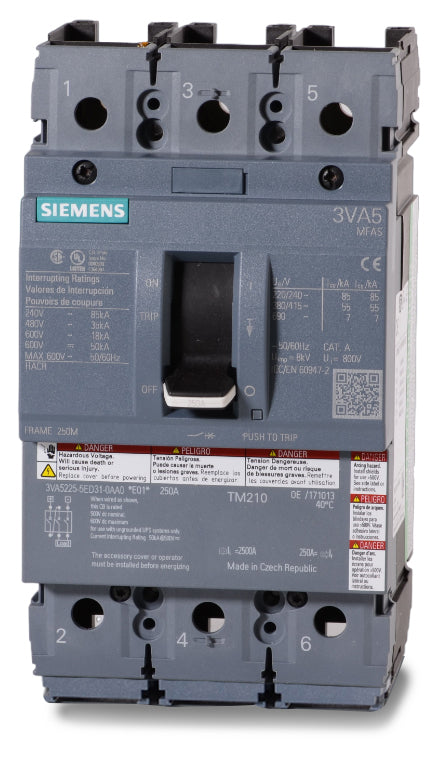

Siemens 3VA5225-5ED31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA5225-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5225-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5225-5ED31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty power distribution, this 250A molded case circuit breaker provides reliable protection for commercial, industrial, and marine environments. It installs into Siemens P1, P2, and P3 panelboards or motor control centers, and is the cross-reference for the legacy FXD63B250. The breaker features a TM210 trip unit with fixed thermal and magnetic settings, offering a Class M breaking capacity of 35kA at 480VAC to safely handle demanding short-circuit conditions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5225-5ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 50kA @ 750VDC |
| Frame Type | 3VA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat legacy Siemens circuit breaker does the 3VA5225-5ED31-0AA0 replace?
This 3VA5 series breaker is the direct cross-reference and modern replacement for the legacy Siemens FXD63B250 FD-frame circuit breaker.
Which Siemens distribution panels are compatible with the 3VA5225-5ED31-0AA0?
This 250-amp breaker is designed to install directly into Siemens P1, P2, and P3 panelboards, as well as SB switchboards and motor control centers.
What is the breaking capacity class for the 3VA5225-5ED31-0AA0?
It features a Class M breaking capacity, which delivers an interrupting rating of 35kA at 480VAC and 18kA at 600VAC.
What type of trip unit is equipped on the 3VA5225-5ED31-0AA0?
It is equipped with a TM210 thermal-magnetic trip unit, providing fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) overcurrent protection.
What frame size does the 3VA5225-5ED31-0AA0 utilize?
It utilizes the Siemens 3VA52 frame, which is the standard 250-amp frame size for the 3VA5 molded case circuit breaker family.
Can the 3VA5225-5ED31-0AA0 be used in DC power systems?
Yes, in addition to standard AC systems, this thermal-magnetic breaker is rated for DC applications up to 750VDC, providing a 50kA interrupting capacity.
What safety standards does the 3VA5225-5ED31-0AA0 meet?
This molded case circuit breaker is UL 489 listed and meets IEC 60947-2 and CSA C22.2 No. 5 standards for reliable circuit protection.
