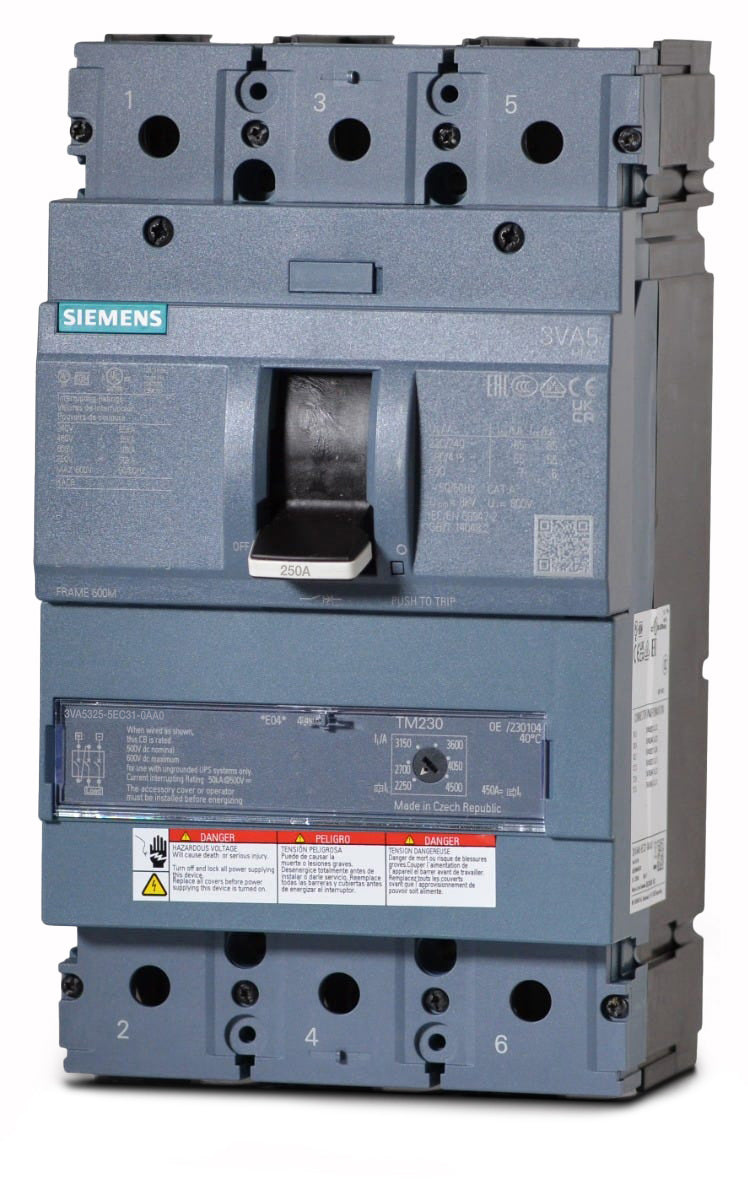

Siemens 3VA5325-5EC31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA5325-5EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5325-5EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5325-5EC31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
The 3VA5325-5EC31-0AA0 is part of the Siemens SENTRON line, where the 3VA53 prefix denotes a 250A frame. Built for commercial and industrial environments, it provides reliable long-time and instantaneous (LI) protection. This panel mount MCCB installs into Siemens P4 and P5 panelboards or switchboards. It serves as a modernized replacement for legacy JXD63B250 breakers. Rated 35kAIC at 480V, it features fixed thermal and adjustable magnetic trip settings. Lugs are sold separately.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | None (Without connection) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, 100% Rated |
Product FAQs
7 answersWhat legacy Siemens circuit breaker does the 3VA5325-5EC31-0AA0 replace?
This 3VA5 series breaker serves as a modernized replacement for the legacy JXD63B250 molded case circuit breaker.
Are lugs included with the 3VA5325-5EC31-0AA0 circuit breaker?
No, the -0AA0 catalog suffix indicates this breaker is shipped without lugs. Line and load lugs must be sourced separately based on your specific conductor requirements.
Which Siemens panelboards accept this 250A breaker?
This breaker is designed for installation in Siemens P4 and P5 panelboards, as well as Siemens switchboards.
How is the trip unit configured on the 3VA5325-5EC31-0AA0?
It features a TM230 thermal-magnetic trip unit with fixed long-time (thermal) overload protection and adjustable instantaneous (magnetic) short-circuit protection.
Can the 3VA5325-5EC31-0AA0 be reverse fed?
Yes, Siemens 3VA5 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
What is the physical frame size of this 250A breaker?
Although configured with a 250A trip unit, this breaker is built on the Siemens 3VA53 frame, which is a 400A physical frame size.
Is this breaker suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for use in DC networks up to 500VDC, providing a 50kA interrupting rating.
