Siemens 3VA5225-6EC31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA5225-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5225-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5225-6EC31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description

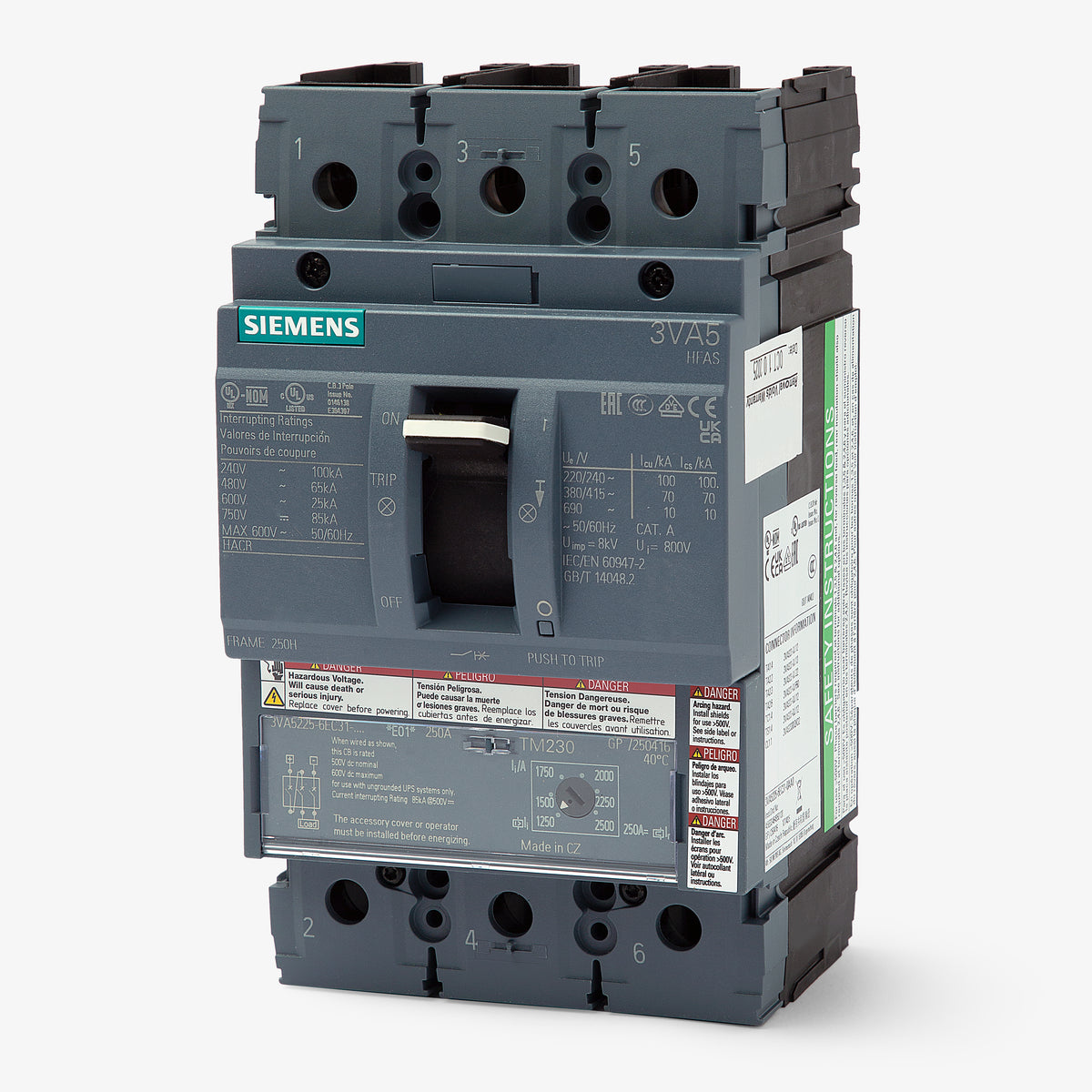

Designed for high-fault applications, the Siemens 3VA5225-6EC31-0AA0 is a 250A molded case circuit breaker equipped with a TM230 trip unit. It installs into Siemens 3VA panelboards, switchboards, and motor control centers, serving as an exact replacement for the legacy HFD63B250. With a robust 65kAIC rating at 480VAC, this 3-pole breaker features fixed thermal and adjustable magnetic trip settings, ensuring reliable, current-limiting performance in commercial and industrial electrical systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5225-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 85kA @ 750VDC |
| Frame Type | 3VA52 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Busbar System |
|---|---|
| Accessories | None (Nut Keeper) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | CCC, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Product FAQs
5 answersWhat are the trip settings on the Siemens 3VA5225-6EC31-0AA0?

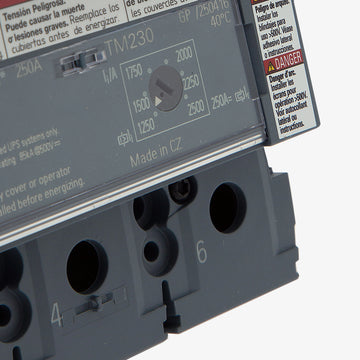

This breaker utilizes a TM230 thermal-magnetic trip unit with Fixed Thermal and Adjustable Magnetic (FTAM) protection. The continuous thermal overload is fixed at 250A. The instantaneous short-circuit pickup is adjustable from 5 to 10 times the rated current, allowing an adjustment range of 1250A to 2500A.
Which legacy Siemens breaker does the 3VA5225-6EC31-0AA0 replace?
It serves as the modern functional equivalent to the legacy HFD63B250, sharing the same 250A rating and 65kAIC at 480VAC interrupting capacity. If upgrading an older panelboard, replacing an FD frame with a 3VA52 frame requires new 3VA-specific mounting hardware.
Does the 3VA5225-6EC31-0AA0 include terminal lugs out of the box?

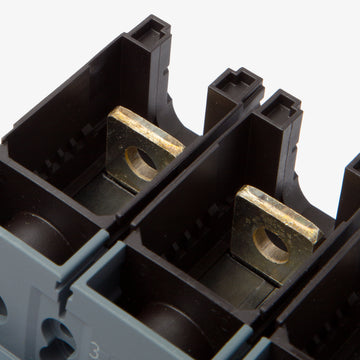

Siemens catalog numbers ending in -0AA0 ship standard with a nut keeper or punched copper bar connection for busbar mounting. If your installation requires mechanical wire lugs, you must install a compatible lug kit before wiring.
What wire lug kits are compatible with this 250A 3VA52 breaker?
For single-cable applications using 6 AWG to 350 kcmil aluminum or copper wire, use the 3VA9233-0JB12 lug kit. If your installation requires two cables per phase, the 3VA9233-0JJ22 kit accepts two 4 AWG to 300 kcmil conductors.
Can the 3VA5225-6EC31-0AA0 be reverse fed?
Yes. Like most Siemens 3VA5 thermal-magnetic circuit breakers, it features a reverse feed construction. It does not have dedicated line and load restrictions, allowing you to safely supply power from either the top or bottom terminals.
