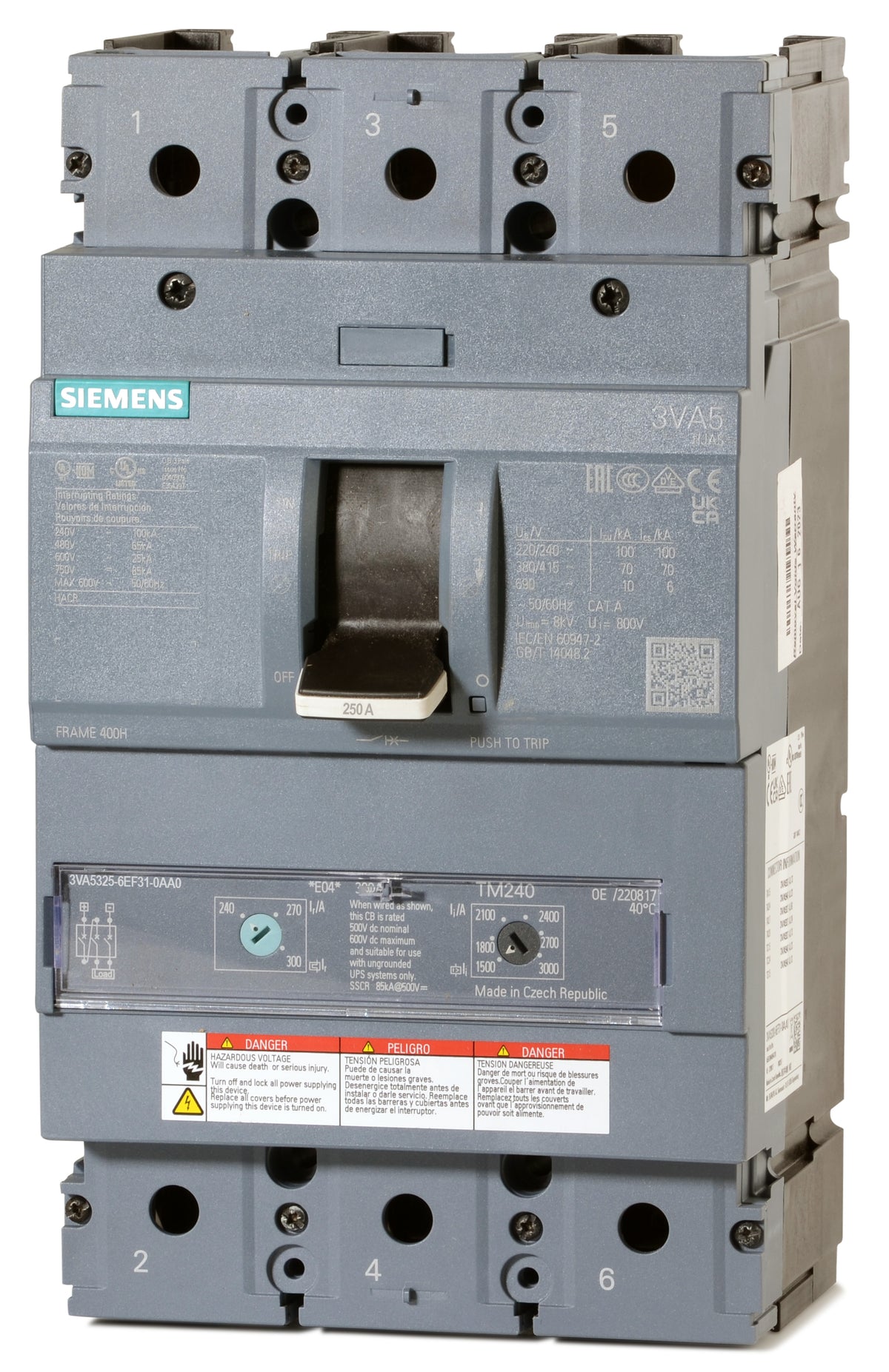

Siemens 3VA5325-6EF31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA5325-6EF31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5325-6EF31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5325-6EF31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the SENTRON 3VA5 series, the Siemens 3VA5325-6EF31-0AA0 is a 3-pole, 250A molded case circuit breaker designed for industrial applications. This unit mounts into Siemens 3VA panelboards, switchboards, and enclosures. It can also replace legacy HHJD63B250 breakers when used with the proper retrofit hardware. It features a TM240 thermal-magnetic trip unit with fully adjustable long-time and instantaneous (LI) settings, alongside a 65kAIC rating at 480V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5325-6EF31-0AA0 |
| Series | 3VA5 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 500VDC |
| Amperage Range | 175-250A |
|---|
| Frame Type | 3VA53 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lugs |
|---|---|
| Accessories | Nut Keeper |
| Standards | IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
3 answersWhich legacy Siemens circuit breaker does the 3VA5325-6EF31-0AA0 replace?
This model can replace the discontinued HHJD63B250 circuit breaker when installed with the appropriate retrofit hardware.
What is the maximum frame capacity of the 3VA5325-6EF31-0AA0?
This breaker utilizes the Siemens 3VA53 frame, which supports a maximum capacity of 400A, although this specific unit is factory rated for a 250A continuous current.
What type of trip unit is equipped on this breaker?
It features a TM240 thermal magnetic trip unit. This provides fully adjustable long time (thermal) and adjustable instantaneous (magnetic) protection settings to coordinate with specific load requirements.
