Siemens 3VA5335-6EC31-0AA0 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Panel Mount
Siemens
3VA5335-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5335-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

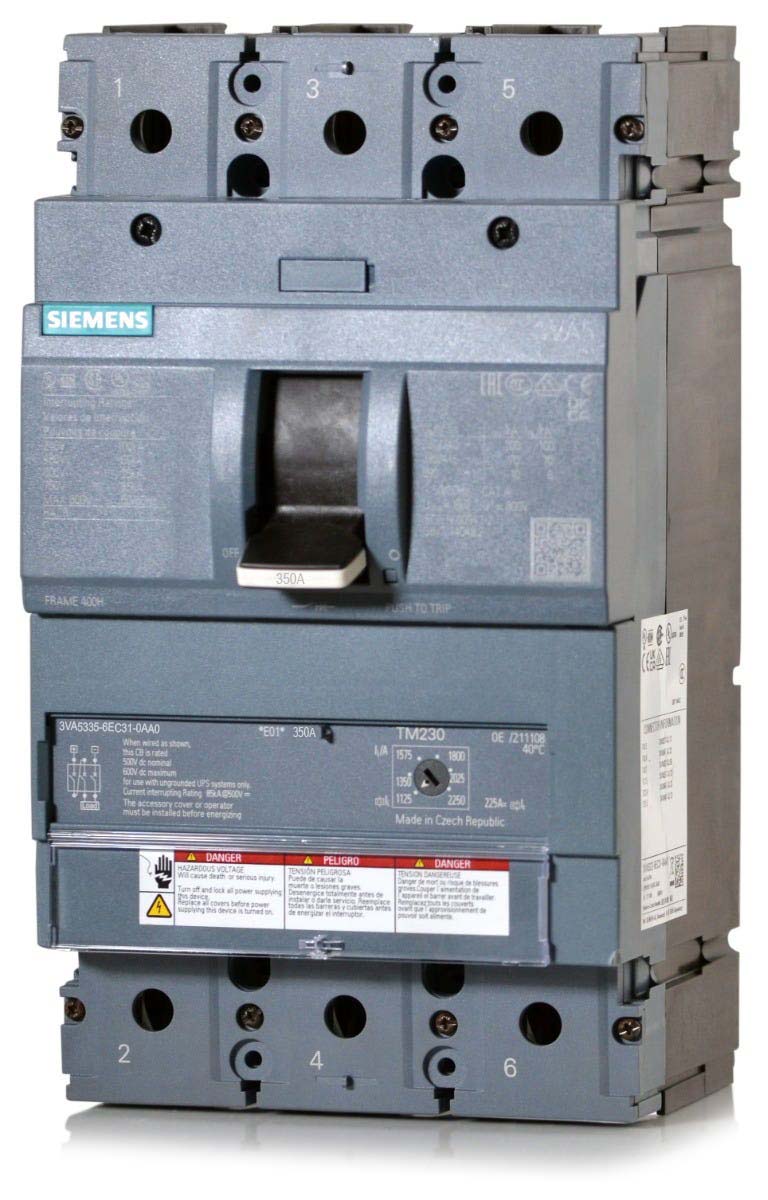

Siemens 3VA5335-6EC31-0AA0 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
350A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Delivering high-capacity Class H interruption, this 350A molded case circuit breaker is designed for demanding commercial and industrial environments. It features a TM230 thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings for LI protection. The breaker mounts into Siemens 3VA, P1, P2, and P3 panelboards, and serves as a substitute for legacy HJD63B350 units. Rated 65kAIC at 480VAC, it is HACR rated, current limiting, and supplied without lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5335-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC |
| Frame Type | 3VA53 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, P1/P2/P3 Panelboards (requires strap kit), Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersCan the 3VA5335-6EC31-0AA0 replace older Siemens JD frame breakers?
Yes, the 3VA53 frame serves as a substitute for legacy Siemens JD frame breakers, including the HJD63B350. When retrofitting into existing P1, P2, or P3 panelboards, a specific 3VA connection strap kit is required.
Are terminal lugs included with this circuit breaker?
No, the -0AA0 suffix in the catalog number indicates that this breaker is supplied without lugs. Line and load lugs must be sourced separately based on your conductor size and material.
Can the trip unit on the 3VA5335-6EC31-0AA0 be adjusted?
Yes, the TM230 thermal-magnetic trip unit features an adjustable magnetic (instantaneous) setting to coordinate short-circuit protection. However, the thermal (long-time) overload setting is fixed at 350A.
What hardware is required to mount this breaker in a Siemens P-series panelboard?
To install this 3VA53 frame breaker into Siemens P1, P2, or P3 panelboards, you must use a compatible 3VA strap kit. It will not mount using legacy JD frame strap kits.
What does the Class H breaking capacity mean for this breaker?
The Class H designation indicates a high interrupting rating, specifically providing 65kAIC at 480V and 25kAIC at 600V, making it suitable for commercial and industrial systems with higher available fault currents.
What is the maximum frame size for the 3VA5335-6EC31-0AA0?
This breaker belongs to the 3VA53 frame group, which has a 400A maximum frame size. This specific unit is factory-calibrated with a 350A fixed thermal trip.
Can the 3VA5335-6EC31-0AA0 be reverse fed?
Yes, this thermal-magnetic breaker is suitable for reverse-feed applications. Always verify your specific panelboard labeling and local NEC requirements before backfeeding.
