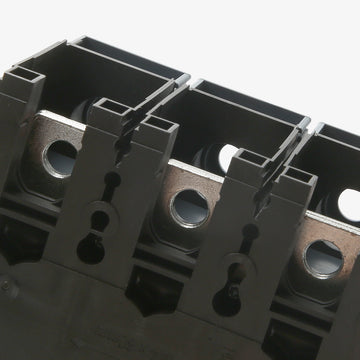

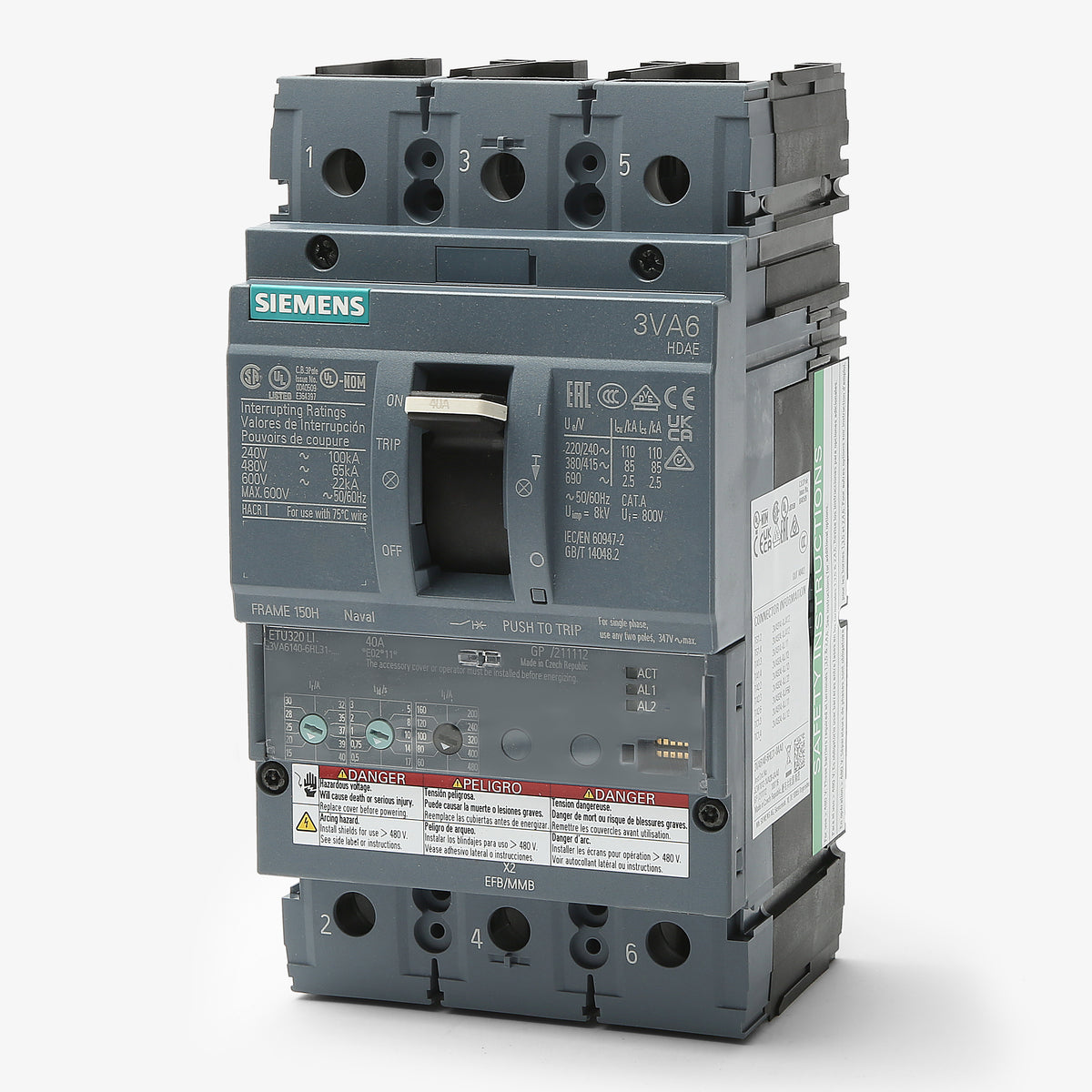

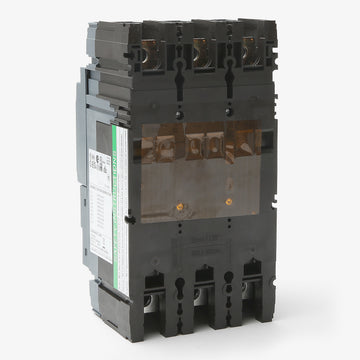

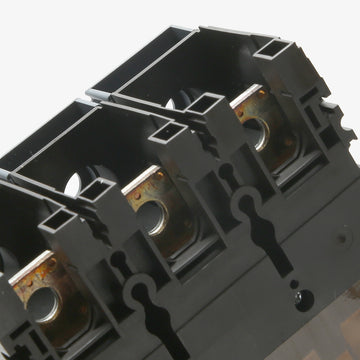

Siemens 3VA6140-6HL31-0AA0 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
3VA6140-6HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6140-6HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6140-6HL31-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for high-fault applications, this 40A molded case circuit breaker offers a robust Class H breaking capacity of 65kAIC at 480VAC. It utilizes an ETU320 LI electronic trip unit, providing reliable microprocessor-based sensing for long-time and instantaneous protection functions. The device mounts into Siemens P2, P3, P4, and P5 panelboards and switchboards for commercial and industrial use.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6140-6HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 16-40A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Padlock Attachment, Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
5 answersWhat panelboards are compatible with the 3VA6140-6HL31-0AA0 breaker?
This Siemens SENTRON 3VA6 breaker is designed for use in Siemens P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
Does the 3VA6140-6HL31-0AA0 come with wire lugs?
No. The -0AA0 suffix in the catalog number indicates this breaker is shipped without lugs. You will need to order line and load lug kits separately based on your specific wire size and conductor material.
What trip unit is included with the 3VA6140-6HL31-0AA0?
This breaker is equipped with a solid-state ETU320 electronic trip unit. It features adjustable dials for Long-Time (L) overload protection and Instantaneous (I) short-circuit protection, offering more precise coordination than standard thermal-magnetic models.
What is the frame size of the 3VA6140-6HL31-0AA0?
Although this specific circuit breaker has a continuous current rating of 40A, it is built on the Siemens 3VA61 platform, which utilizes a 150A frame size.
What does the H stand for in the 3VA6140-6HL31-0AA0 catalog number?
The H denotes a High Breaking Capacity (Class H) frame. For the 3VA61 series, the Class H designation corresponds to its 65kA interrupting rating at 480VAC.
