Siemens 3VA6140-6HN31-0AA0 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
3VA6140-6HN31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6140-6HN31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

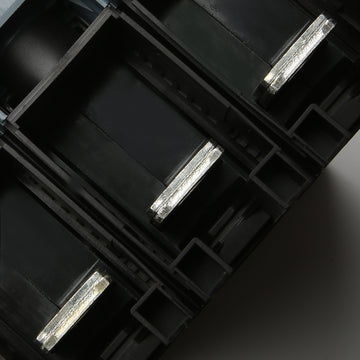

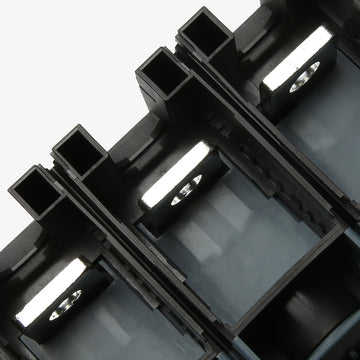

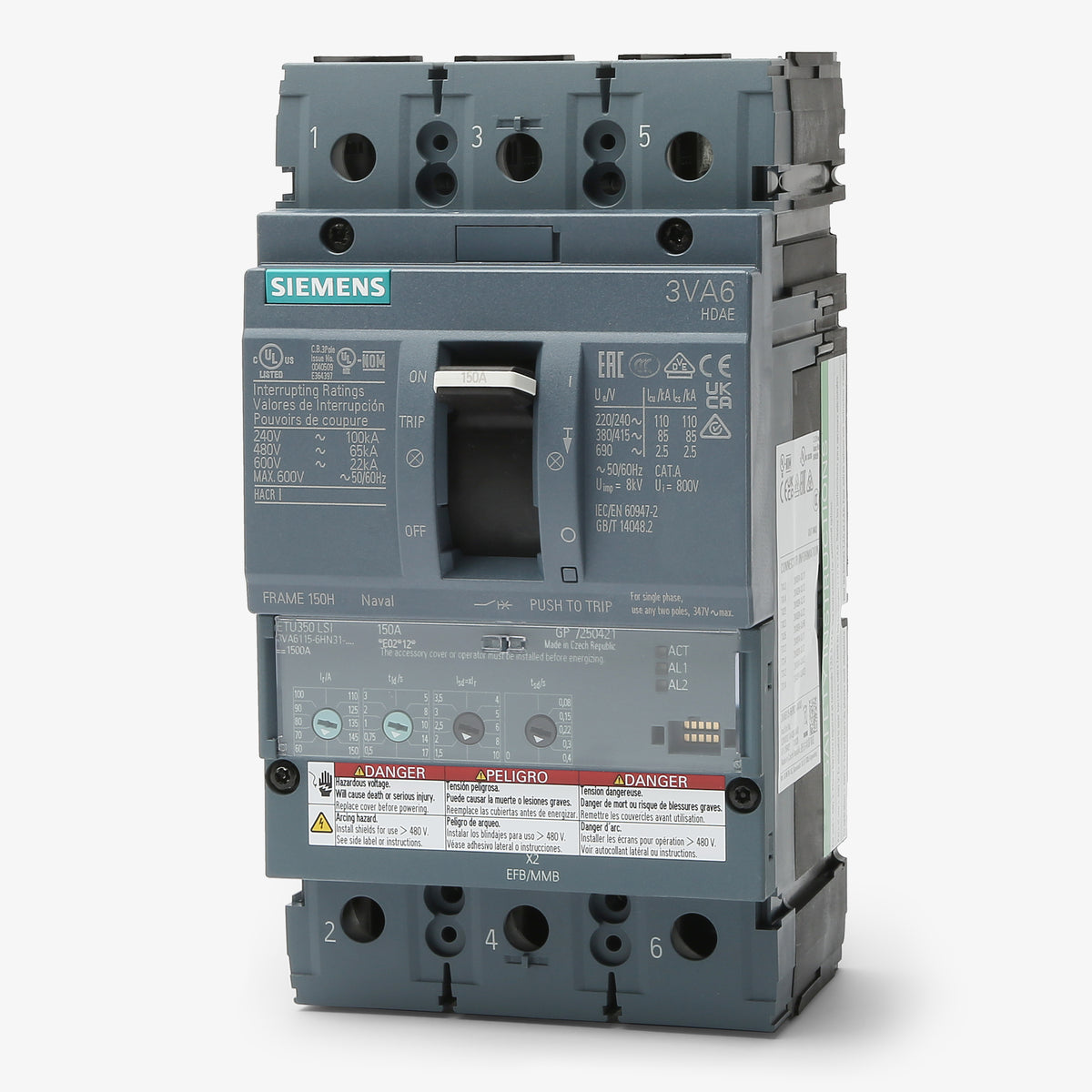

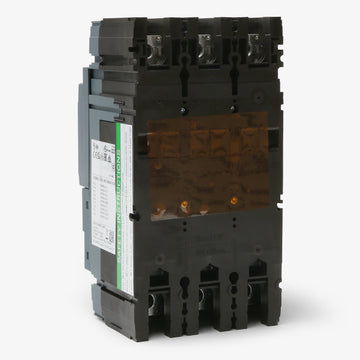

Siemens 3VA6140-6HN31-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron 3VA6 family, the Siemens 3VA6140-6HN31-0AA0 delivers reliable 40A, 3-pole protection for industrial power distribution. This panel-mount breaker installs into Siemens switchboards and motor control centers. It utilizes a 150A frame size (lugs not included). Rated 65 kAIC at 480V, it features an ETU350 electronic trip unit with adjustable LSI settings. This microprocessor-based sensing ensures superior coordination over standard thermal-magnetic alternatives.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 16-40A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat frame size does the 3VA6140-6HN31-0AA0 circuit breaker use?
This breaker is built on the Siemens 3VA61 frame, which is a 150A frame size. It is designed for integration into Siemens panelboards, switchboards, and motor control centers.
What type of trip unit is installed in the 3VA6140-6HN31-0AA0?
It features an ETU350 electronic trip unit with adjustable LSI settings. This microprocessor-based unit allows panel builders to independently adjust the Long-Time, Short-Time, and Instantaneous trip functions for accurate selective coordination.
Can the 3VA6140-6HN31-0AA0 be used in DC electrical networks?
No, this specific circuit breaker is rated for AC voltage only, with a maximum rating of 600V AC.
Are there alternate catalog numbers for the 3VA6140-6HN31-0AA0?
Yes, this breaker is frequently listed without the hyphens as 3VA61406HN310AA0 in procurement systems and cross-reference databases.
What safety standards does the 3VA6140-6HN31-0AA0 meet?
This molded case circuit breaker is UL Listed and certified to UL 489 standards for safe use in low-voltage power distribution applications.
