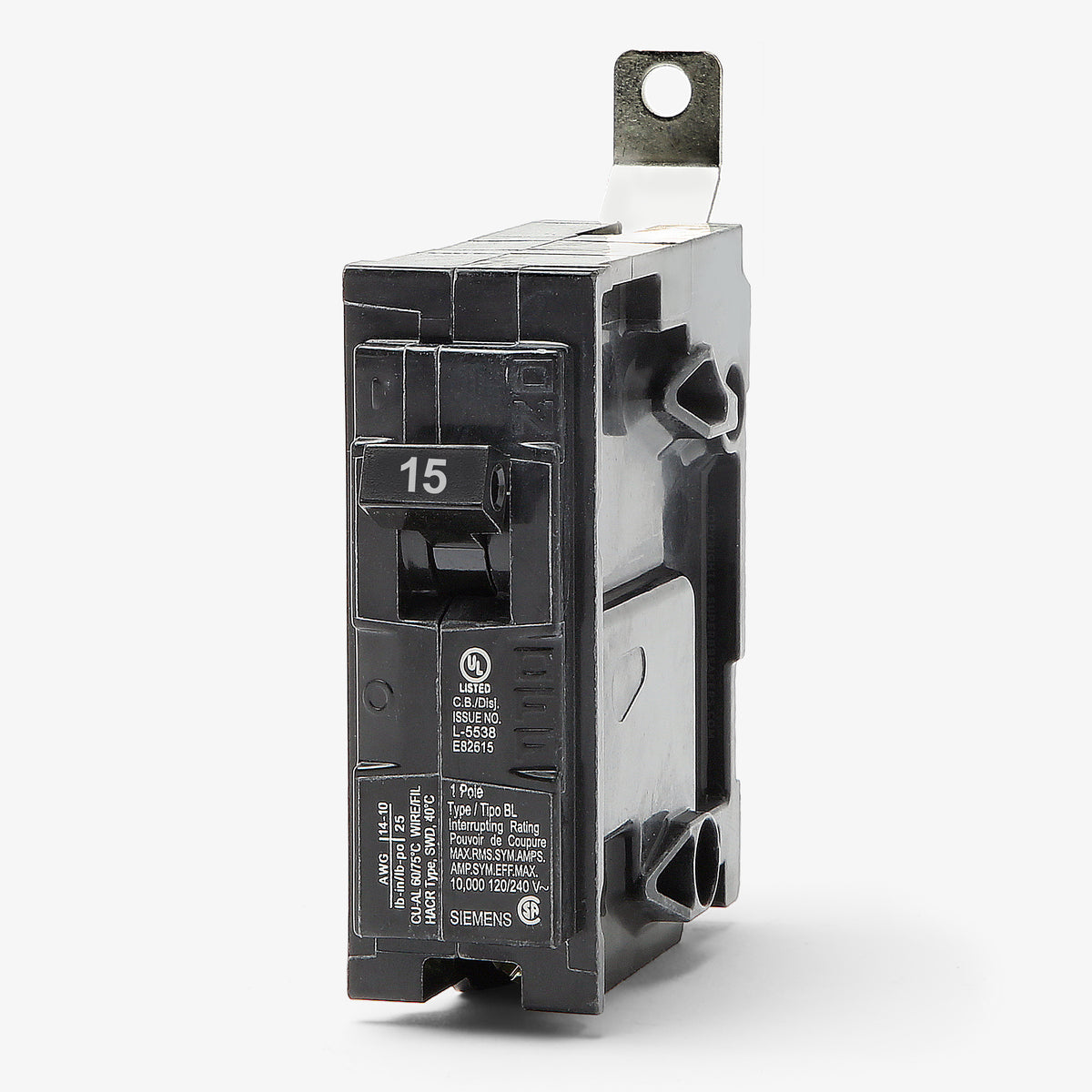

Siemens B115 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
B115
Molded Case Circuit Breaker
Brand
Siemens
SKU
B115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B115-R |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Insta-Wire (Factory Included) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Sold out
Quantity
Siemens B115 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B115-R |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Insta-Wire (Factory Included) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Supplying reliable overcurrent defense for commercial facilities, this 15A thermal-magnetic breaker operates within the proven BL family. It provides standard long-time and instantaneous trip functions. Designed specifically for bolt-on applications, it fastens securely into Siemens P1, P2, P3, P4, and P5 panelboards. The unit accepts 14-10 AWG copper or 12-10 AWG aluminum wiring via standard lug terminals. Factory certifications include HACR and SWD for versatile load management.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B115-R |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Insta-Wire (Factory Included) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
4 answersWhat panelboards accept the Siemens B115 circuit breaker?
The B115 bolts directly into Siemens P1, P2, P3, P4, and P5 series panelboards. Because it utilizes a bolt-on mounting configuration, it cannot be installed in standard plug-on residential load centers.
Does the B115 carry SWD or HACR ratings?
Yes, this breaker is both SWD (Switching Duty) and HACR rated. It is approved for switching 120V fluorescent lighting circuits and for use with commercial heating, air conditioning, and refrigeration equipment.
Is the Siemens B115 a direct replacement for older ITE B115 breakers?
Yes. Because Siemens acquired the ITE and Gould brands, the current Siemens B115 is the exact manufacturer approved replacement for older ITE B115 and Gould B115 bolt-on circuit breakers.
How much panel space does the B115 require?
As a standard BL series 1 pole breaker, it requires exactly 1 inch of space on the panelboard bus.
