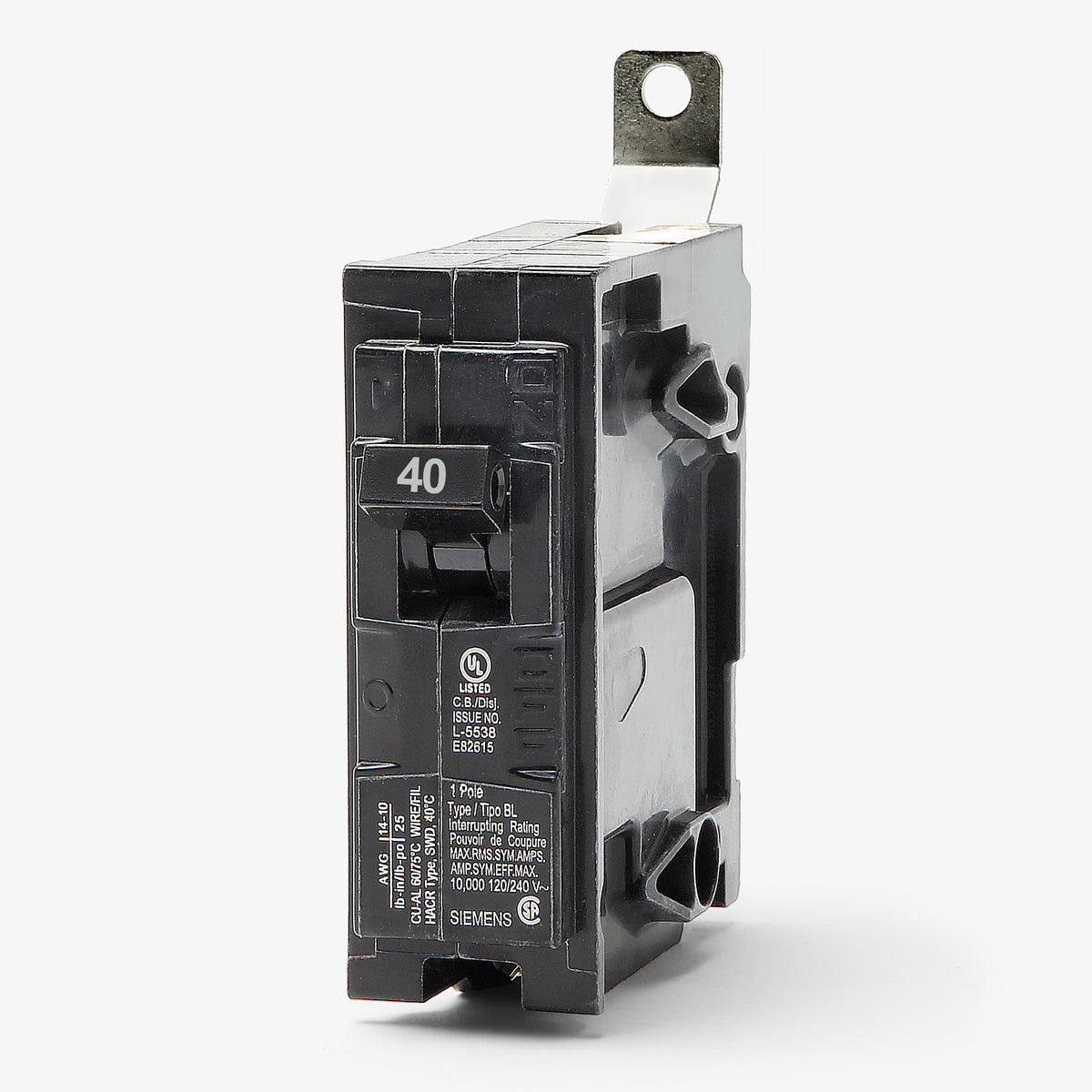

Siemens B140 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Siemens
B140
Molded Case Circuit Breaker
Brand
Siemens
SKU
B140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B140 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B140 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B140 |
| Series | BL |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Siemens B140 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B140-R |
| Series | BL |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Built for robust commercial and industrial use, this 40-amp BL series breaker delivers dependable power distribution. The bolt-on design mounts into Siemens P1, P2, P3, P4, and P5 panelboards. It also acts as a substitute for BAB1040, QOB140, and THQB1140 models when cross-referencing compatible systems. Equipped with fixed thermal-magnetic trip units, it ensures precise long-time and instantaneous (LI) protection. The unit is HACR rated and provides a 10kAIC interrupting capacity at 120/240VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B140 |
| Series | BL |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens B140 circuit breaker?
The B140 is a bolt-on breaker designed specifically for Siemens P1, P2, P3, P4, and P5 commercial panelboards. It is not designed for standard plug-on load centers.
Can I install the B140 in a standard residential load center?
No. The B140 is a BL series bolt-on breaker intended for commercial panelboards. Residential load centers typically require plug-on breakers, such as the Siemens QP series.
Is the Siemens B140 breaker HACR rated?
Yes, the B140 is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific type of branch circuit protection.
Are there versions of the B140 with a higher interrupting rating?
Yes. The standard B140 has a 10kAIC rating at 120/240VAC. If your application requires a higher interrupting capacity, you can source the B140H for 22kAIC or the B140HH for 65kAIC.
How does the thermal-magnetic trip unit in the B140 operate?
The B140 features a fixed thermal-magnetic trip unit with LI (Long-Time and Instantaneous) functions. The thermal component provides delayed tripping for sustained overloads, while the magnetic component trips instantaneously during short-circuit events.
