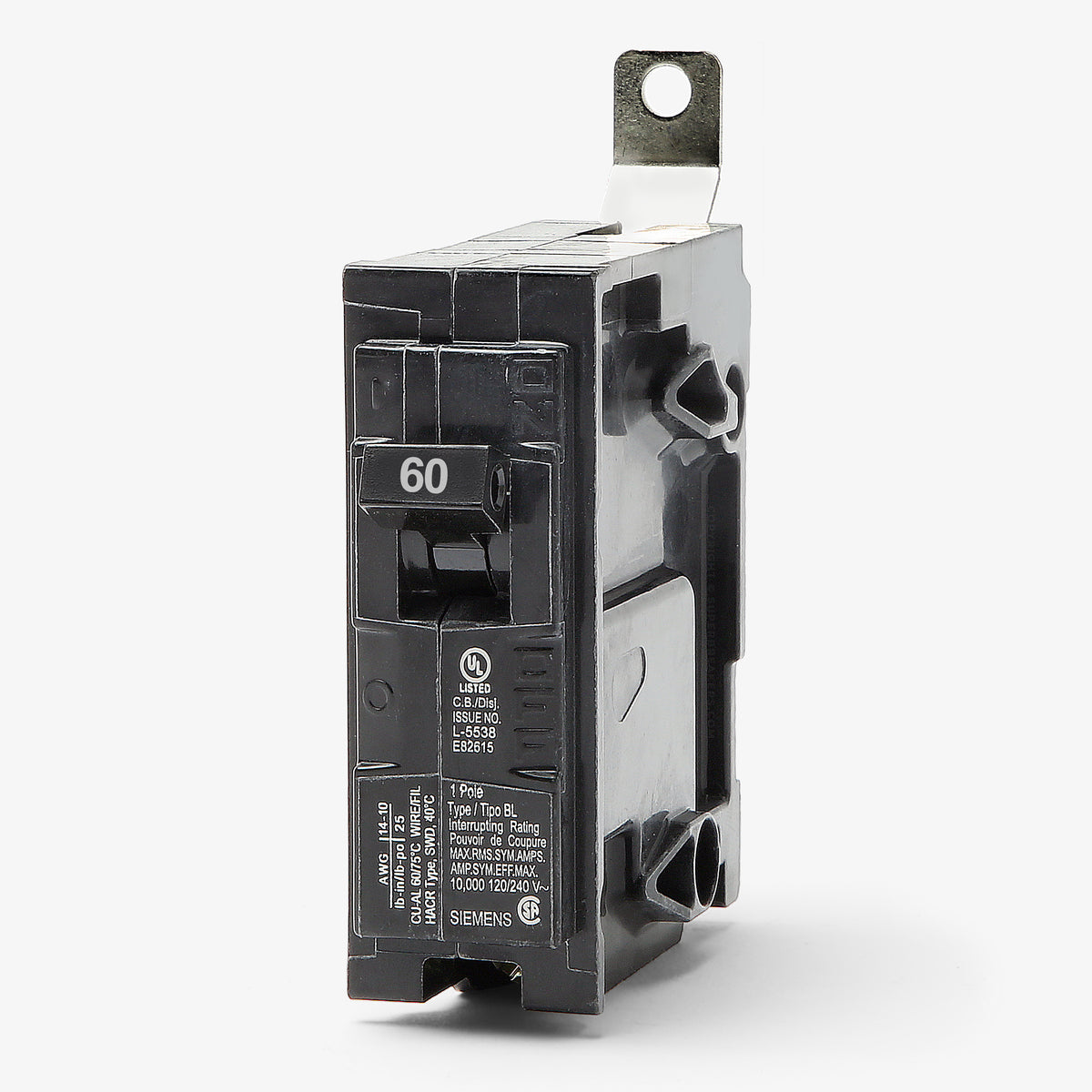

Siemens B160 Molded Case Circuit Breaker
- 60A
- 1 Pole

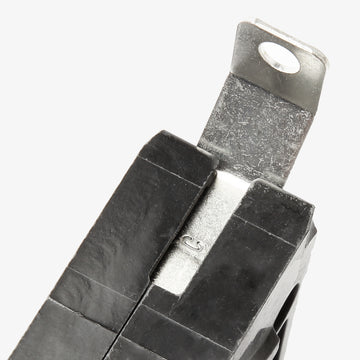

- Bolt-On
Siemens
B160
Molded Case Circuit Breaker
Brand
Siemens
SKU
B160
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B160 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B160 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B160 |
| Series | BL |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | #6-4 AWG (Cu), #6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens B160 - 60A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B160-R |
| Series | BL |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | #6-4 AWG (Cu), #6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
40A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Part of the Siemens BL family, this 60-amp single-pole molded case circuit breaker provides standard thermal-magnetic protection for commercial and industrial facilities. It installs into Siemens P1, P2, P3, P4, and P5 panelboards using a secure bolt-on connection. Rated for 10kA interrupting capacity at 120/240VAC, the unit features a fixed trip mechanism and carries an HACR rating for heating, air conditioning, and refrigeration equipment circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B160 |
| Series | BL |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | #6-4 AWG (Cu), #6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhich panelboards are compatible with the Siemens B160 circuit breaker?
The B160 is a bolt-on BL series breaker designed specifically for Siemens P1, P2, P3, P4, and P5 commercial panelboards. It cannot be installed in standard plug-on residential load centers.
What is the plug-on equivalent to the B160 for residential load centers?
For standard Siemens residential load centers that require a plug-on connection, use the QP series equivalent, catalog number Q160.

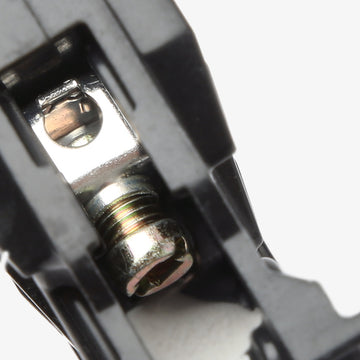

What wire sizes do the factory lugs on the B160 accept?
The included load-side lugs accept #6 to #4 AWG copper or aluminum conductors.
Are the trip settings on the B160 adjustable?
No. This thermal-magnetic breaker features fixed thermal and fixed magnetic trip points, providing standard long-time and instantaneous (LI) protection.
