Siemens B260 Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
B260
Miniature Circuit Breaker
Brand
Siemens
SKU
B260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Siemens B260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B260 |
| Series | BL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Sold out
Quantity
Siemens B260 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B260-R |
| Series | BL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Similar Items
40A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Engineered for dependable performance, the Siemens B260 is a 60A, two-pole bolt-on circuit breaker suitable for various commercial environments. It delivers standard 10kAIC interrupting capacity at 120/240VAC to safeguard branch circuits against damaging overcurrents. This BL-frame breaker is fully compatible with Siemens P1 through P5 panelboards. It comes equipped with Insta-Wire connections for efficient installation and carries a HACR rating for use with heating and cooling equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B260 |
| Series | BL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Product FAQs
4 answersCan I use the Siemens B260 in a standard residential load center?
No. The B260 is a bolt-on circuit breaker designed specifically for commercial and industrial panelboards, including the Siemens P1 through P5 series. Standard residential load centers typically require plug-on breakers, such as the Siemens QP or QT series.
Is the Siemens B260 a direct replacement for older I-T-E B260 breakers?
Yes. Siemens acquired I-T-E and continues to produce the BL series to the same physical and electrical specifications. The Siemens B260 directly replaces an original I-T-E B260 or BL260 two-pole bolt-on breaker.
Does the Siemens B260 carry an HACR rating?
Yes, this BL-frame breaker is HACR rated. It is officially certified by UL for safe operation with heating, air conditioning, and refrigeration equipment branch circuits.

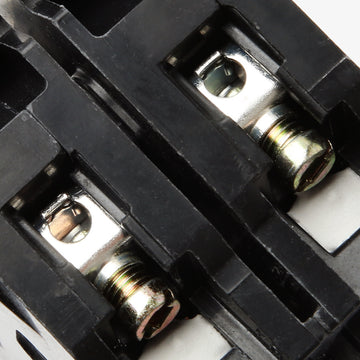

What is the benefit of the Insta-Wire connectors on the B260?
The Siemens B260 comes equipped with Insta-Wire technology, meaning the terminal screws are shipped fully backed out. This allows electricians to immediately insert the stripped conductors and torque them down, significantly speeding up panelboard installations.
