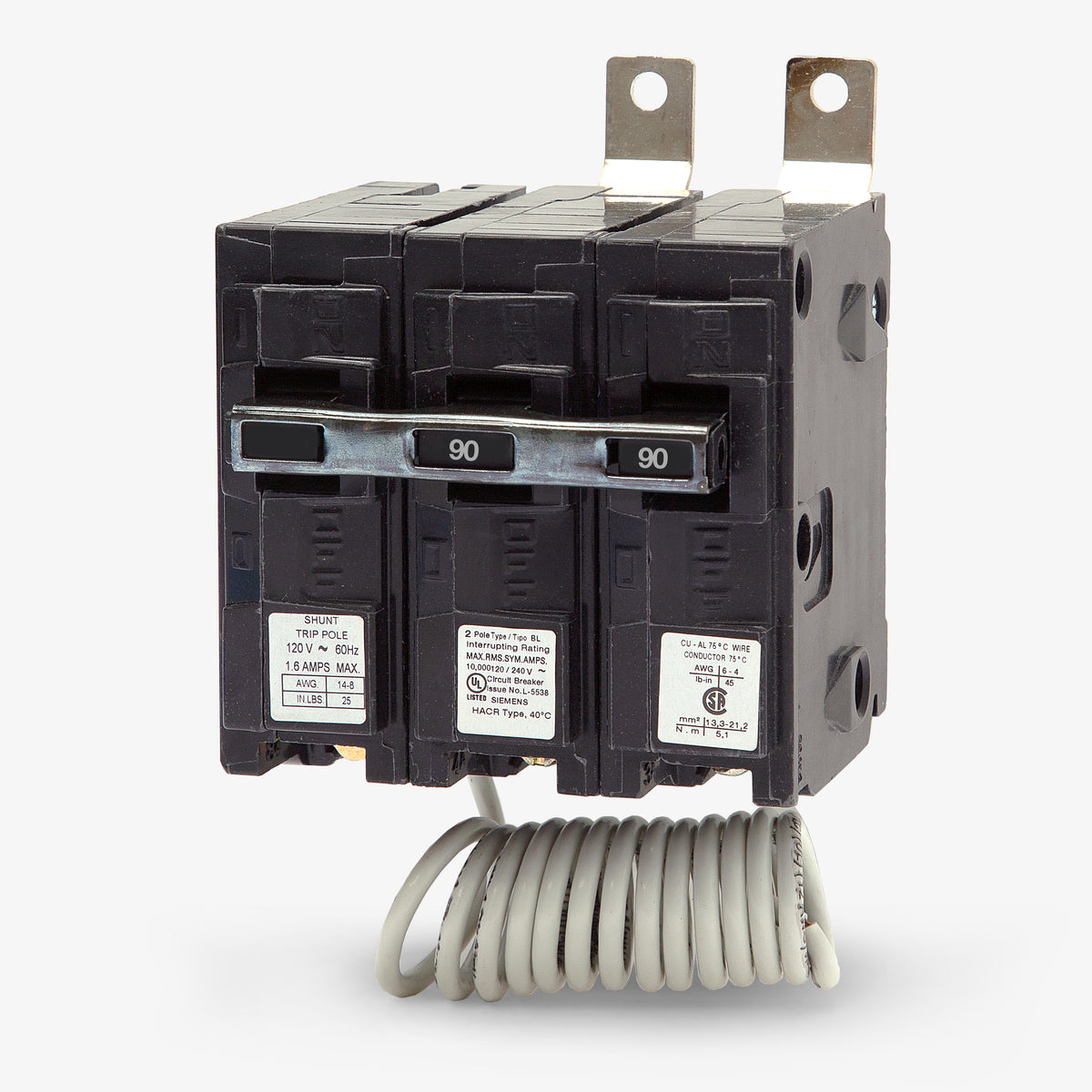

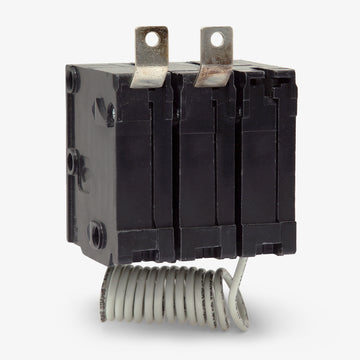

Siemens B29000S01 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
B29000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B29000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B29000S01 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 90-amp, two-pole breaker integrates a 120VAC shunt trip to facilitate remote circuit disconnection. It fastens into Siemens P1 panelboards, utilizing a bolt-on configuration that prevents loose connections in high-vibration environments. With a standard 10kAIC rating at 120/240VAC, the unit provides reliable thermal-magnetic protection and is HACR rated for use with dedicated HVAC motor loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B29000S01 |
| Series | B |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
7 answersWhat panelboards are compatible with the Siemens B29000S01?

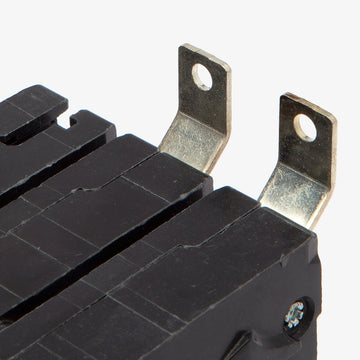

This bolt-on breaker is designed specifically for Siemens P1 panelboards. The bolted connection secures directly to the bus bar, providing a reliable contact that resists loosening in high-vibration commercial environments.
Does the B29000S01 include a shunt trip?

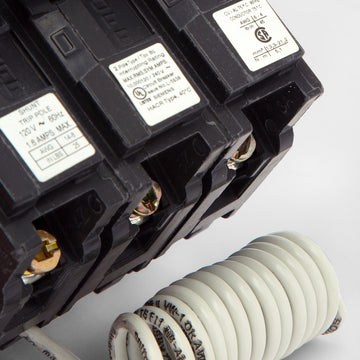

Yes, this specific catalog number integrates a 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely, which is essential for emergency power-off systems or automated circuit disconnection.
Is this breaker rated for HVAC equipment?
Yes, the B29000S01 is HACR rated. This means it is certified for use with heating, air conditioning, and refrigeration motor loads, providing the necessary delay to handle motor inrush currents without nuisance tripping.
Can this breaker be installed in a standard residential load center?
No. This is a bolt-on molded case circuit breaker built for commercial panelboards, such as the Siemens P1 series. It will not fit in standard residential plug-on load centers.
What frame type and series does this breaker belong to?
The B29000S01 is part of the Siemens B frame family and falls under the BL series of molded case circuit breakers.
What do the LI trip functions indicate on this breaker?
The LI designation means the thermal magnetic trip unit includes long-time and instantaneous protection. The long-time function protects against sustained overloads, while the instantaneous function immediately clears severe short circuits.
Are there any alternate part numbers for this breaker?
While B29000S01 is the primary Siemens catalog number, it is occasionally cross-referenced by suppliers under the part number 6EVR7.
