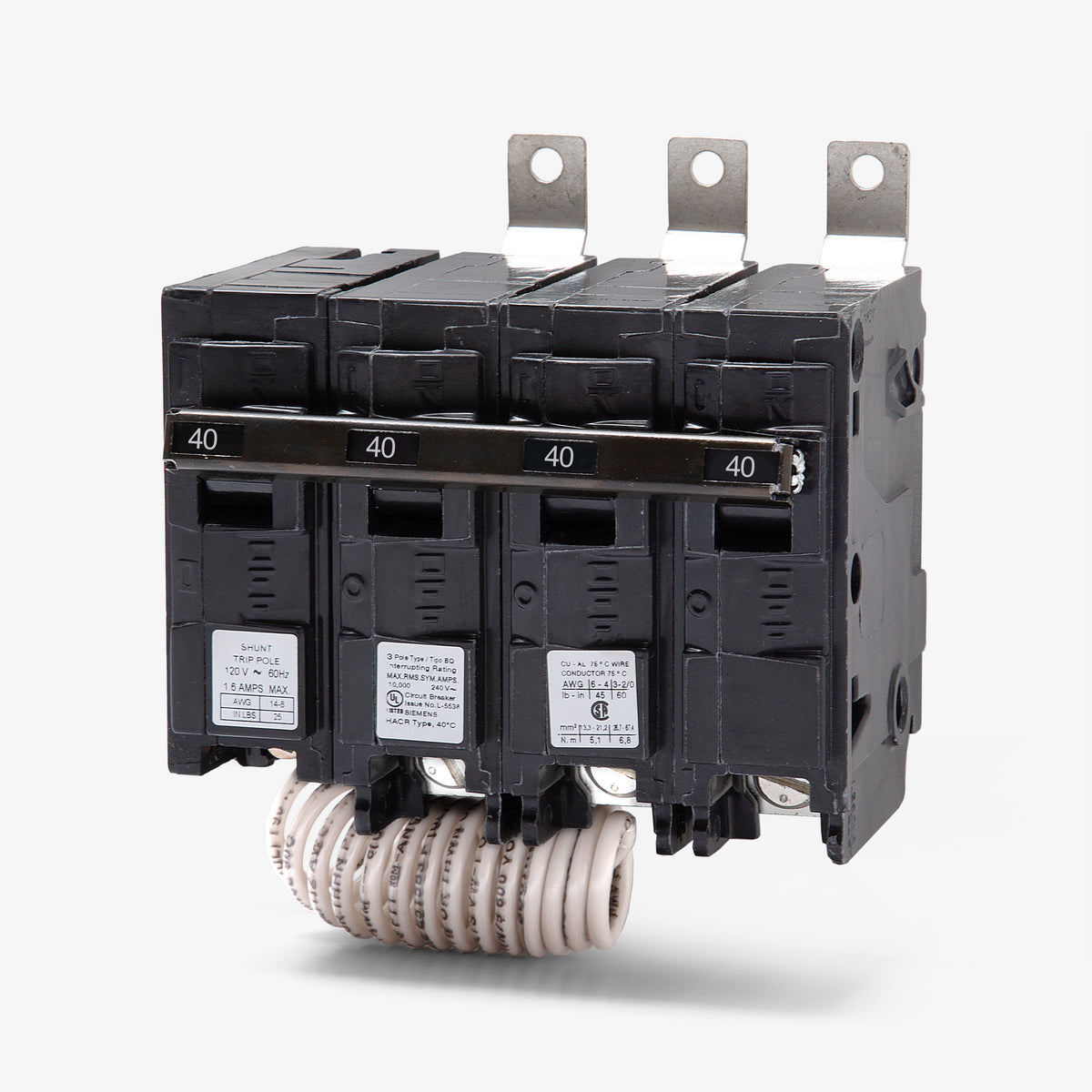

Siemens B34000S01 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens
B34000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B34000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B34000S01 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B34000S01 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B34000S01 |
| Series | BL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Siemens B34000S01 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B34000S01-R |
| Series | BL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the BL series, the Siemens B34000S01 is a three-pole, 40-amp molded case circuit breaker built for commercial and industrial distribution. It features a factory-installed 120VAC shunt trip for remote tripping capabilities, adding critical control to your electrical system. This unit installs into Siemens P1, P2, P3, P4, and P5 panelboards using a secure bolt-on mounting style. Rated for 10 kAIC at 240VAC, it utilizes proven thermal-magnetic trip technology for robust performance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B34000S01 |
| Series | BL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens B34000S01?
This bolt-on circuit breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards.
What does the 00S01 suffix indicate on the B34000S01 catalog number?
The 00S01 suffix designates that this breaker includes a factory-installed 120VAC shunt trip, allowing for remote tripping of the circuit.
What are the acceptable wire sizes and materials for the lugs on this breaker?
The terminal lugs accept 8 to 6 AWG copper (Cu) wire or 8 to 4 AWG aluminum (Al) wire.
What type of protection does the LI trip function provide?
The LI (Long-Time and Instantaneous) designation indicates that this thermal magnetic breaker provides standard protection against both sustained overloads and sudden short circuits.
What safety certifications apply to this BL series breaker?
This breaker is UL Listed, CSA Certified, NOM Certified, and HACR rated for use with heating, air conditioning, and refrigeration equipment.
