Siemens B35000S01 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Siemens
B35000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B35000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

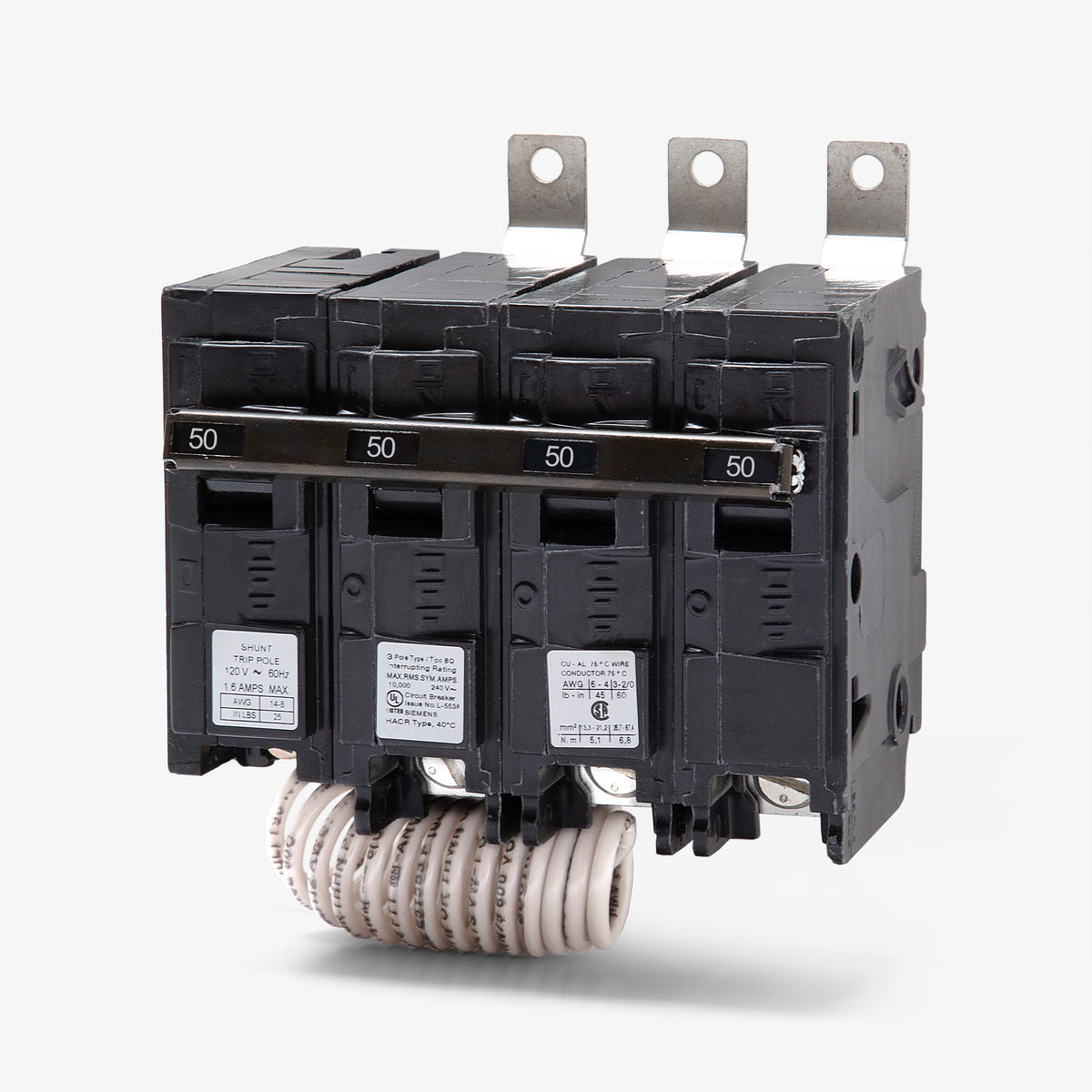

Siemens B35000S01 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens B35000S01 is a 3-pole, 50A molded case circuit breaker from the BL family. It delivers reliable thermal-magnetic protection for demanding electrical systems. This unit installs into Siemens P1, P2, P3, P4, and P5 panelboards using a standard bolt-on mounting style. It accepts 8-6 AWG copper or 8-4 AWG aluminum wire via lug terminals. Rated for 10kAIC at 240VAC, it includes a factory-installed 120VAC shunt trip.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B35000S01 |
| Series | BL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |

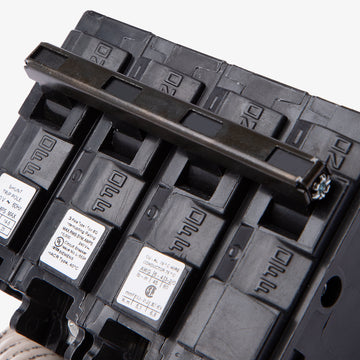

| Available Options | Padlock Attachment, Handle Tie |
|---|---|

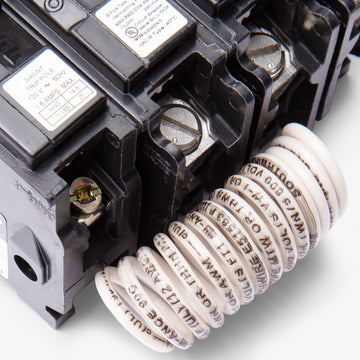

| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersCan the B35000S01 be installed in a standard residential load center?
No, this is a bolt-on breaker designed specifically for commercial Siemens P1, P2, P3, P4, and P5 panelboards. It will not fit in residential load centers that require plug-on style breakers.
What does the 00S01 suffix indicate on this Siemens BL series breaker?
The 00S01 suffix signifies that the breaker includes a factory-installed 120VAC shunt trip, allowing it to be tripped remotely via a control signal.
What wire sizes are accepted by the lugs on the B35000S01?
The terminal lugs are rated to accept 8 to 6 AWG copper wire or 8 to 4 AWG aluminum wire.
Can the trip settings on the B35000S01 be adjusted in the field?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous (LI) overcurrent protection settings are factory set and cannot be adjusted.
