Siemens B345H Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Siemens
B345H
Molded Case Circuit Breaker
Brand
Siemens
SKU
B345H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

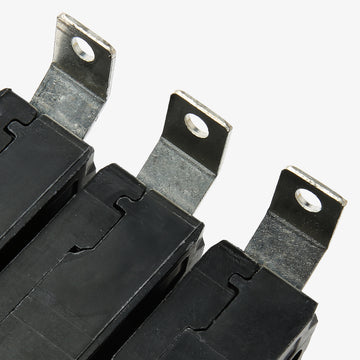

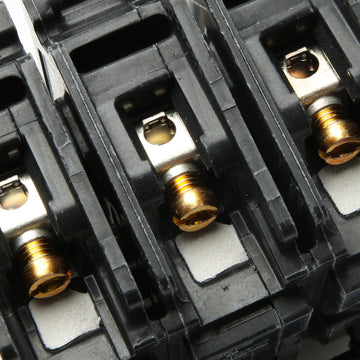

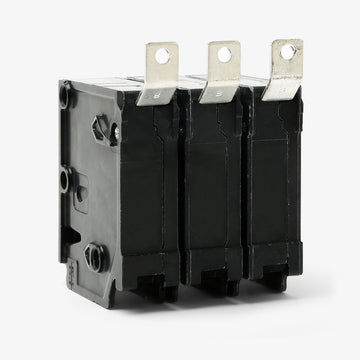

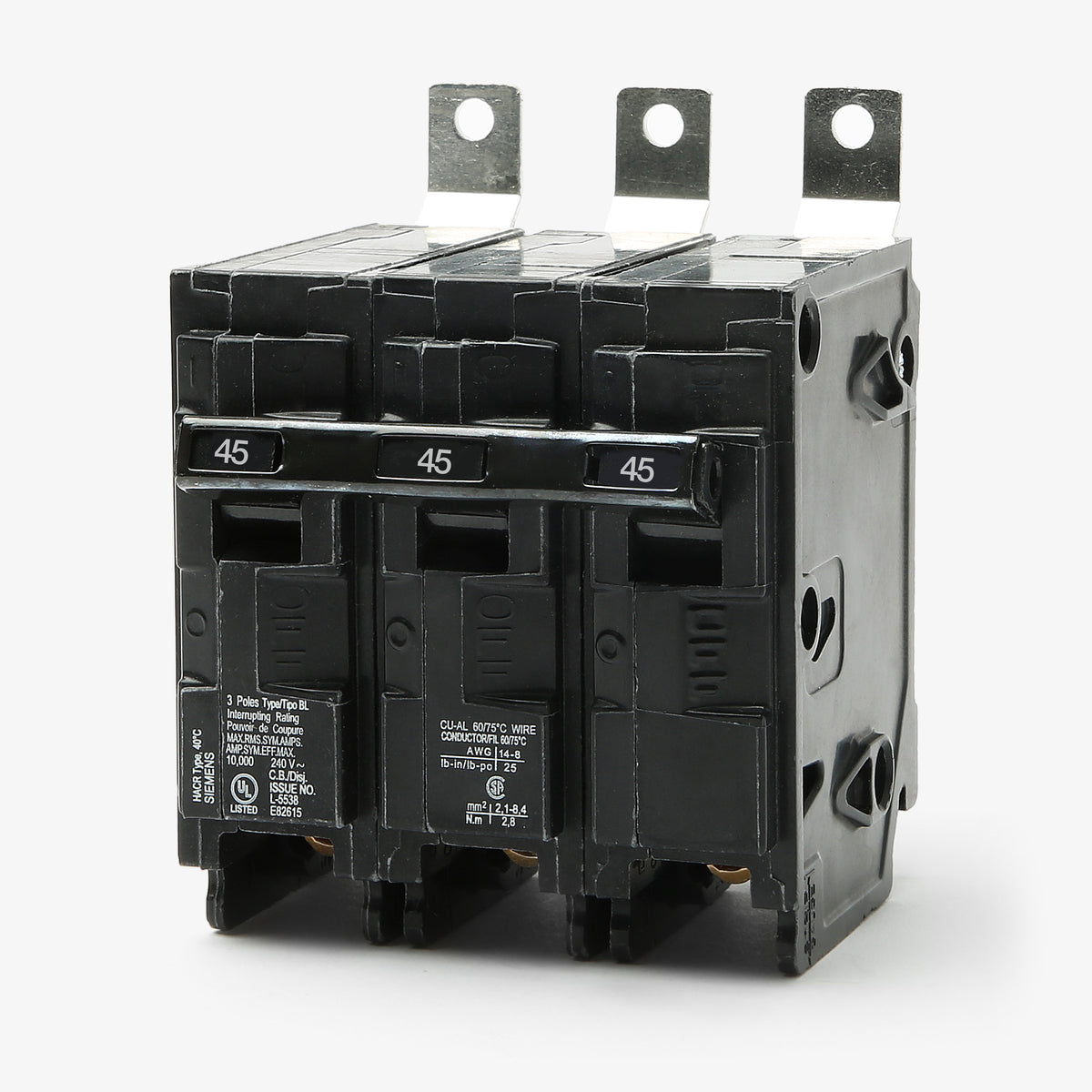

Siemens B345H - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Designed for systems requiring higher interrupting capacity, this 45A BLH-type molded case circuit breaker delivers 22kAIC protection at 240VAC. It mounts securely into Siemens P1, P2, P3, P4, and P5 panelboards, utilizing a bolt-on connection for maximum stability in commercial environments. The thermal-magnetic trip unit provides precise long-time and instantaneous overcurrent protection. It is HACR rated and serves as an excellent substitute for QOB345VH and THHQB32045 breakers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B345H |
| Series | BLH |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
4 answersWhat is the difference between Siemens BL and BLH series breakers?
The difference lies in their short circuit interrupting capacity. The standard BL series is rated for 10kAIC, while the BLH series provides a higher 22kAIC rating at 240VAC for commercial systems with higher available fault currents.
Is the Siemens B345H a direct replacement for the ITE B345H?
Yes. Siemens acquired ITE, and the current Siemens B345H serves as the exact replacement for the legacy ITE model. It maintains the same bolt-on mounting style and physical footprint.
Can the Siemens B345H be reverse fed?
Yes. According to Siemens specifications, this breaker is suitable for reverse feed applications under UL 489 because the thermal magnetic trip unit is fixed and not removable.
Which panelboards accept the B345H circuit breaker?
The B345H is a bolt-on breaker designed for Siemens P1, P2, P3, P4, and P5 series commercial panelboards. Because it requires a bolted bus connection, it cannot be installed in standard plug-on residential load centers.
