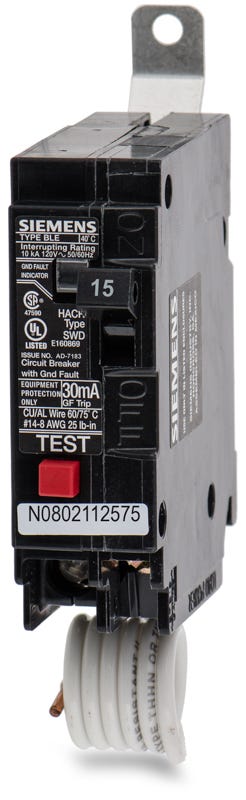

Siemens BE115 GFEP Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
BE115
GFEP Molded Case Circuit Breaker
Brand
Siemens
SKU
BE115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BE115 - 15A GFEP Molded Case Circuit Breaker
New
Quantity
Similar Items
20A GFEP Molded Case Circuit Breaker
30A GFEP Molded Case Circuit Breaker
30A GFEP Molded Case Circuit Breaker
Description
Designed for 120VAC circuits, this 15A single-pole breaker delivers 30mA ground fault equipment protection. It safeguards heat trace cables and commercial equipment from line-to-ground faults. The bolt-on unit installs into Siemens P1, P2, and P3 panelboards. It serves as a replacement for legacy B115EG and BLE115 breakers, accepting up to 10 AWG wire. Operating with a 10 kAIC rating, the BE115 features fixed thermal-magnetic trip technology.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BE115 |
| Series | BE |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Ground Fault Equipment Protection, HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersCan I install the Siemens BE115 in a standard residential load center?
No. The BE115 is a bolt-on circuit breaker designed exclusively for Siemens P1, P2, and P3 commercial panelboards. It will not fit in standard plug-on residential load centers.
What is the ground fault trip threshold for the BE115?
The BE115 features a 30mA ground fault equipment protection (GFEP) trip threshold. This is designed to protect equipment, such as heat trace cables, from line-to-ground faults.
Does the BE115 replace older Siemens or ITE breakers?
Yes, the BE115 serves as a direct replacement for legacy Siemens and ITE B115EG and BLE115 circuit breakers.
How is the neutral connection made on the BE115?
This breaker is equipped with a pigtail neutral wire. The pigtail must be routed and connected directly to the neutral bus bar in the panelboard to ensure the ground fault sensing circuitry operates correctly.
Can the BE115 be used to provide personnel protection in wet areas?
No. The BE115 is a GFEP breaker with a 30mA trip level, which is strictly for equipment protection. Applications requiring personnel protection, such as bathrooms or kitchens, require a Class A GFCI breaker with a 5mA trip threshold.
