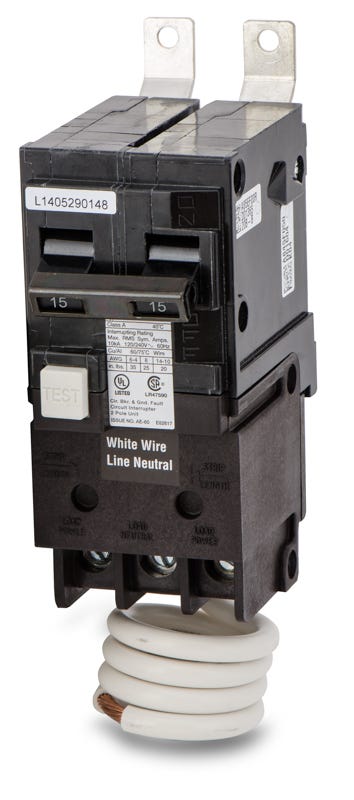

Siemens BF215 GFCI Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
BF215
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF215 - 15A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BF215 - 15A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF215 |
| Series | BF |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Sold out
Quantity
Siemens BF215 - 15A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF215-R |
| Series | BF |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Similar Items
15A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
30A GFCI Molded Case Circuit Breaker
Description
Part of the Siemens B-frame family, the BF215 is a 2-pole, 15A GFCI circuit breaker designed for commercial and industrial power distribution. It operates at 120/240VAC with a 10kAIC rating, ensuring code-compliant safety in wet environments. This unit mounts into Siemens P1, P2, and P3 panelboards using a sturdy bolt-on configuration. It replaces the legacy BF215A model. The breaker incorporates 5mA Class A ground fault detection, self-test functionality, and is fully HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF215 |
| Series | BF |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens BF215?
The BF215 is a bolt-on circuit breaker designed specifically for commercial and industrial Siemens P1, P2, and P3 panelboards. It will not fit in standard residential plug-on load centers.
Does the BF215 replace the older BF215A model?
Yes, the Siemens BF215 is the direct replacement for the legacy BF215A. It maintains the same bolt-on mounting, 15A rating, and GFCI specifications for seamless integration into existing panels.
What level of ground fault protection does this breaker provide?
The BF215 features Class A ground fault protection with a 5mA trip sensitivity. This is designed to quickly detect ground faults and de-energize the circuit to protect personnel from electrical shock.
How is the neutral connection wired on the BF215?
This breaker uses a pigtail neutral design. The attached white pigtail wire must be routed and connected directly to the panelboard's neutral bus to ensure the ground fault circuitry functions correctly.
What types of faults will the BF215 trip for?
Equipped with a thermal-magnetic trip unit and GFCI circuitry, the BF215 provides comprehensive protection by tripping during long-time overloads, instantaneous short circuits, and ground faults.
