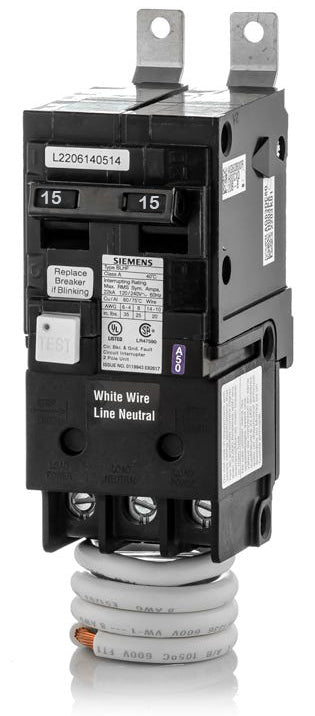

Siemens BF215A GFCI Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
BF215A
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF215A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF215A - 15A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
15A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
30A GFCI Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens BF215A provides reliable Class A (5mA) ground fault protection. This 2-pole, 15A molded case circuit breaker mounts into Siemens P1, P2, and P3 panelboards using a secure bolt-on connection. It serves as a direct replacement for the legacy BF215 model. Rated at 10 kAIC at 120/240VAC, it features thermal-magnetic trip technology with long-time and instantaneous functions, plus HACR and SWD ratings for versatile switching duties.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF215A |
| Series | BF |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
4 answersCan I install the BF215A in a standard residential load center?
No. The BF215A features a bolt-on connection designed specifically for Siemens P1, P2, and P3 commercial panelboards. It will not fit in standard plug-on residential load centers.
What level of ground fault protection does this breaker provide?
The BF215A delivers Class A 5mA ground fault protection. This level of sensitivity is designed specifically for personnel safety to prevent electrical shock hazards.
How is the neutral connection handled on this breaker?
This unit is equipped with a pigtail neutral wire. The pigtail must be securely terminated at the panel neutral bus to ensure the ground fault circuitry operates correctly.
Is the BF215A a direct replacement for the older BF215?
Yes, the BF215A serves as a direct replacement for the legacy Siemens BF215 model. It maintains the same physical dimensions, bolt-on mounting, and electrical ratings.
