Siemens BQ2B06000S01 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
BQ2B06000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B06000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

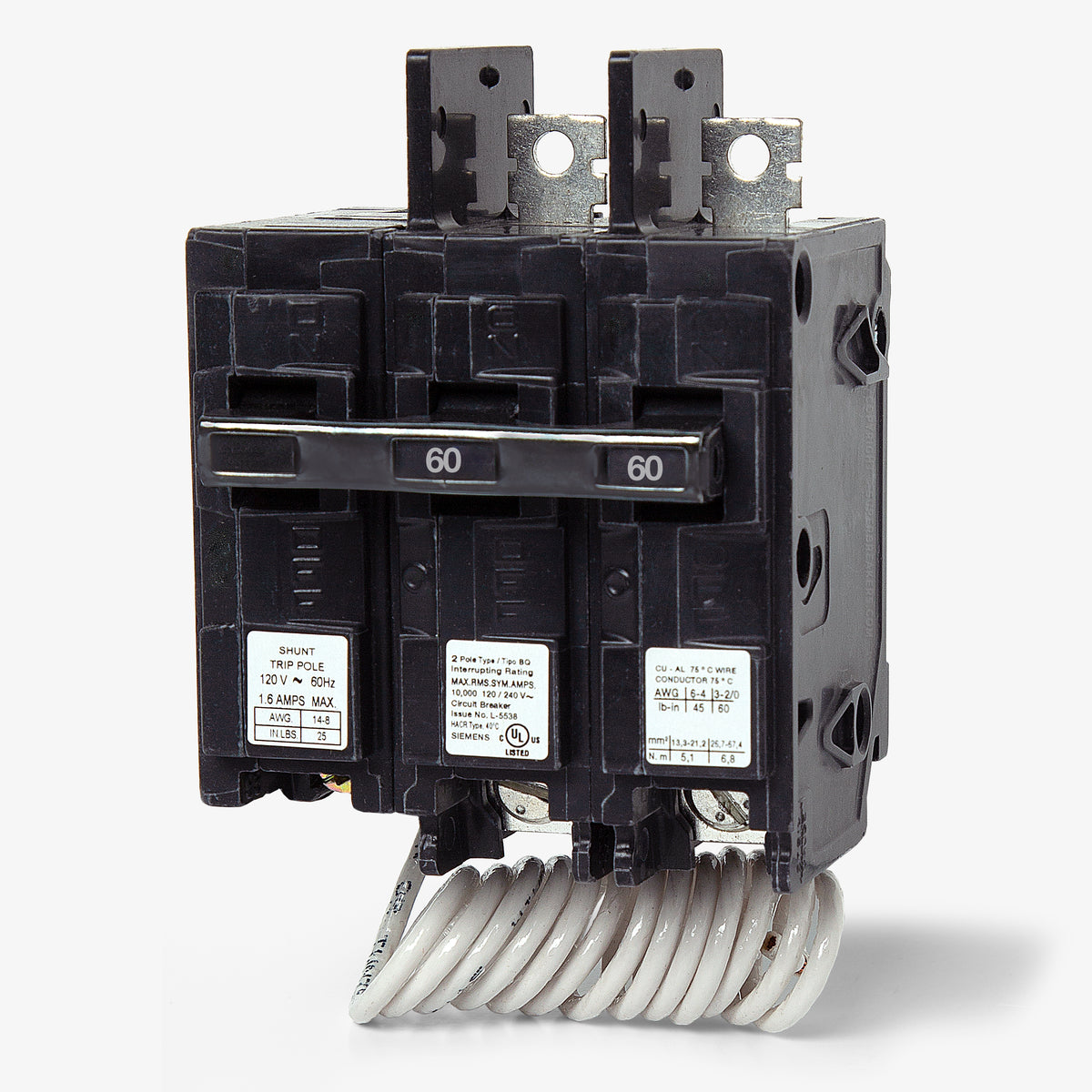

Siemens BQ2B06000S01 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Featuring a factory-installed 120VAC shunt trip mechanism, the Siemens BQ2B06000S01 allows facility managers to remotely open the breaker for emergency shutdowns or automated control. This 60-amp, two-pole molded case circuit breaker mounts into Siemens panelboards using a standard bolt-on configuration. Rated at 10kAIC at 120/240VAC, it provides robust thermal-magnetic protection against overloads and short circuits. The unit is HACR rated and built for demanding commercial applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B06000S01 |
| Series | BQ |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC, Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the 00S01 suffix indicate on this Siemens breaker?
The 00S01 suffix means this breaker features a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely by applying a 120V control signal, which is commonly used for emergency shutdowns or automated control.
What type of panelboard connection does the BQ2B06000S01 require?
This breaker features a bolt-on connection. It is designed specifically for Siemens panelboards that accept bolt-on BQ frame breakers and will not fit in standard plug-on load centers.
What wire sizes are supported by the terminals on this 60A breaker?
The standard load lugs accept 8 to 1 AWG copper conductors or 6 to 1/0 AWG aluminum conductors.
Is the trip unit on the BQ2B06000S01 adjustable?
No, this breaker uses a thermal-magnetic trip unit with fixed long-time and instantaneous trip functions. The trip settings cannot be modified in the field.
Are line-side lugs included with this breaker?
No, standard Siemens BQ circuit breakers are supplied with load-side lugs only. If your installation requires line-side lugs, a different catalog number with an L suffix is required.
Is this breaker suitable for HVAC equipment?
Yes, Siemens BQ frame breakers are HACR rated, making them approved for use with heating, air conditioning, and refrigeration equipment.
