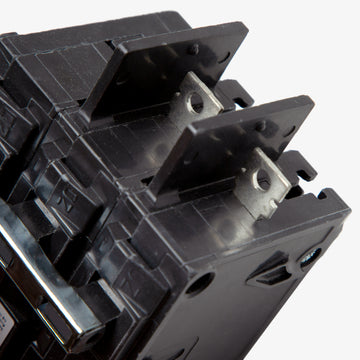

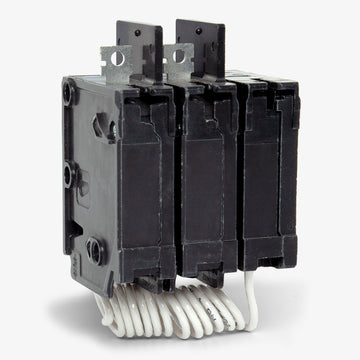

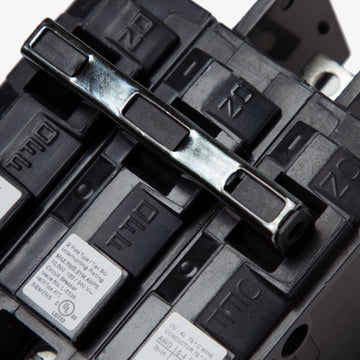

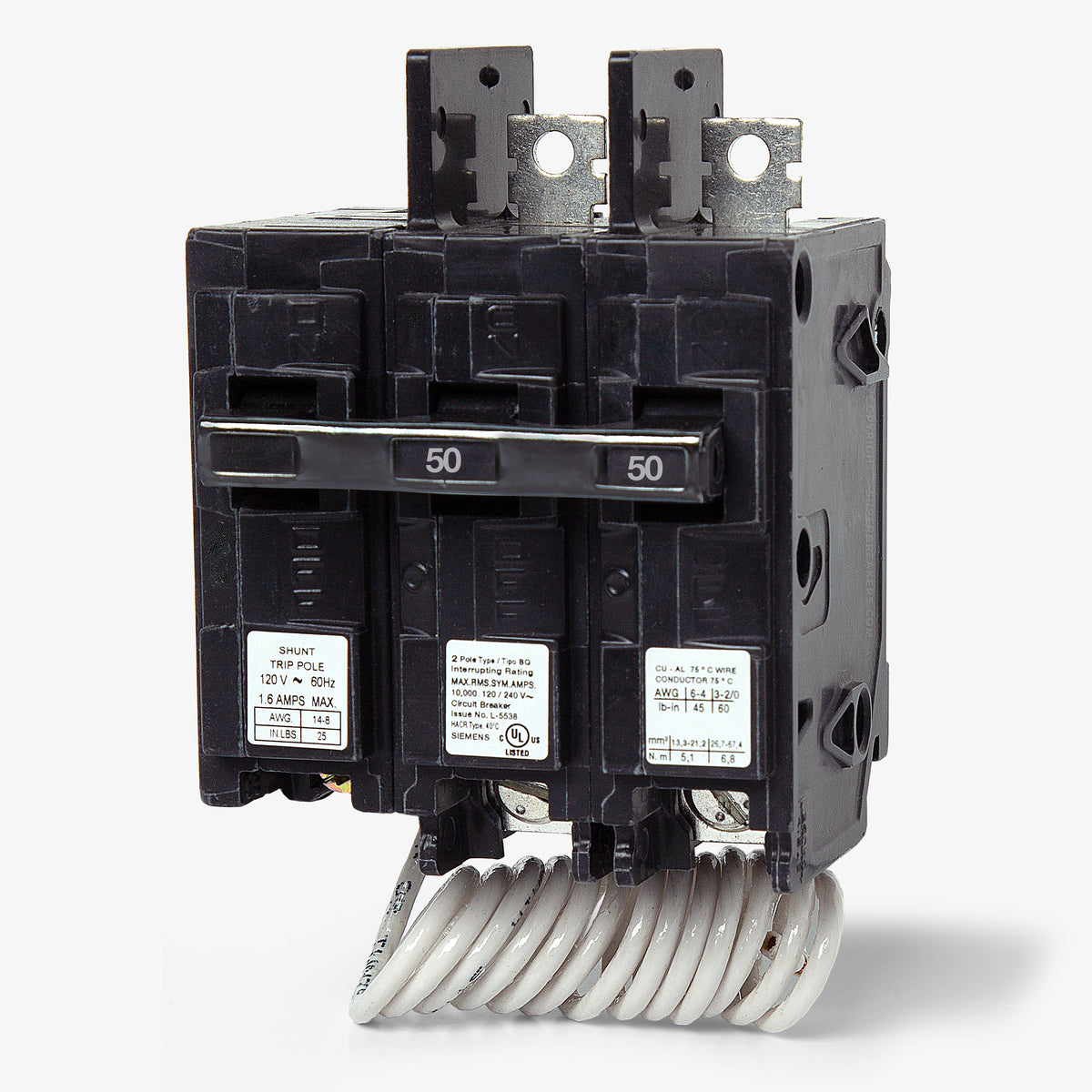

Siemens BQ2B05000S01 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
BQ2B05000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B05000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B05000S01 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for advanced control, the Siemens BQ2B05000S01 integrates a factory-installed 120VAC shunt trip mechanism for remote circuit disconnection. This 2-pole, 50A molded case circuit breaker provides reliable thermal-magnetic protection against overcurrents and short circuits. It bolts securely into Siemens P1, P2, and P3 panelboards, making it ideal for commercial and industrial power distribution. The unit is rated at 10kAIC at 120/240VAC and includes standard load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B05000S01 |
| Series | BQ |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhat does the "S01" suffix mean in the BQ2B05000S01 catalog number?
The "S01" suffix indicates the inclusion of a factory-installed 120VAC shunt trip. Unlike the standard BQ2B050, this model allows for remote tripping of the breaker, which is often required for emergency shutdown systems or automated control.
Which panelboards are compatible with the BQ2B05000S01?
This BQ-frame breaker features a bolt-on connection designed specifically for Siemens P1, P2, and P3 commercial panelboards. It is not compatible with standard plug-on residential load centers.
Is the Siemens BQ2B05000S01 breaker HACR rated?
Yes, Siemens BQ series molded case circuit breakers are HACR rated, making them suitable for protecting heating, air conditioning, and refrigeration equipment.
Are the trip settings adjustable on the BQ2B05000S01?
No, this thermal-magnetic breaker features fixed long-time (thermal) and fixed instantaneous (magnetic) trip functions. The trip points cannot be adjusted in the field.
