Siemens BQ3B035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
BQ3B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

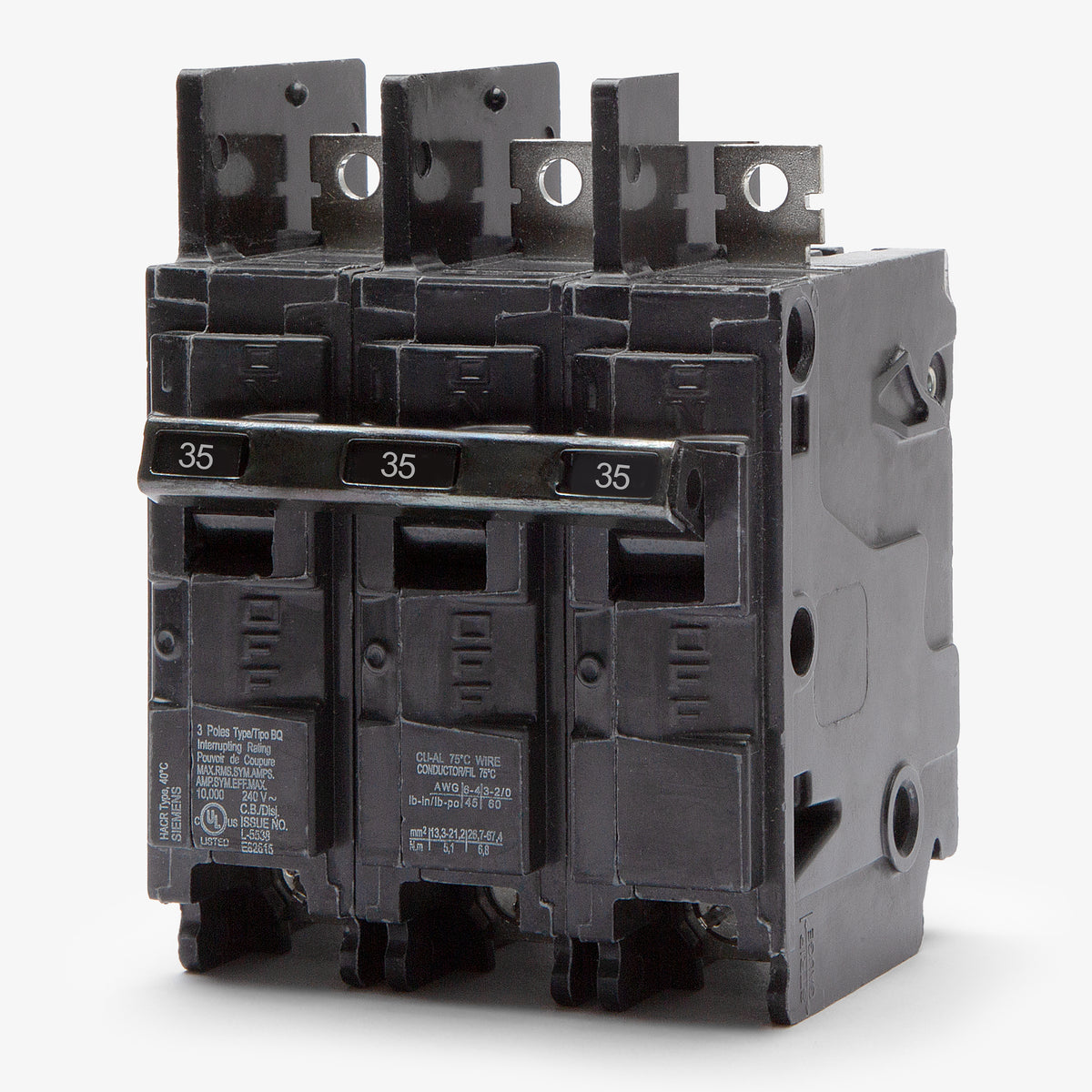

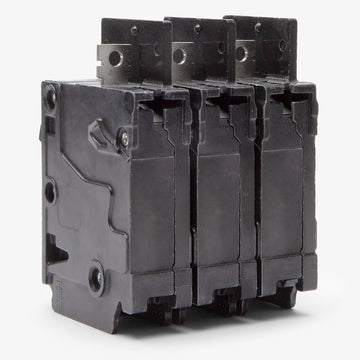

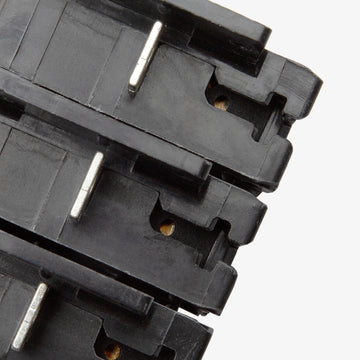

Siemens BQ3B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ3B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B035 |
| Series | BQ |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|

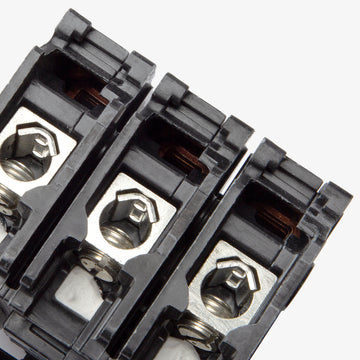

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Blocking Device |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ3B035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B035-R |
| Series | BQ |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Blocking Device |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial power distribution, the Siemens BQ3B035 is a 3-pole, 35A molded case circuit breaker. It provides essential overcurrent protection for 240VAC electrical systems. This bolt-on MCCB installs securely into Siemens P1, P2, and P3 panelboards, as well as legacy ITE enclosures. It serves as a functional substitute for BAB3035 and QOB335 breakers in approved setups. Featuring a 10kAIC rating, this BQ series breaker utilizes fixed thermal-magnetic trip technology.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B035 |
| Series | BQ |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Blocking Device |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens BQ3B035?
The BQ3B035 is a bolt-on circuit breaker designed for use in Siemens P1, P2, and P3 panelboards. It is also backward compatible with legacy ITE bolt-on distribution panels.
Is there a plug-in equivalent for the BQ3B035?
Yes, if your panel requires a plug-in connection rather than a bolt-on, the Siemens Q335 offers the same 35-amp, 3-pole, 240V thermal-magnetic protection in the QP series.
Is the Siemens BQ3B035 HACR rated?
Yes, this breaker is HACR rated, making it suitable for overcurrent protection on heating, air conditioning, and refrigeration equipment.
What wire sizes and materials are supported by the BQ3B035 terminals?
The factory lugs on this breaker accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire.
What is the difference between the Siemens BQ and BQD breaker series?
While both are 1 inch wide per pole molded case circuit breakers, the BQ series is rated for up to 240VAC systems. The BQD series is designed for higher voltage applications, supporting up to 480Y/277VAC.
