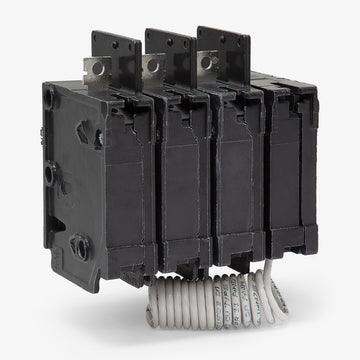

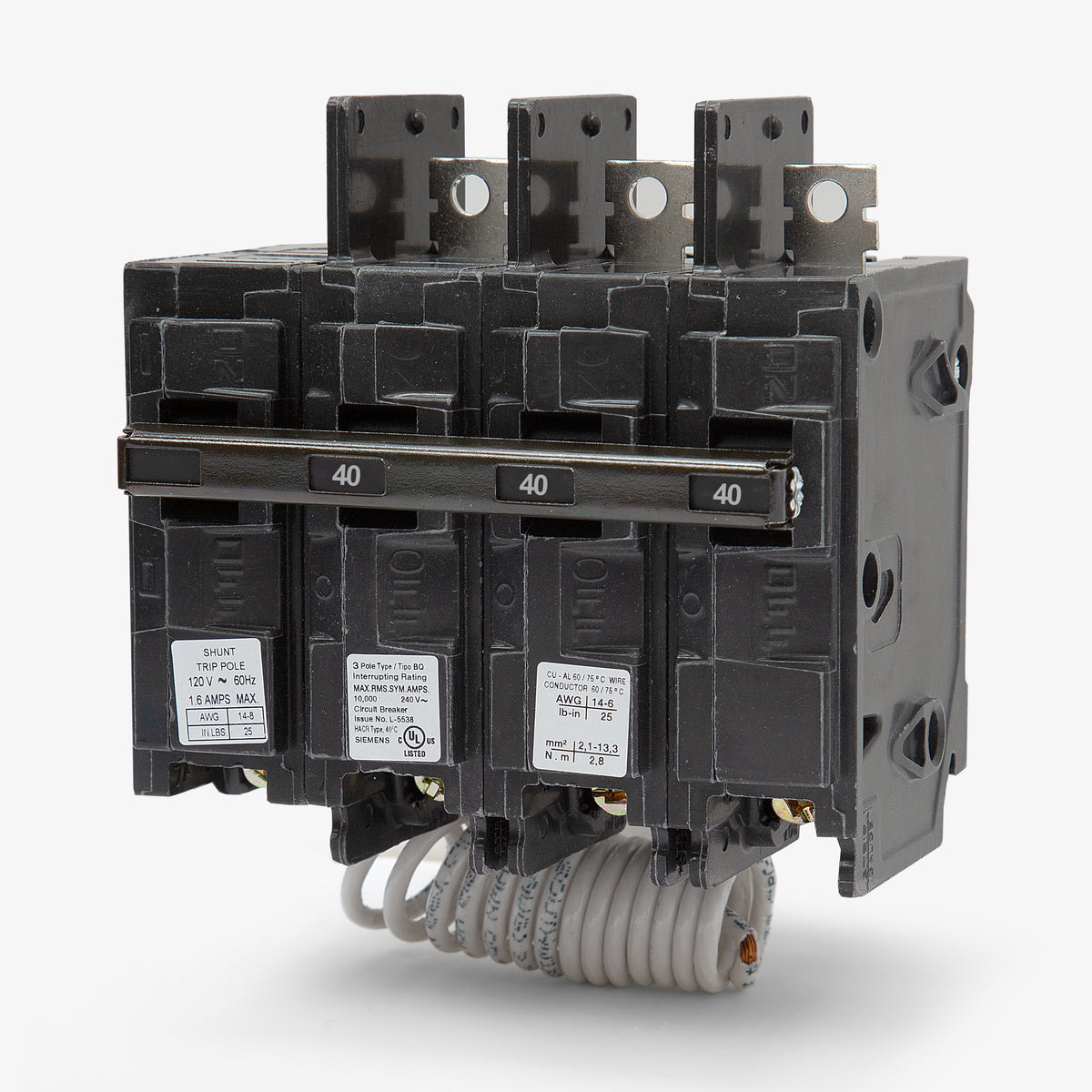

Siemens BQ3B04000S01 Molded Case Circuit Breaker
- 40A
- 3 Pole

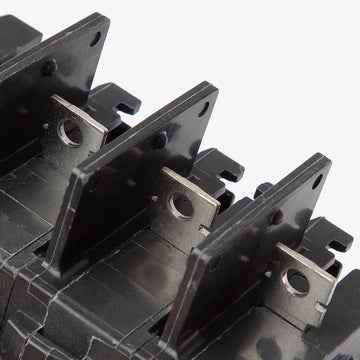

- Bolt-On
Siemens
BQ3B04000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B04000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B04000S01 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for applications requiring remote shutdown, the Siemens BQ3B04000S01 includes a factory-installed 120VAC shunt trip mechanism. This 3-pole, 40-amp commercial breaker delivers standard thermal-magnetic protection for 240VAC electrical systems. The unit installs into Siemens P1, P2, and P3 panelboards via a sturdy bolt-on connection. It serves as a functional substitute for the THQB32040ST1 in compatible enclosures.Specifications
| Brand | Siemens |
|---|---|
| Series | BQ |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG (Cu), 6 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the Siemens BQ3B04000S01 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards.

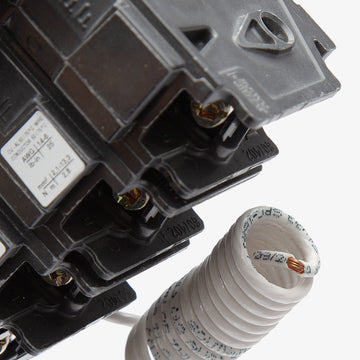

What wire sizes are compatible with the terminal lugs on the BQ3B04000S01?
The included load-side lugs accept 14 to 6 AWG copper conductors or 12 to 6 AWG aluminum conductors.
What does the 00S01 suffix indicate on this Siemens BQ breaker?
The 00S01 suffix designates that the breaker is equipped with a factory-installed 120VAC shunt trip mechanism, allowing the breaker to be tripped remotely.
How does the thermal-magnetic trip unit function on the BQ3B04000S01?
The fixed thermal-magnetic trip unit provides long-time (L) protection for gradual overloads and instantaneous (I) protection to quickly clear short circuits.
Is the Siemens BQ3B04000S01 a direct replacement for legacy ITE models?
Yes, Siemens manufactures the BQ series, making this a direct replacement for older ITE BQ3B04000S01 breakers used in compatible bolt-on enclosures.
Does the BQ3B04000S01 provide simultaneous disconnection for all three phases?
Yes, it utilizes an internal common-trip mechanism. If an overload or short circuit occurs on any single phase, all three poles will trip simultaneously to protect three-phase equipment from single-phasing damage.
