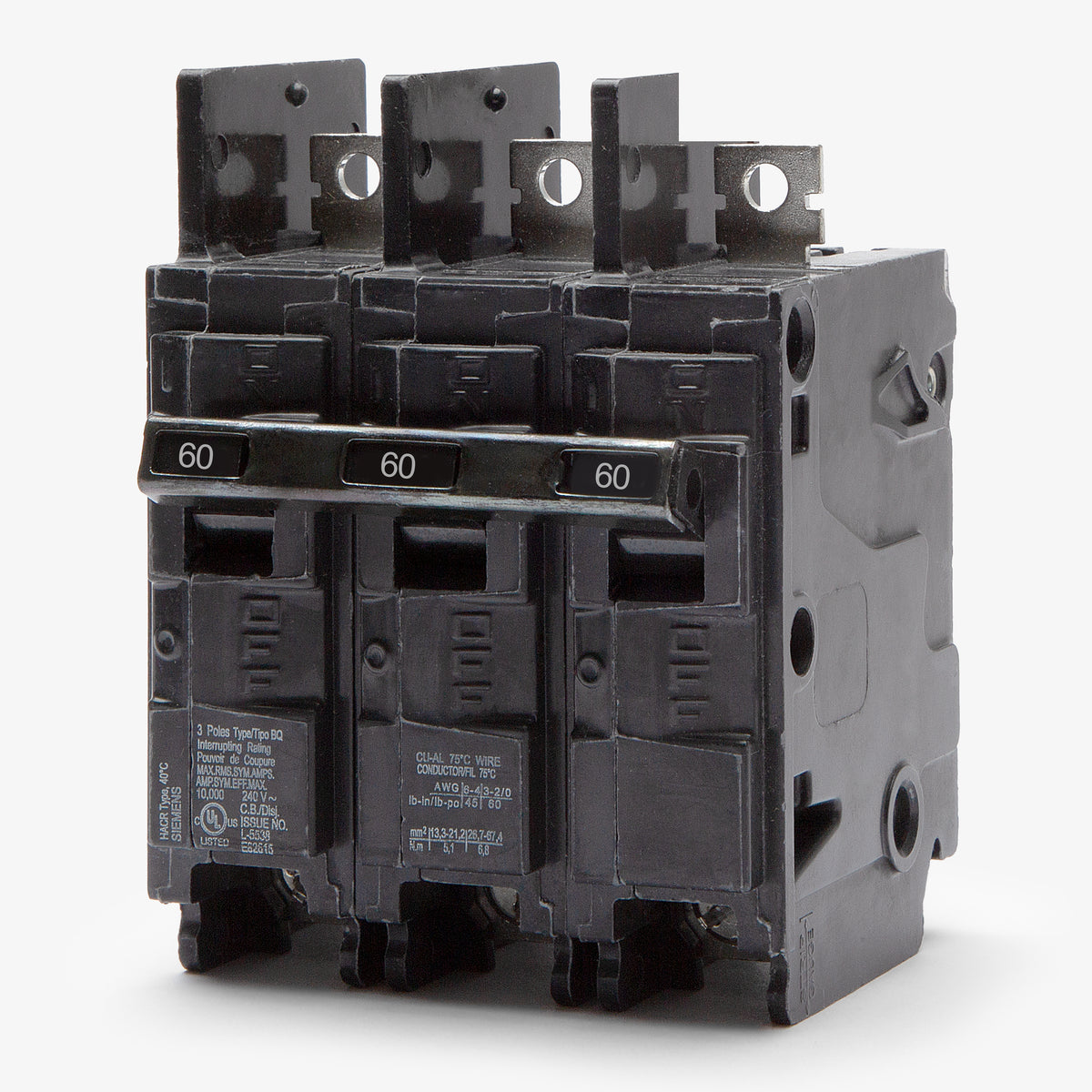

Siemens BQ3B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
BQ3B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

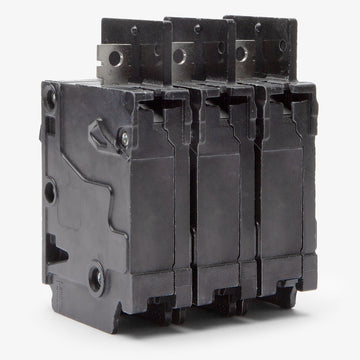

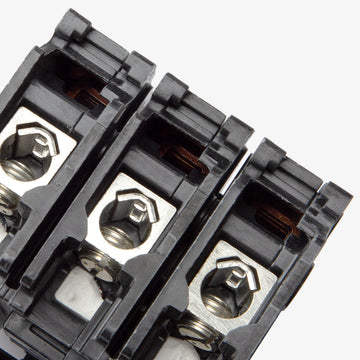

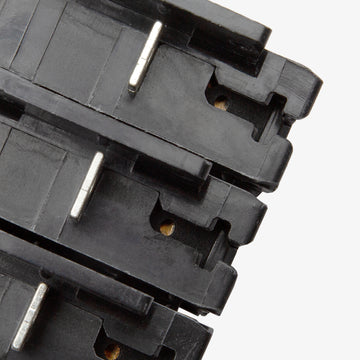

Siemens BQ3B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens BQ3B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B060 |
| Series | BQ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ3B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B060-R |
| Series | BQ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable power distribution, this 60A, 3-phase molded case circuit breaker handles demanding commercial loads. The device installs into standard Siemens panelboards via a robust bolt-on mounting style. It replaces legacy BAB3060, THQB32060, or QOB360 configurations. Featuring a 10kA interrupting capacity at 240VAC, this HACR-rated breaker utilizes fixed thermal-magnetic trip units and accepts 8-4 AWG copper conductors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B060-R |
| Series | BQ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens BQ3B060?
This 3-pole breaker is designed for bolt-on installation in compatible Siemens and legacy ITE panelboards, including the P1, P2, and P3 series panels that accept BQ frame circuit breakers.
What is the recommended terminal lug torque for the BQ3B060?
The load side terminal lugs on the BQ3B060 require a tightening torque of 50 to 70 in-lb for 6 AWG to 4 AWG wire. The panel mounting screws require a torque of 25 to 30 in-lb. Always verify exact specifications on the physical breaker label before installation.
Will the Siemens BQ3B060 replace an older ITE breaker with the same part number?
Yes, Siemens acquired ITE and continues to manufacture the BQ series. The Siemens BQ3B060 is a direct replacement for the legacy ITE BQ3B060 circuit breaker, providing the exact same form, fit, and function.
Is the BQ3B060 suitable for HVAC applications?
Yes, this circuit breaker is HACR rated. It is certified to safely handle the inrush currents and motor-driven loads associated with commercial heating, air conditioning, and refrigeration equipment.
Does the BQ3B060 come with lugs, or are they sold separately?
The breaker is supplied from the factory with standard load-side lugs installed. These lugs accommodate 8 to 4 AWG copper conductors or 8 to 2 AWG aluminum conductors.
Can the Siemens BQ3B060 be reverse fed?
Yes. Standard Siemens BQ series thermal-magnetic circuit breakers do not have strict line and load markings, which means they are suitable for reverse feed applications as long as the installation complies with local electrical codes.
Will this bolt-on breaker fit in a standard residential load center?
No. The BQ3B060 is a bolt-on molded case circuit breaker engineered for commercial and industrial panelboards. It is not compatible with standard load centers that require plug-on type breakers like the Siemens QP series.
