Siemens BQ3B06000S01 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
BQ3B06000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B06000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B06000S01 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description

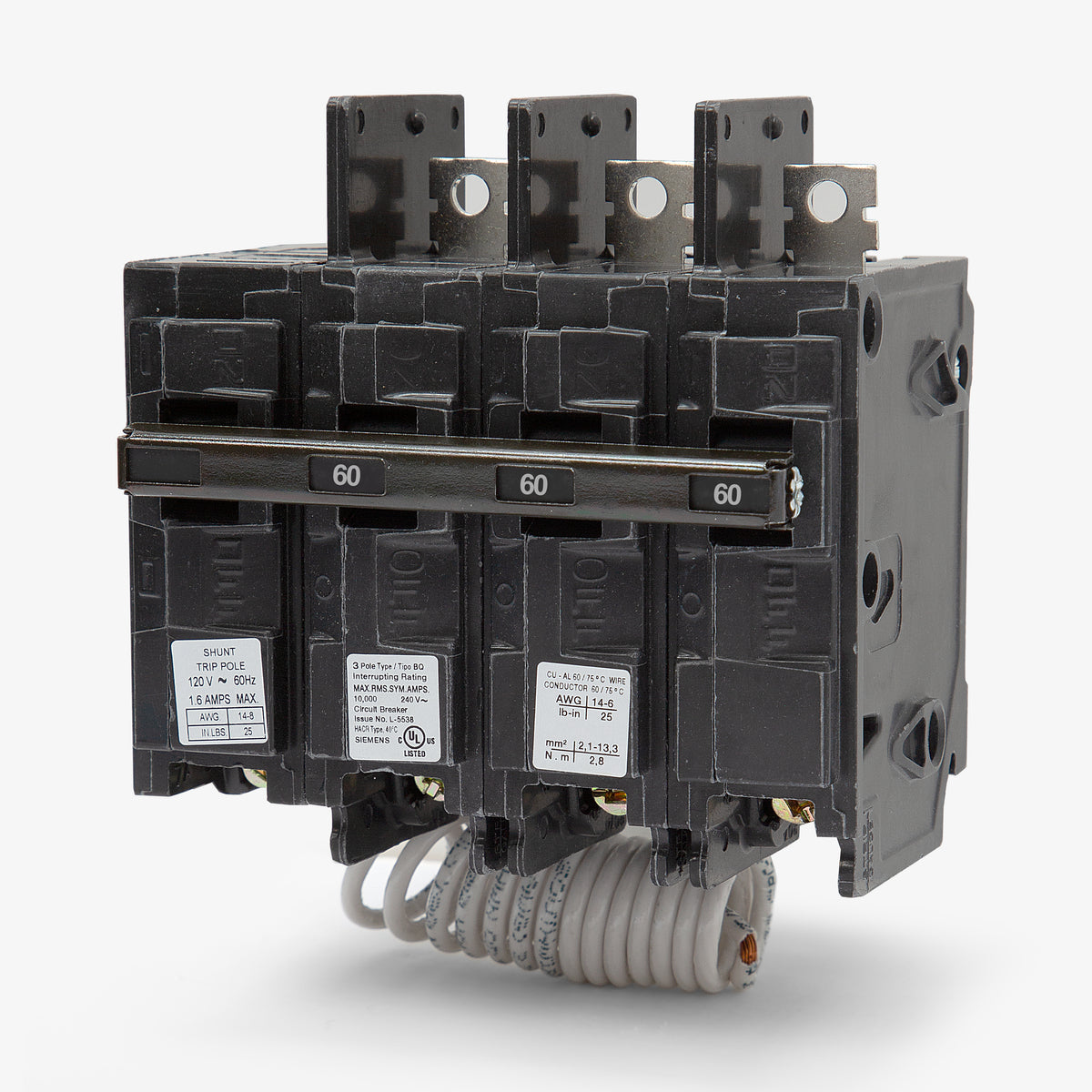

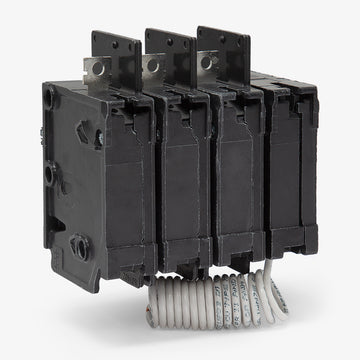

Designed for advanced control, the Siemens BQ3B06000S01 is a 3-pole, 60A molded case circuit breaker with a factory-installed 120VAC shunt trip. This bolt-on breaker is engineered to fit Siemens P1, P2, and P3 commercial panelboards. It also serves as a substitute for the THQB32060ST1. Delivering 10 kAIC of protection at 240VAC, the unit utilizes fixed thermal-magnetic trip technology. It is HACR rated and accepts 8-1 AWG copper wire.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B06000S01 |
| Series | BQ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Factory Installed 120VAC Shunt Trip, Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
7 answersWhich panelboards are compatible with the BQ3B06000S01 circuit breaker?
This bolt-on breaker is engineered specifically for installation in Siemens P1, P2, and P3 commercial panelboards.
What does the 00S01 suffix mean in the BQ3B06000S01 catalog number?

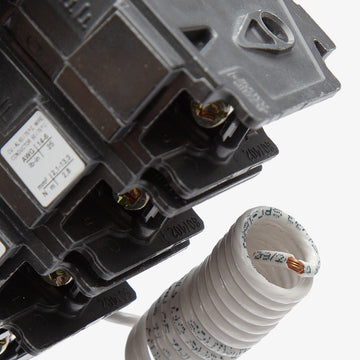

The 00S01 suffix indicates the breaker is equipped with a factory-installed 120V AC shunt trip, allowing the breaker to be tripped remotely via a control signal.
What control voltage is required for the integrated shunt trip?
The factory-installed shunt trip requires a 120V AC control voltage to actuate the trip mechanism.
Are line and load lugs included with this breaker?

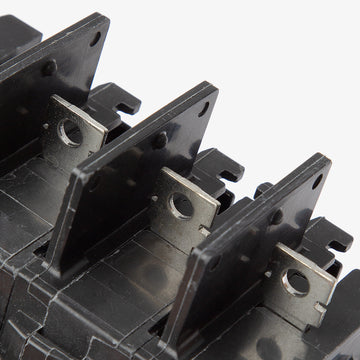

As a bolt-on breaker, it is supplied with load side lugs only. The line side bolts directly to the busbar of the panelboard.
What wire gauges are supported by the load side lugs?
The lugs accept 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
Are the thermal and magnetic trip settings adjustable on this model?
No, the BQ3B06000S01 features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are factory set and non-adjustable.
Can this bolt-on breaker be installed in a standard residential load center?
No. This is a bolt-on molded case circuit breaker designed for commercial panelboards. It lacks the plug-on mounting clips required for standard residential load centers.
