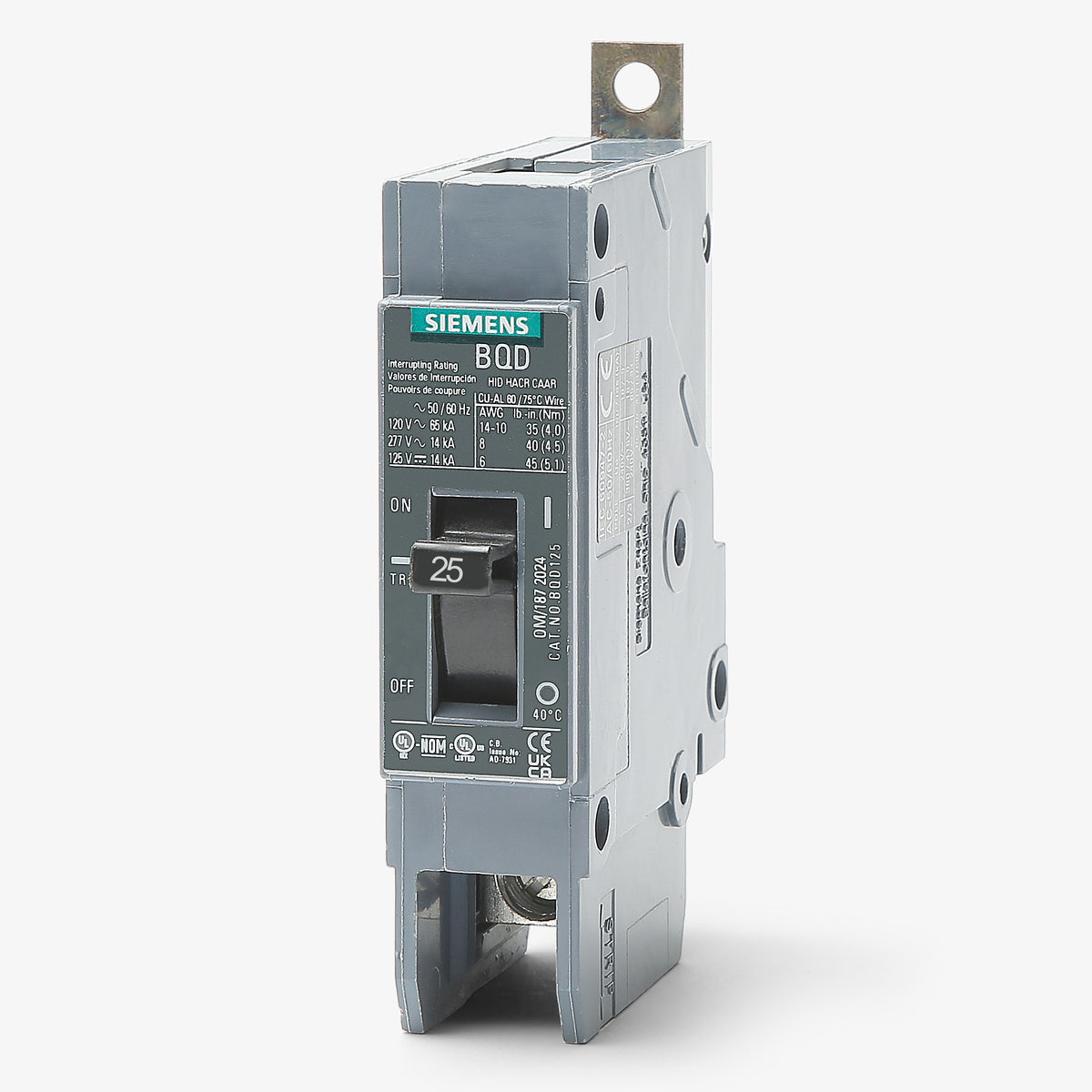

Siemens BQD125 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Siemens
BQD125
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD125 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD125 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD125 |
| Series | BQD |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens BQD125 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD125-R |
| Series | BQD |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Designed to handle commercial electrical demands, this 25A molded case circuit breaker offers dependable thermal-magnetic trip functions. The SENTRON family BQD frame ensures consistent performance in demanding environments. It mounts into Siemens P1, P2, P3, P4, and P5 panelboards using a secure bolt-on connection. The unit includes load side lugs that accommodate 14-6 AWG copper or 12-6 AWG aluminum conductors. With a 65 kAIC rating at 120VAC, this breaker is fully HACR and HID certified.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD125 |
| Series | BQD |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich Siemens panelboards accept the BQD125 circuit breaker?
This bolt-on breaker is approved for installation in Siemens Sentron Series P1, P2, P3, P4, and P5 panelboards.
Is the BQD125 circuit breaker rated for high intensity discharge lighting?
Yes, this 1-pole BQD breaker is tested and marked as HID rated, meaning it is approved for switching high intensity discharge lighting loads.
Does the BQD125 carry an HACR rating?
Yes, it is HACR marked. This confirms the breaker is certified for branch circuit protection in heating, air conditioning, and refrigeration equipment.
What is the difference between Siemens BQD and CQD circuit breakers?
While both use the same core frame and 1-inch pole spacing, BQD breakers are designed to bolt directly to the bus of Siemens panelboards. CQD breakers are configured for DIN rail or surface mounting.
Can the Siemens BQD125 be reverse fed?
Yes, Siemens BQD series circuit breakers are suitable for reverse feed applications. This allows flexibility for panel builders when routing main or subfeed wiring.
