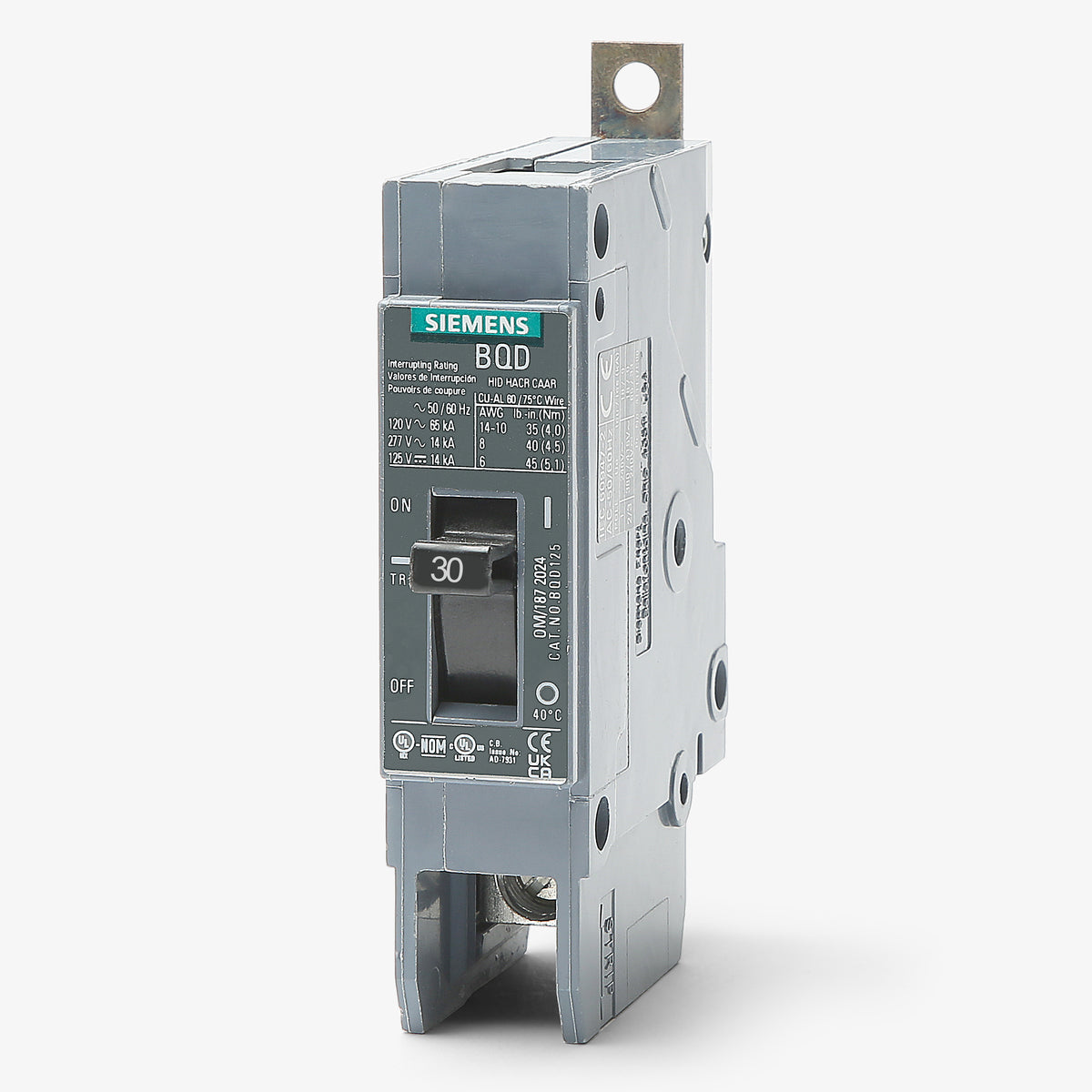

Siemens BQD130 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
BQD130
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD130 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD130 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD130 |
| Series | BQD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens BQD130 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD130-R |
| Series | BQD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 30A thermal-magnetic breaker delivers robust overcurrent protection with a 65kA interrupting rating at 120V. The bolt-on mounting style ensures a secure connection within Siemens Sentron P1 through P5 panelboards. Equipped with factory-installed load side lugs, it accommodates 14-6 AWG copper or 12-6 AWG aluminum wire. This versatile component includes HACR and HID certifications for heating, cooling, and high-intensity discharge lighting.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD130 |
| Series | BQD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Siemens BQD130 and the CQD130?
Both models share the same frame dimensions and thermal-magnetic trip mechanisms. The BQD130 is designed with a line-side bus tab for bolt-on installation in Siemens panelboards. The CQD130 features mechanical lugs on both the line and load sides, making it suitable for independent surface mounting or DIN rail installation.
Is the BQD130 rated for HID or SWD lighting applications?
The 30A 1-pole BQD130 is tested and marked for HID (High-Intensity Discharge) lighting circuits. However, it is not marked for SWD (Switching Duty), as Siemens restricts the SWD rating on this frame size to 15A and 20A single-pole breakers.
Can the Siemens BQD130 be reverse fed?
Yes. The BQD series features a non-removable trip unit and is approved for reverse-feed applications in accordance with UL 489 standards.
Is this breaker approved for use with heating and refrigeration equipment?
Yes. The BQD130 carries a standard HACR rating, making it suitable for providing branch-circuit protection for compatible HVAC and refrigeration loads.

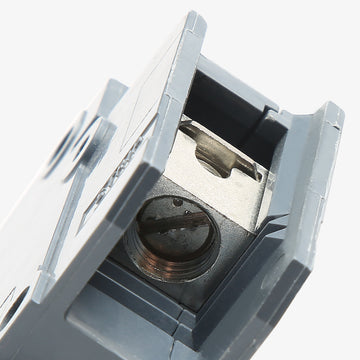

What are the terminal temperature requirements for the BQD130 load lug?
The mechanical load-side lug on the BQD130 is UL listed specifically for use with 60-degree and 75-degree Celsius copper or aluminum conductors.
Can the BQD130 be utilized in direct current (DC) systems?
Yes. It carries a DC interrupting rating of 14kA at 125VDC, making it suitable for low-voltage DC control panels or specialized DC power distribution applications.
