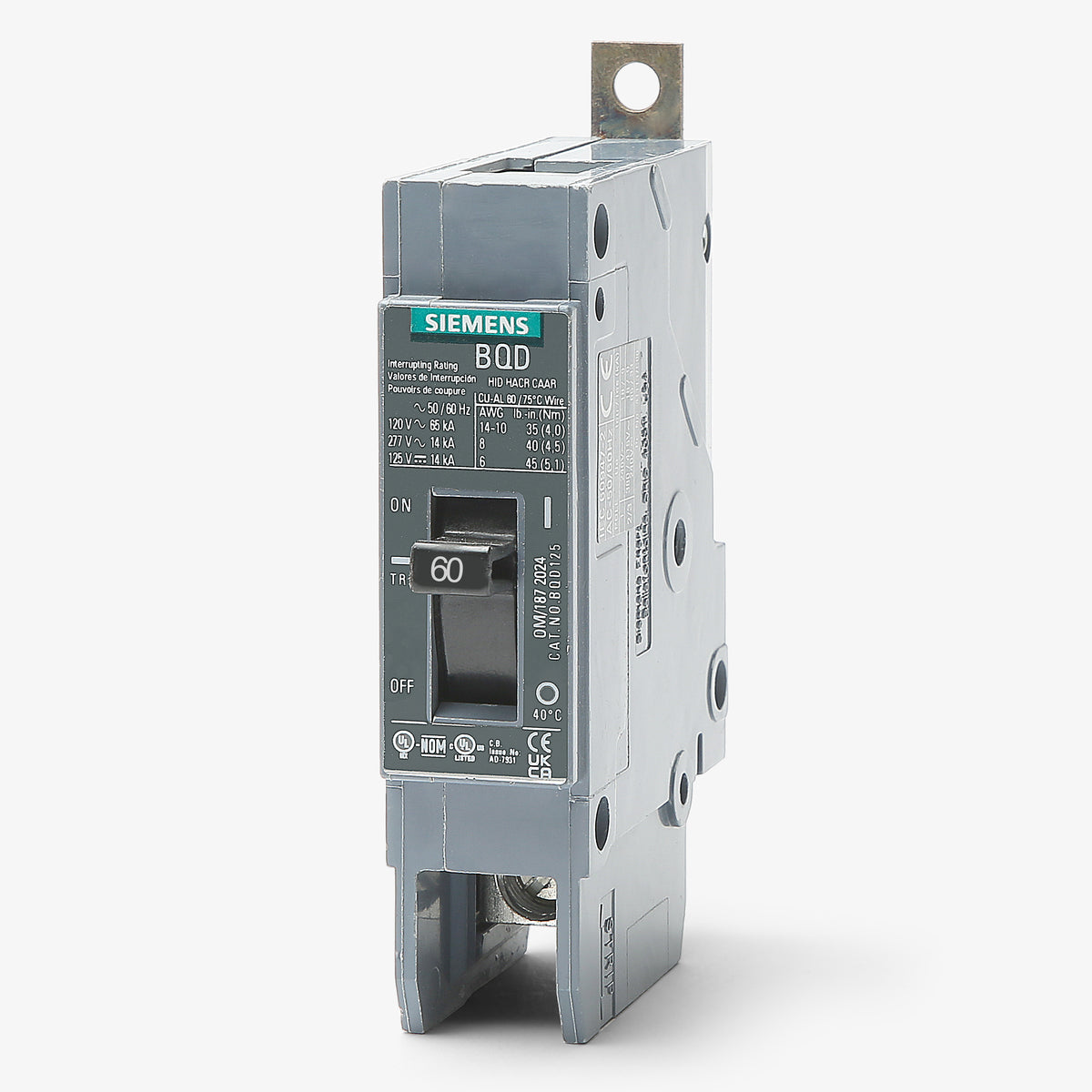

Siemens BQD160 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Siemens
BQD160
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD160
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD160 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens BQD160 is a 1-pole, 60A molded case circuit breaker. It utilizes fixed thermal and magnetic trip units to deliver reliable protection. This unit mounts into Siemens P1 through P5 panelboards using a secure bolt-on connection. It includes standard load side lugs. Capable of interrupting 14 kAIC at 277VAC and 65 kAIC at 120VAC, it meets rigorous safety standards. The breaker is also HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD160 |
| Series | BQD |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|

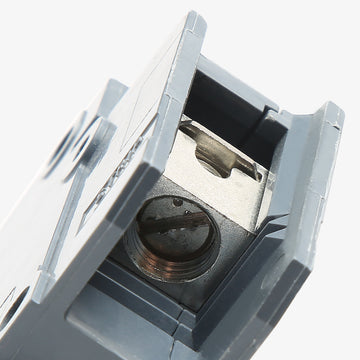

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards accept the BQD160 circuit breaker?

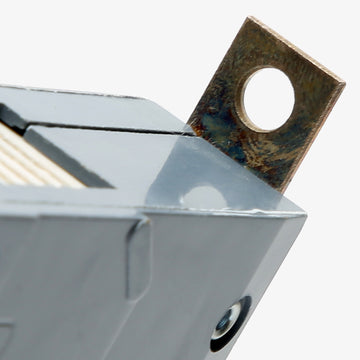

This bolt-on breaker mounts directly into Siemens P1, P2, P3, P4, and P5 commercial panelboards. It requires a bolted connection to the bus and will not fit in standard plug-on residential load centers.
Can the Siemens BQD160 replace legacy ITE breakers?
Yes. Siemens acquired ITE, and current Siemens BQD breakers are direct, UL Listed replacements for older ITE BQD breakers with matching pole and amperage configurations.
Does Siemens offer a DIN rail mount version of the BQD160?
Yes. If you need a cable-in, cable-out breaker for DIN rail mounting in a control panel, use the Siemens CQD160. The CQD series shares the same footprint and ratings but is designed for surface or DIN rail mounting rather than a panelboard bus connection.
Is the BQD160 breaker rated for reverse feed installations?
Yes, Siemens BQD molded case circuit breakers are UL Listed for reverse feed applications, allowing them to be back-fed when used in compatible enclosures or generator setups.
Does the BQD160 carry an HACR rating?
Yes, all Siemens BQD breakers from 15A to 100A are HACR marked, making this 60A breaker suitable for protecting heating, air conditioning, and refrigeration equipment branch circuits.
Is the BQD160 rated for switching HID or fluorescent lighting?
No. In the BQD family, SWD (Switching Duty) ratings are limited to 15-20A 1-pole breakers, and HID (High-Intensity Discharge) ratings are limited to 15-50A 1-pole breakers. The 60A BQD160 exceeds the maximum amperage for these specific lighting ratings.
Can the trip settings on the BQD160 be adjusted?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and cannot be modified in the field.
