Siemens BQD170 Molded Case Circuit Breaker
- 70A
- 1 Pole
- Bolt-On
Siemens
BQD170
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD170
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

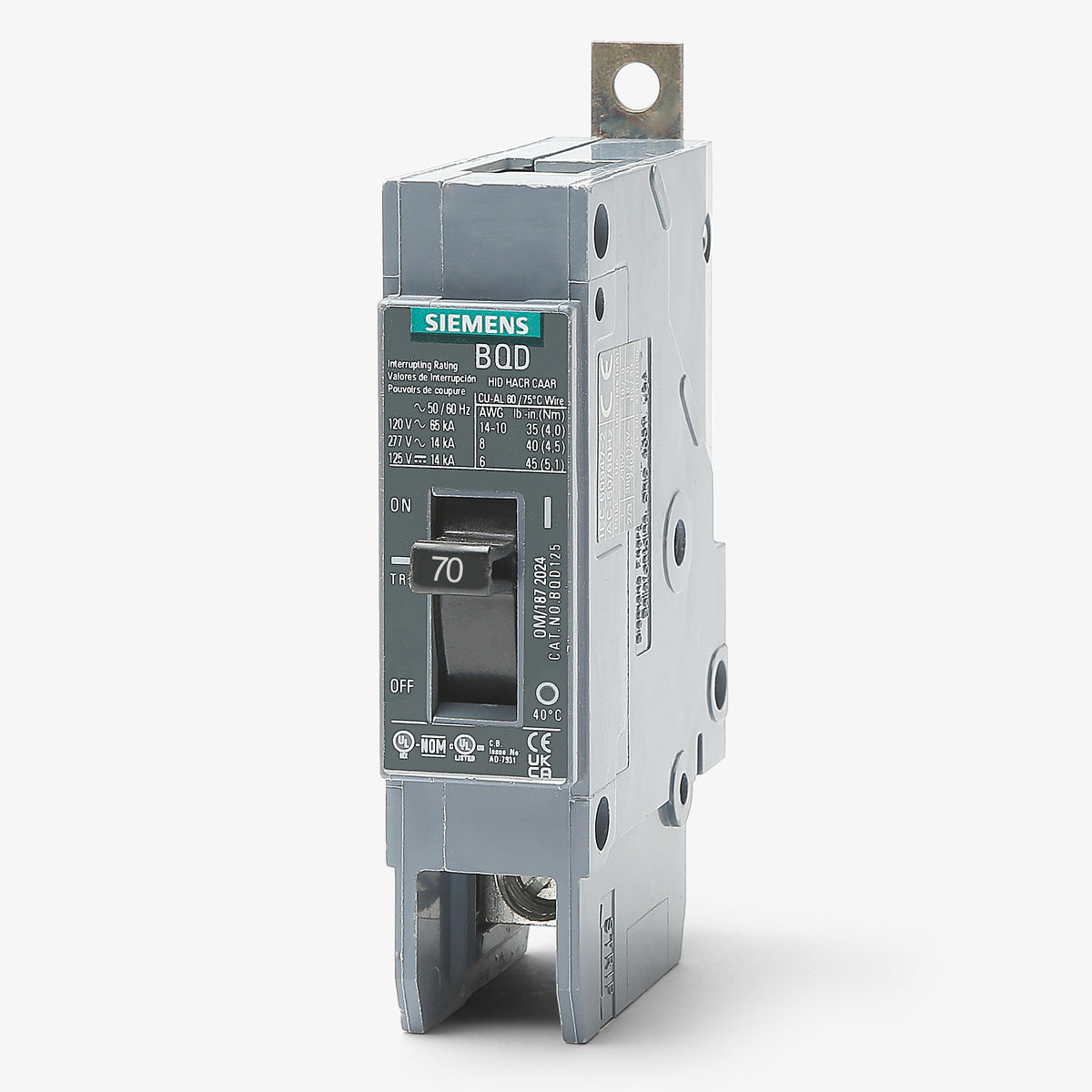

Siemens BQD170 - 70A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens BQD170 is a 1-pole, 70A molded case circuit breaker. It features a compact design to maximize panel space. This bolt-on unit installs seamlessly into Siemens P1 through P5 panelboards. It includes load side lugs and accepts up to 1 AWG copper wire. Delivering a 14kAIC rating at 277VAC and 65kAIC at 120VAC, it provides robust long-time and instantaneous (LI) trip functions. It is also HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD170 |
| Series | BQD |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards are compatible with the Siemens BQD170?
The BQD170 is a bolt-on breaker designed specifically for Siemens P1, P2, P3, P4, and P5 series commercial panelboards.
Can I install the BQD170 in a standard Siemens residential load center?
No. The BQD series features a bolt-on connection designed for commercial panelboards. Standard Siemens residential load centers require plug-on breakers like the QP series.
Is the Siemens BQD170 HACR rated?
Yes, this 70A breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Does the BQD170 carry an HID or SWD rating?
No. High Intensity Discharge (HID) ratings on the BQD series are limited to 15A through 50A models, and Switching Duty (SWD) ratings are only available on 15A and 20A models.
Can the BQD170 circuit breaker be reverse fed?
Yes, Siemens BQD molded case circuit breakers are suitable for reverse feed applications.
Does the BQD170 come with lugs, and what wire sizes do they accept?

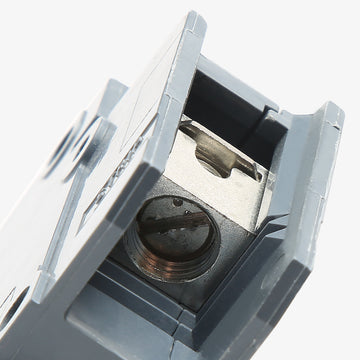

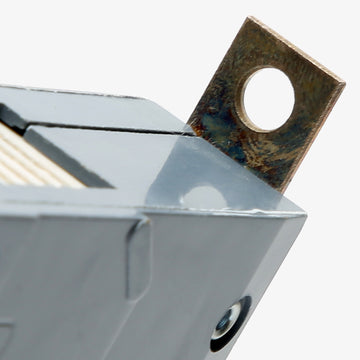

Yes, the breaker includes a factory-installed load-side lug that accepts 8 to 1 AWG copper or 6 to 1/0 AWG aluminum conductors. The line side bolts directly to the panelboard bus.
What is the difference between Siemens BQD and CQD circuit breakers?
While both share the same internal mechanisms and ratings, the BQD series is designed to bolt onto Siemens panelboard busbars. The CQD series is designed to be independently mounted on a DIN rail or bolted directly to a surface.
Does the BQD170 provide GFCI or AFCI protection?
No, the BQD170 is a standard thermal magnetic breaker providing long-time and instantaneous (LI) trip functions for overcurrent and short-circuit protection. It does not include ground fault or arc fault protection.
