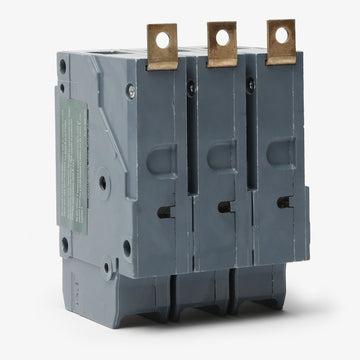

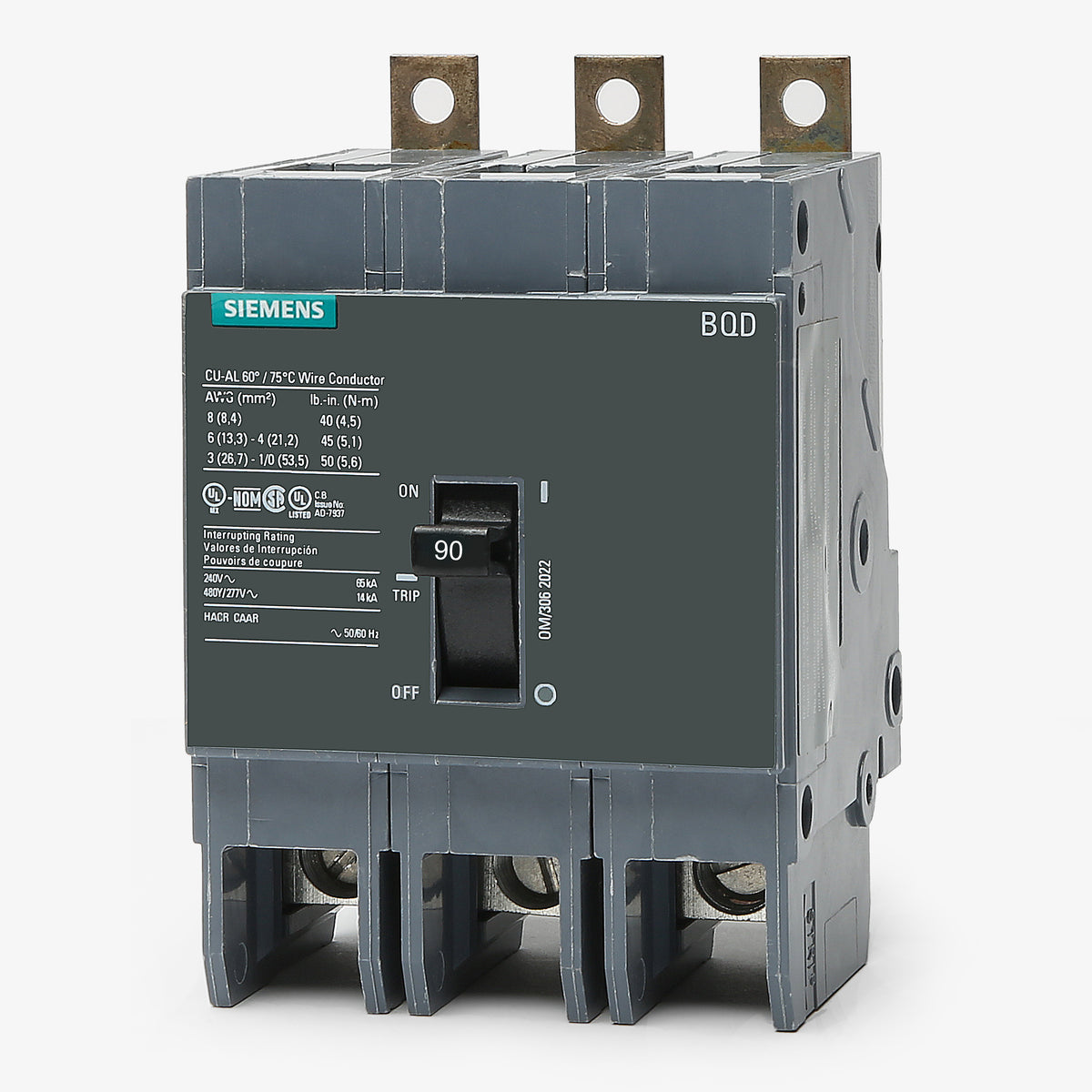

Siemens BQD390 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Siemens
BQD390
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD390
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD390 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD390 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD390 |
| Series | BQD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Sold out
Quantity
Siemens BQD390 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD390-R |
| Series | BQD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding environments, this 90A, 3-pole Siemens BQD390 breaker delivers dependable thermal-magnetic protection. It operates efficiently across 240V and 480Y/277V systems, making it highly versatile for facility managers. Designed as a bolt-on MCCB, it integrates perfectly with Siemens P1, P2, P3, P4, and P5 panelboards. The breaker accepts 8-1 AWG copper wire via the included load-side lugs. Featuring a 65kA interrupting capacity at 240V, it is HACR rated for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD390 |
| Series | BQD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
8 answersCan the BQD390 be installed in a standard residential load center?
No, this is a bolt-on molded case circuit breaker intended strictly for commercial and industrial panelboards like the Siemens P1 through P5 series. It will not fit in plug-on residential EQ or PL load centers.
How is the BQD390 physically connected inside the panel?

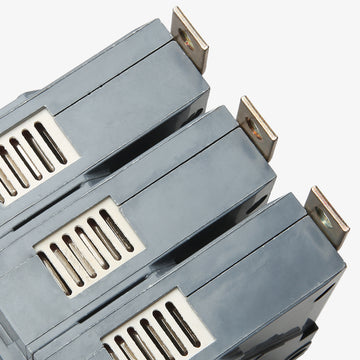

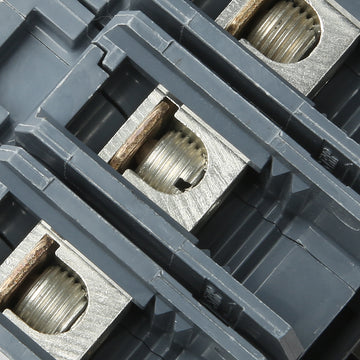

The breaker features a bolt-on connection where the line side securely fastens directly to the panelboard bus. The load side utilizes the integrated mechanical lugs for outgoing branch circuit wiring.
Are the terminal lugs rated for high-temperature wiring?
The standard factory-installed load lugs on the BQD390 are UL listed for use with 60-degree and 75-degree Celsius copper or aluminum conductors.
Can I backfeed or reverse feed the BQD390?
Yes, Siemens BQD frame molded case circuit breakers do not have line and load restrictions and are fully suitable for reverse feed applications.
What is the difference between Siemens BQD and CQD series breakers?
While they share the same physical footprint and internal trip mechanisms, BQD breakers like the BQD390 are designed to bolt directly onto commercial panelboard busbars. The CQD series is the cable-in, cable-out variant designed for independent DIN rail or surface mounting.
What is the Canadian equivalent for the BQD390?
For installations in Canada requiring higher 600Y/347VAC ratings, the BQD6390 is the CSA-certified equivalent. Note that BQD6 models are not UL listed for US applications.
Can this breaker be used as a main breaker in a P1 lighting panel?
Yes, the BQD390 can function as a main breaker in a Siemens P1 panel, but it requires the addition of a specific main breaker mounting kit, such as the MBKBC3, to properly adapt it to the main bus configuration.
Is the trip curve on the BQD390 customizable for specific loads?
No, the breaker uses a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit protections are factory calibrated and non-adjustable.
