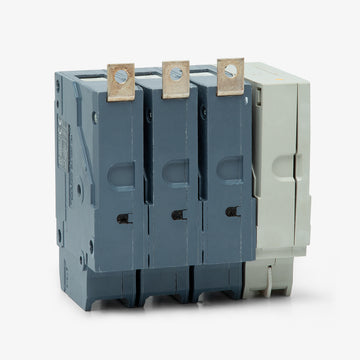

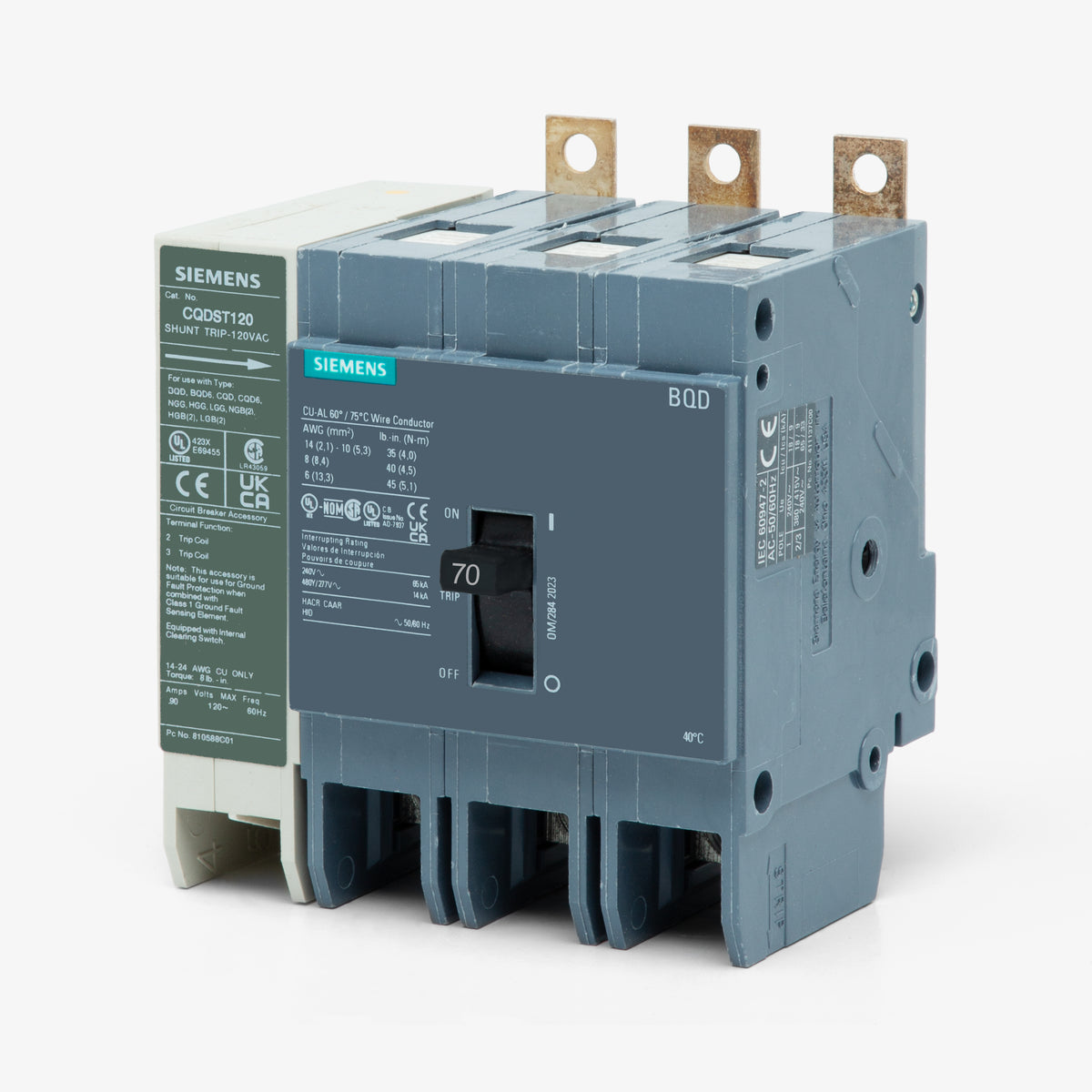

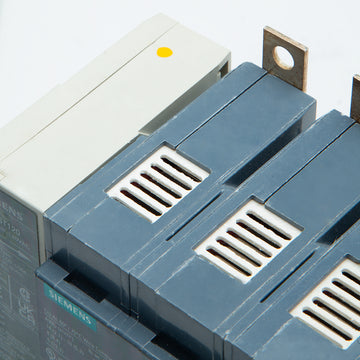

Siemens BQD37000S01 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens
BQD37000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD37000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD37000S01 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial distribution, this 70A thermal-magnetic breaker features a factory-installed 120VAC shunt trip for remote tripping capabilities. Designed to mount into Siemens P1, P2, P3, P4, and P5 panelboards, the bolt-on configuration ensures a secure connection in demanding environments. Delivering a robust 65kAIC interrupting rating at 240VAC, the unit handles substantial fault currents while maintaining HACR certification for HVAC loads.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the BQD37000S01 circuit breaker?
This bolt-on breaker is designed specifically for use in Siemens P1, P2, P3, P4, and P5 series panelboards.
What does the S01 suffix mean on the BQD37000S01 catalog number?
The S01 suffix indicates the breaker comes with a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely for emergency shutdown or control applications.

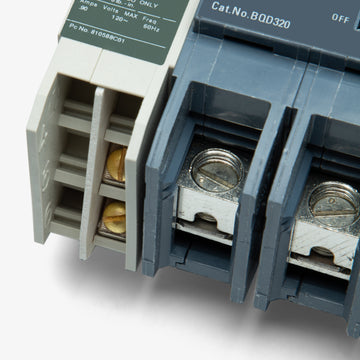

What are the acceptable wire sizes for the lugs on this 70A BQD breaker?
The terminals accommodate 8 AWG to 1 AWG copper conductors, or 6 AWG to 1/0 AWG aluminum conductors.
Can the BQD37000S01 be used in DC applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for use on 125/250VDC systems with a 14kAIC interrupting capacity.
Does this breaker plug in or bolt onto the busbar?
The BQD37000S01 is a bolt-on circuit breaker. It requires a bolted connection to the panelboard bus, providing a secure installation suitable for commercial and industrial environments.
Are the thermal and magnetic trip settings adjustable on the BQD37000S01?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time thermal and instantaneous magnetic trip functions are factory set and non-adjustable.
