Siemens CED62B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
CED62B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
CED62B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

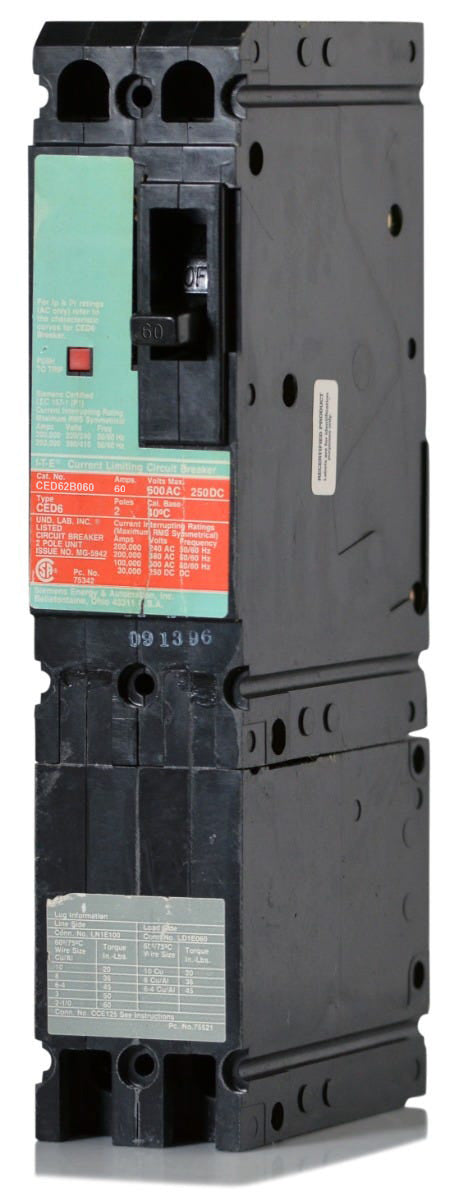

Siemens CED62B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Manufactured by Siemens, this 60A current-limiting MCCB is engineered for demanding commercial and industrial applications. It provides robust protection for electrical distribution systems requiring high fault current mitigation. The CED62B060 features bolt-on mounting for integration into Siemens Sentron panelboards and switchboards. Rated for an exceptional 200kAIC at 480VAC, this ED-frame breaker utilizes fixed thermal-magnetic trip technology to restrict let-through energy.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CED62B060 |
| Series | CED6 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | CED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip |
| Special Features | Current Limiting |
Product FAQs
8 answersWhat type of enclosures or panels is the Siemens CED62B060 compatible with?
This bolt-on breaker is designed for use in Siemens Sentron panelboards and switchboards that are configured to accept ED-frame molded case circuit breakers.
What does the current limiting feature of the CED62B060 do?
As a current limiting breaker, it is designed to clear a fault in less than half a cycle. This significantly reduces the peak let-through current and energy, protecting downstream electrical components from severe thermal and mechanical stress during a short circuit.
How does the CED62B060 differ from standard ED4 or ED6 breakers?
While it shares the same physical footprint as standard ED-frame breakers like the ED4, ED6, or HED4, the CED6 series features a much higher interrupting capacity (200kAIC at 480V) and includes internal current-limiting technology. It is specified where extremely high fault currents are present.
What type of wire can be used with the standard lugs on this breaker?
The factory-installed lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 10 AWG to 1/0 AWG. Ensure you apply the correct torque specifications listed on the breaker label during installation.
Can this breaker be DIN rail mounted?
No, the CED62B060 is a bolt-on molded case circuit breaker. It must be bolted directly to the busbars of a compatible panelboard or switchboard and is not designed for DIN rail or plug-in load center applications.
Is this breaker suitable for direct current (DC) applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for use in DC circuits up to 250VDC, providing an interrupting capacity of 30kA. It is commonly used in industrial DC control or battery systems.
Can I use this 2-pole breaker in a 3-phase panel?
Yes, a 2-pole breaker can be installed in a 3-phase panelboard to feed a single-phase load. It will connect to two of the three available bus phases.
Does this breaker provide GFCI or AFCI protection?
No, this model features standard thermal-magnetic trip functions (Long-Time and Instantaneous) for overload and short-circuit protection. It does not include ground fault or arc fault circuit interruption circuitry.
