Siemens CED62B100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
CED62B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
CED62B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

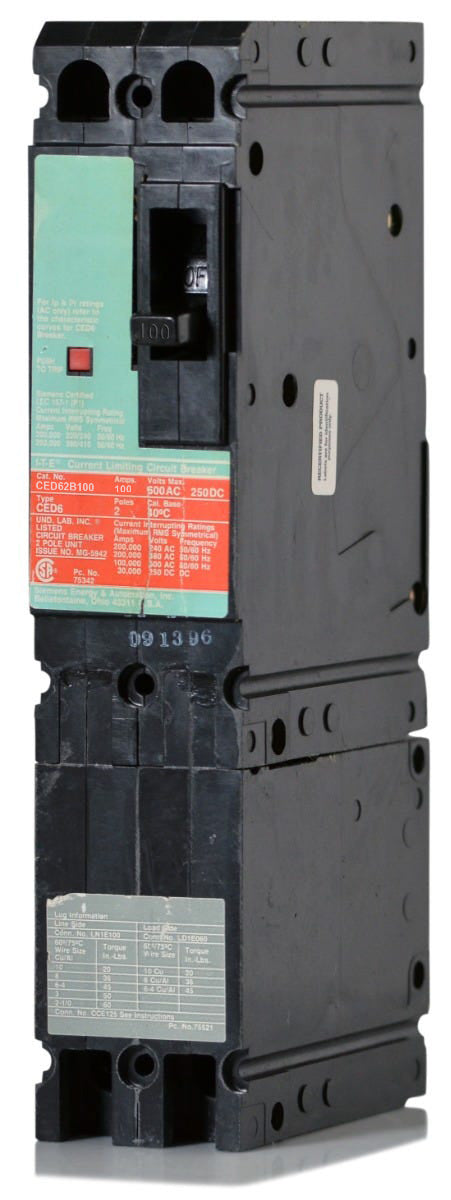

Siemens CED62B100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 100A current-limiting MCCB minimizes let-through energy during short circuits. The two-pole breaker bolts into Siemens Sentron P1, P2, and P3 panelboards. Since the CED6 series is replaced by the 3VA line, this unit serves as an exact-match replacement for existing ED-frame installations without retrofitting. Delivering a massive 200kAIC rating at 480VAC, the CED62B100 relies on proven thermal-magnetic trip technology and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CED62B100 |
| Series | CED6 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | CED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated |
| Special Features | Current Limiting |
Product FAQs
8 answersWhich panelboards are compatible with the CED62B100 circuit breaker?
This bolt-on breaker is designed for use in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the CED62B100 replace a standard ED62B100 breaker?
Yes. The CED62B100 shares the same physical ED frame dimensions and mounting as the ED62B100, making it a direct replacement. However, the CED version offers a significantly higher interrupting rating and current-limiting capabilities.
What does the current-limiting designation mean for the CED62B100?
A current-limiting circuit breaker is designed to quickly interrupt a fault, significantly reducing the peak let-through energy during a short circuit. This provides enhanced protection for downstream electrical components.
What wire sizes are accepted by the lugs on this breaker?
The standard lugs accept copper or aluminum wire ranging from 10 AWG to 1/0 AWG.
Which replacement lug kit is compatible with this breaker?
If replacement lugs are needed, this breaker uses the LN1E100 lug kit for both the line and load sides to accommodate 10 AWG to 1/0 AWG wire.
Is the CED62B100 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can this breaker be used in DC circuits?
Yes, the CED62B100 is rated for DC applications up to 250VDC with an interrupting capacity of 30kA.
What safety precautions should be taken before installing this bolt-on breaker?
Always de-energize the panelboard or switchboard before installation. Verify that power is completely disconnected using a properly rated voltage tester to prevent arc flash and electrical shock hazards.
